Рабочие характеристики

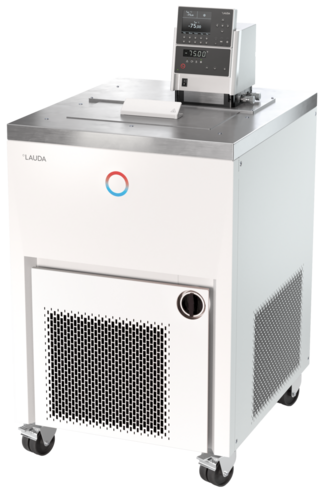

Thermostatic bath/circulator with latest microprocessor technology and integrated cooling system
Input either via cursor keys, numeric soft keys or both. Additional Tmax key for overtemperature
SelfCheck Assistant for system diagnosis
Low level and overtemperature protection for use with non-flammable liquids
Programmer with 150 temperature/time segments that can be separated into 5 programs
Adjustment of bath circulation according to application
SmartCool system for energy-saving digital cooling management including compressor on-off control
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Back-lit graphic LCD display with high resolution and different display modes
Command console can be detached and used as remote control
Fully electronic continuous controller with PID action for internal & external control
Optically decoupled RS 232/485 interface integrated as a standard
Timer function for switching on the thermostat, entering the standyby mode or running of programs
Pump connectors on the side and in the back, installed bypass
Electronically-controlled heating of bath edge and bath bridge prevents moisture in the atmosphere from condensing and freezing at low temperatures
Additional green LED display for temperature
EasyUse system for simple operation of the whole unit
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Option for upgrading with up to 2 interfaces (RS 232/485, Profibus, analogue or contact modules, Ethernet-USB module)
LAUDA Vario pump with 4 selectable output steps
With addional pump for external application (Thread M 30 x 1.5 O)
Condenser cooling Air
Рабочий диапазон
Рабочая температура, мин.
-90 °C
Рабочая температура, макс.
150 °C
Постоянство температурного режима
0.05 ± K
Технические характеристики (согл. DIN 12876)
Диапазон рабочих температур
-90 ... 150 °C
Диапазон температуры окружающей среды
5 ... 40 °C
Постоянство температурного режима
0.05 ± K
Теплопроизводительность, макс.
3.5 kW
Потребляемая мощность, макс.
7 kW
Потребление тока
16 A
Давление нагнетания, макс.
0,9 bar
Расход насоса, макс. (нагнетание)
90 L/min
Объем ванны, мин/макс.
23,0 / 31,0 L
Размеры (Ш × Г × В)
600 x 700 x 1216 mm
Масса
162 kg
Питание от сети
400 V; 3/N/PE; 50 Hz
Сетевая вилка
Сетевой кабель со штекером (IEC 60309, 5-пол., CEE, красный, 16 A)
| Temperatur | Pumpenstufe | Temperiermedium | Kälteleistung 50 Hz |
|---|---|---|---|
| 200 °C | 2 | Thermoöl | 3 kW |
| 20 °C | 2 | Ethanol | 2,9 kW |
| 0 °C | 2 | Ethanol | 2,8 kW |
| -20 °C | 2 | Ethanol | 2,4 kW |
| -30 °C | 2 | Ethanol | 2,2 kW |
| -40 °C | 2 | Ethanol | 1,9 kW |
| -50 °C | 2 | Ethanol | 1,5 kW |
| -60 °C | 2 | Ethanol | 1,2 kW |
| -70 °C | 2 | Ethanol | 0,7 kW |
| -80 °C | 2 | Ethanol | 0,4 kW |
| -90 °C | 2 | Ethanol | 0,05 kW |
