Ultracool UC 65

LAUDA Ultracool circulation chillers provide precise temperature control in an extended operating temperature range from -10 to 35 °C and a temperature stability of ±0.5 K. The protection class IP 54 enables outdoor installation, a standard fan control enables operation at ambient temperatures down to -15 °C and reduces noise pollution. LAUDA has been able to reduce the footprint even further compared to comparable previous models. The circulation chillers have an Ethernet interface as standard and can be adapted to any customer-specific requirement thanks to numerous options such as speed-controlled pumps or flow meters.

Order no.: L002949

Features

Highly efficient industrial chiller
Electronic 2-point temperature control
Integrated water filter
Operates with non flammable liquids (water,water/glycol)
Reinforced pump in stainless steel
LCD remote control with 5 m cable
Protection level IP 54 (for outdoor installation)
Integrated Ethernet interface
Meeting the energy efficiency requirements of the EcoDesign directive 2009/125/EC
Operation possible via web server
Industrial block pump with high pressure and high flow rate
Inlet and outlet water connections in stainless steel
Condenser cooling Air

Working range

Working temperature min.

-10 °C

Max. working temperature

35 °C

Temperature stability

0.5 ± K

Technical data (according to DIN 12876)

Working temperature range
-10 ... 35 °C
Ambient temperature range
-15 ... 50 °C
Temperature stability
0.5 ± K
Max. filling volume
210 L
Max. discharge pressure
6,9 bar
Max. pump flow pressure
367 L/min
Nominal pump flow rate
196 L/min
In / Outlet connection thread (inside)
Rp 1 1/2
Dimensions (WxDxH)
1040 x 1435 x 1890 mm
weight_PIM
461 kg
Noise level
69.5 dB(A)
Power supply
400 V; 3/PE; 50 Hz
Power plug
---
TemperatureCooling capacity 50 Hz
25 °C87.5 kW
20 °C85.2 kW
15 °C77.4 kW
10 °C66.9 kW
5 °C57.3 kW
0 °C47.8 kW
-5 °C40.1 kW
-10 °C33.3 kW

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Chapter Circulation chillers
Overall brochure
Circulation chillers Brochure
English
PDF 1,59 MB Download document Download document
Ultracool New Generation Circulation chillers Brochure
English
PDF 2,55 MB Download document Download document
Ultracool New Generation Circulation chillers Operating instruction
English
PDF 1,87 MB Download document Download document
UKCA Declaration Ultracool New Generation Circulation chillers Certificate
English
PDF 62,23 kB Download document Download document
EC Declaration Ultracool Mini New Generation Circulation chillers Certificate
English
PDF 58,88 kB Download document Download document
EC Declaration Ultracool Midi and Maxi New Generation Circulation chillers Certificate
English
PDF 120,66 kB Download document Download document
Ultracool New Generation Supplement Circulation chillers Brochure
English
PDF 579,32 kB Download document Download document
Constant temperature solutions for the hydrogen industry Circulation chillers Brochure
English
PDF 2,79 MB Download document Download document
SEPR Certificate UC2 Circulation chillers Certificate
English
PDF 63,69 kB Download document Download document
SEPR Certificate UC4 Circulation chillers Certificate
English
PDF 63,69 kB Download document Download document
SEPR Certificate UC8 Circulation chillers Certificate
English
PDF 777,68 kB Download document Download document
SEPR Certificate UC14 Circulation chillers Certificate
English
PDF 198,46 kB Download document Download document
SEPR Certificate UC24 Circulation chillers Certificate
English
PDF 198,25 kB Download document Download document
SEPR Certificate UC50 Circulation chillers Certificate
English
PDF 198,46 kB Download document Download document
SEPR Certificate UC65 Circulation chillers Certificate
English
PDF 198,44 kB Download document Download document
SEPR Certificate UC80 Circulation chillers Certificate
English
PDF 63,52 kB Download document Download document
SEPR Certificate UC100 Circulation chillers Certificate
English
PDF 63,52 kB Download document Download document

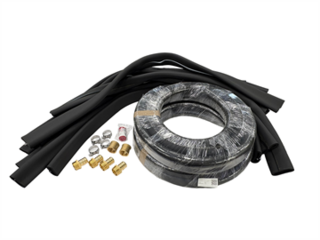

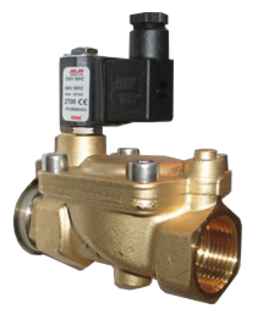

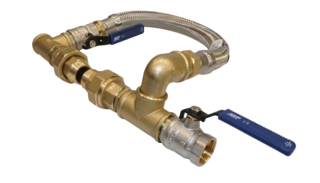

Accessories
