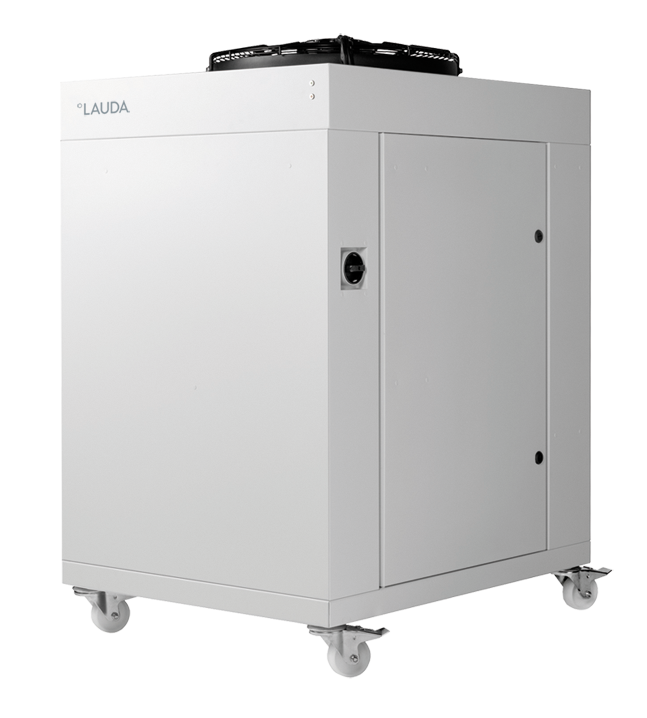

Ultracool UC 24 W

LAUDA Ultracool circulation chillers provide precise temperature control in an extended operating temperature range from -10 to 35 °C and a temperature stability of ±0.5 K. The protection class IP 54 enables outdoor installation, a standard fan control enables operation at ambient temperatures down to -15 °C and reduces noise pollution. LAUDA has been able to reduce the footprint even further compared to comparable previous models. The circulation chillers have an Ethernet interface as standard and can be adapted to any customer-specific requirement thanks to numerous options such as speed-controlled pumps or flow meters.

Order no.: L003289

Features

Highly efficient industrial chiller
Electronic 2-point temperature control
Integrated water filter
Operates with non flammable liquids (water,water/glycol)
Reinforced pump in stainless steel
LCD remote control with 5 m cable
Protection level IP 54 (for outdoor installation)
Integrated Ethernet interface
Meeting the energy efficiency requirements of the EcoDesign directive 2009/125/EC
Water cooled version (W)
Operation possible via web server
Industrial block pump with high pressure and high flow rate
Inlet and outlet water connections in stainless steel
Condenser cooling Water

Working range

Working temperature min.

-10 °C

Max. working temperature

35 °C

Temperature stability

0.5 ± K

Technical data (according to DIN 12876)

Working temperature range
-10 ... 35 °C
Ambient temperature range
-15 ... 50 °C
Temperature stability
0.5 ± K
Max. filling volume
35 L
Max. discharge pressure
5,8 bar
Max. pump flow pressure
166 L/min
Nominal pump flow rate
84.1 L/min
In / Outlet connection thread (inside)
Rp 1
Water Cooling Connection Thread Inside
Rp 1
Dimensions (WxDxH)
720 x 910 x 1250 mm
weight_PIM
180 kg
Power supply
400 V; 3/PE; 50 Hz
Power plug
---
TemperatureCooling capacity 50 Hz
25 °C34 kW
20 °C30.9 kW
15 °C28.1 kW
10 °C24.3 kW
5 °C20.8 kW
0 °C17.3 kW
-5 °C14.5 kW
-10 °C12 kW
