Working range
LAUDA Ultratemp process thermostats enable exact regulation to an external temperature within a range of −5 to 60 °C. Their high temperature stability of ±0.5 K guarantees a precise temperature in the application. The water-cooled design minimizes the heat emitted to the environment. Use with the non-flammable liquids water or water-glycol provides easy handling and low operating costs.
Working temperature min.
-5 °C
Max. working temperature
60 °C
Temperature stability
0.5 ± K
Product lines
Select up to 4 technical parameters that you want to display in the table
| Product | Min. temperature range | Max. working temp | Heating output | Integrated interfaces | Compare product | |
|---|---|---|---|---|---|---|
| Ultratemp UT 2505 W | -5 °C | 60 °C | 35 kW | Details | ||
| Ultratemp UT 3505 W | -5 °C | 60 °C | 35 kW | Details | ||
| Ultratemp UT 5005 W | -5 °C | 60 °C | 50 kW | Details |
Device dimensions
1138 x 1728 x 1722 mm

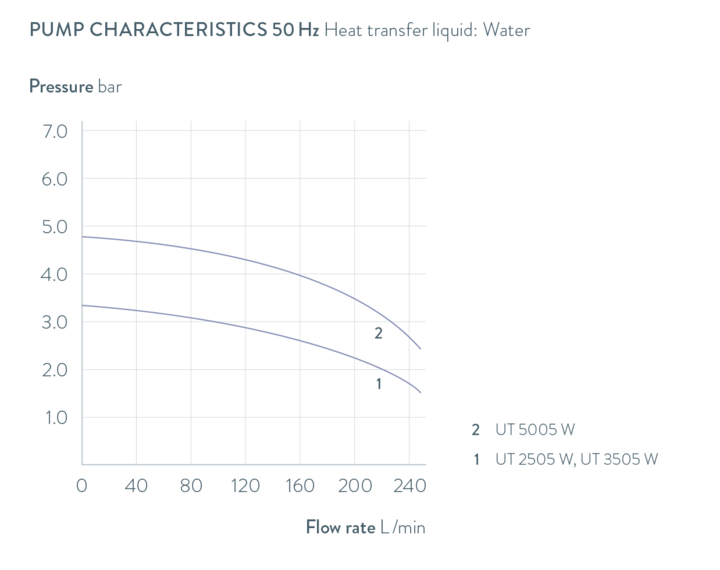

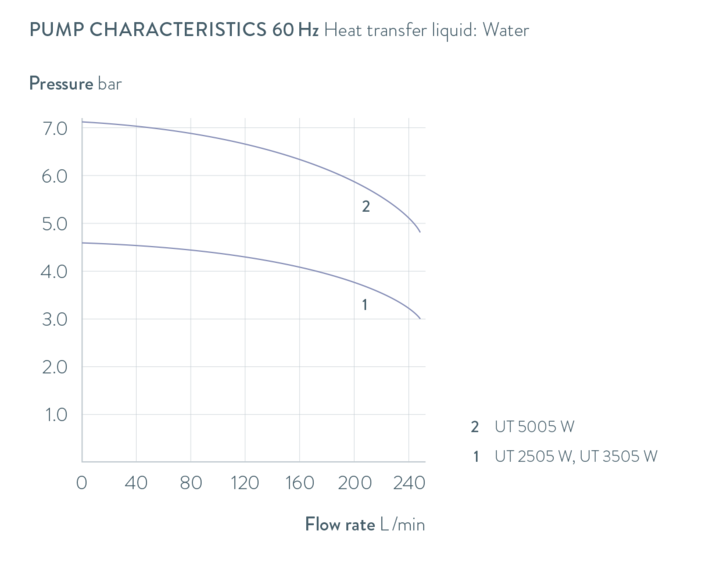

Characteristics
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
| Ultratemp | Process thermostats | Brochure |
English
|
1,39 MB |
Download document
|
|
| Ultratemp | Process thermostats | Operating instruction |
English
|
1,53 MB |
Download document
|
Accessories
Please use the LAUDA accessories finder for additional accessories.
