Alpha Cooling thermostats
Affordable cooling thermostats for maintaining temperatures from -25 to 100 °C in the lab
Request advising
Back to overview Cooling thermostats

Affordable low-temperature thermostats for temperature control from -25 to 100°C in the lab

The most affordable choice for high-quality LAUDA thermostats. LAUDA Alpha offers reliable technology and state-of-the-art design for temperature ranges from -25 bis 100 °C.

This product line is suitable for internal and external temperature control with non-flammable liquids (water and water/glycol).

The thermostats are the perfect solution for most basic temperature control applications in the lab. Reduced to the most essential functions, this affordable product line will win you over with its reliability and user-friendliness.

Overview

Benefits and added value

  • Stainless steel bath vessels
  • Drain connection at the rear
  • Pump connections, bath cover, short-circuit hose for pump connections as standard equipment
  • Racks and hoses as accessories

Working range

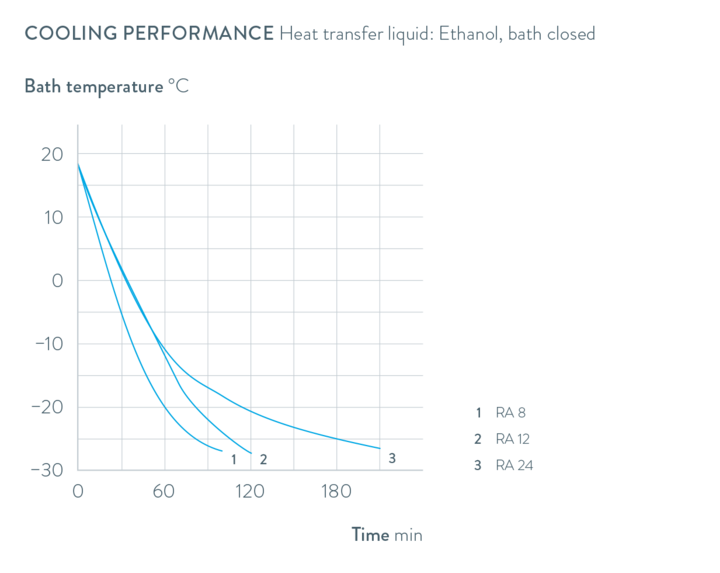

The cooling thermostats RA 8, RA 12 and RA 24, including standard-issue bath covers and pump connections, facilitate cooling across the entire temperature range from -25 to 100°C. Automatic compressor control extends the service life of the compressor and offers savings on operation costs.

Working temperature min.

Working temperature min.

-25 °C

Max. working temperature

Max. working temperature

100 °C

Temperature stability

Temperature stability

0.05 ± K

Product lines



Select up to 4 technical parameters that you want to display in the table

ProductMin. temperature rangeMax. working tempHeating outputCooling output at 20 °C 50 HzCompare product
Alpha RA 8 -25 °C 100 °C 1.5 kW 0.225 kW Details
Alpha RA 12 -25 °C 100 °C 1.5 kW 0.325 kW Details
Alpha RA 24 -25 °C 100 °C 1.5 kW 0.425 kW Details

Device dimensions

415 x 605 x 605 mm

Alpha RA 24

365 x 500 x 605 mm

Alpha RA 12

235 x 500 x 605 mm

Alpha RA 8

Characteristics
