Alpha A 12

The heating thermostats A 6, A 12 and A 24 work in the temperature range between 25 and 100°C. Cooling coil, pump circulation set and bath cover set are available as accessories for all thermostats.

Order no.: L000620
Inquire about product
Back to overview Heating thermostats

Features

Thermostatic bath with simplest operation
Fully electronic continuous controller
Circulating pump with flow reduction
1-line LED display for display of actual or set temperature
Low level and overtemperature protection for use with non-flammable liquids
Bath from deep-drawn stainless steel
User-friendly menu guidance with simplest 3-key operation
Acoustic and visual alarm
Optional cooling coil and pump circulation set available

Working range

Working temperature min.

25 °C

Max. working temperature

100 °C

Temperature stability

0.05 ± K

Technical data (according to DIN 12876)

Working temperature range
25 ... 100 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Heater power max.
1.5 kW
Max. power consumption
1.5 kW
Power consumption
7 A
Max. discharge pressure
0,2 bar
Max. pump flow pressure
15 L/min
Min. / max. bath volume
8.0 / 12.0 L
Dimensions (WxDxH)
270 x 332 x 420 mm
weight_PIM
8 kg
Power supply
220 V; 60 Hz / 230 V; 50 Hz
Power plug
Power cord with angled plug (CEE7/7)
Download Data sheet Alpha A 12

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Chapter Cooling thermostats
Overall brochure 		Bath thermostats Brochure
English
PDF 2,6 MB Download document Download document
Chapter Heating thermostats
Overall brochure 		Bath thermostats Brochure
English
PDF 3,35 MB Download document Download document
Alpha (new design) Immersion thermostats Operating instruction
English
PDF 2,53 MB Download document Download document
Alpha (new design) Bath thermostats Operating instruction
English
PDF 2,53 MB Download document Download document
Alpha Immersion thermostats Operating instruction
English
PDF 1,17 MB Download document Download document
Alpha Bath thermostats Operating instruction
English
PDF 1,17 MB Download document Download document

Accessories

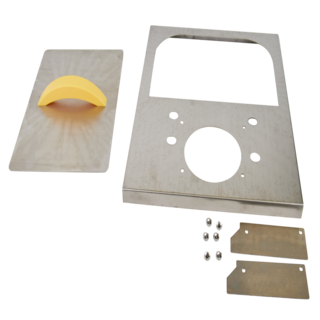

Bath cover set Alpha A 12
Bath cover set Alpha A 12
Cooling coil Alpha
Cooling coil Alpha
Pump set Alpha
Pump set Alpha
Please use the LAUDA accessories finder for additional accessories.
