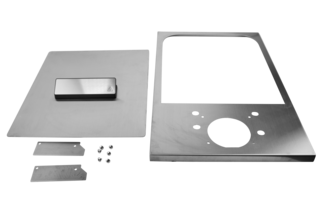

Bath cover set Alpha A 24
Features
Thermostatic bath with simplest operation
Fully electronic continuous controller
Circulating pump with flow reduction
1-line LED display for display of actual or set temperature
Low level and overtemperature protection for use with non-flammable liquids
Bath from deep-drawn stainless steel
User-friendly menu guidance with simplest 3-key operation
Acoustic and visual alarm
Optional cooling coil and pump circulation set available
Working range
Working temperature min.
25 °C
Max. working temperature
100 °C
Temperature stability
0.05 ± K
Technical data (according to DIN 12876)
Working temperature range
25 ... 100 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Heater power max.
1.5 kW
Max. power consumption
1.5 kW
Power consumption
7 A
Max. discharge pressure
0,2 bar
Max. pump flow pressure
15 L/min
Min. / max. bath volume
18.0 / 25.0 L
Dimensions (WxDxH)
332 x 535 x 420 mm
weight_PIM
11 kg
Power supply
220 V; 60 Hz / 230 V; 50 Hz
Power plug
Power cord with angled plug (CEE7/7)
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
|
Chapter Cooling thermostats Overall brochure | Bath thermostats | Brochure |
English
| 2,6 MB |
Download document
| |
|
Chapter Heating thermostats Overall brochure | Bath thermostats | Brochure |
English
| 3,35 MB |
Download document
| |
| Alpha (new design) | Immersion thermostats | Operating instruction |
English
| 2,53 MB |
Download document
| |
| Alpha (new design) | Bath thermostats | Operating instruction |
English
| 2,53 MB |
Download document
| |
| Alpha | Immersion thermostats | Operating instruction |
English
| 1,17 MB |
Download document
| |
| Alpha | Bath thermostats | Operating instruction |
English
| 1,17 MB |
Download document
|
Accessories
Please use the LAUDA accessories finder for additional accessories.
