Solenoid valve cooling via LiBus
Features

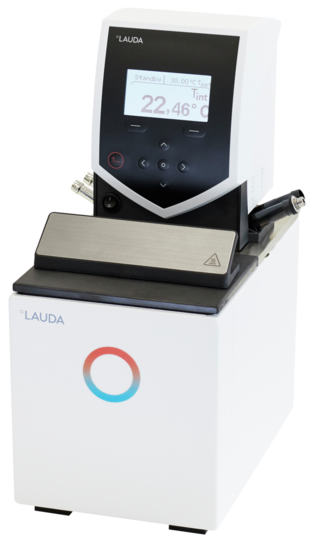

Thermostatic bath/circulator with latest microprocessor technology
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Pump connectors with plastic nipples 13 mm as standard
Monochrome grafic LCD display for simultaneous indication of actual and set value
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Bath vessel made from stainless steel with drain valve
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Integrated programmer, 1 programme with max. 20 segments
Cooling coil as standard
Working range
Working temperature min.
20 °C
Max. working temperature
200 °C
Temperature stability
0.01 ± K
Technical data (according to DIN 12876)
Working temperature range
20 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Heater power max.
1.8 kW
Max. power consumption
2.1 kW
Power consumption
9 A
Max. discharge pressure
0,6 bar
Max. pump flow pressure
22 L/min
Min. / max. bath volume
3.0 / 3.5 L
Dimensions (WxDxH)
168 x 272 x 376 mm
weight_PIM
6 kg
Power supply
220 V; 60 Hz
Power plug
Power cord with plug (NEMA 6-20P)
