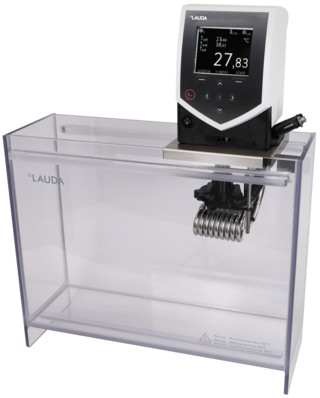

Cooling coil set for ECO ET 15 X
Features
Thermostatic bath/circulator with latest microprocessor technology
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Pump connectors with metal connectors, thread M 16 x 1 as standard
Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Transparent bath made from polycarbonate
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Programmer with 150 temperature/time segments that can be separated into 5 programs
Working range
Working temperature min.
20 °C
Max. working temperature
100 °C
Temperature stability
0.01 ± K
Technical data (according to DIN 12876)
Working temperature range
20 ... 100 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Max. discharge pressure
0,6 bar
Max. pump flow pressure
22 L/min
Min. / max. bath volume
13.5 / 15.0 L
Dimensions (WxDxH)
428 x 148 x 532 mm
weight_PIM
7 kg
Power supply
230 V; 50/60 Hz
Power plug
Power cord with angled plug (BS1363)
