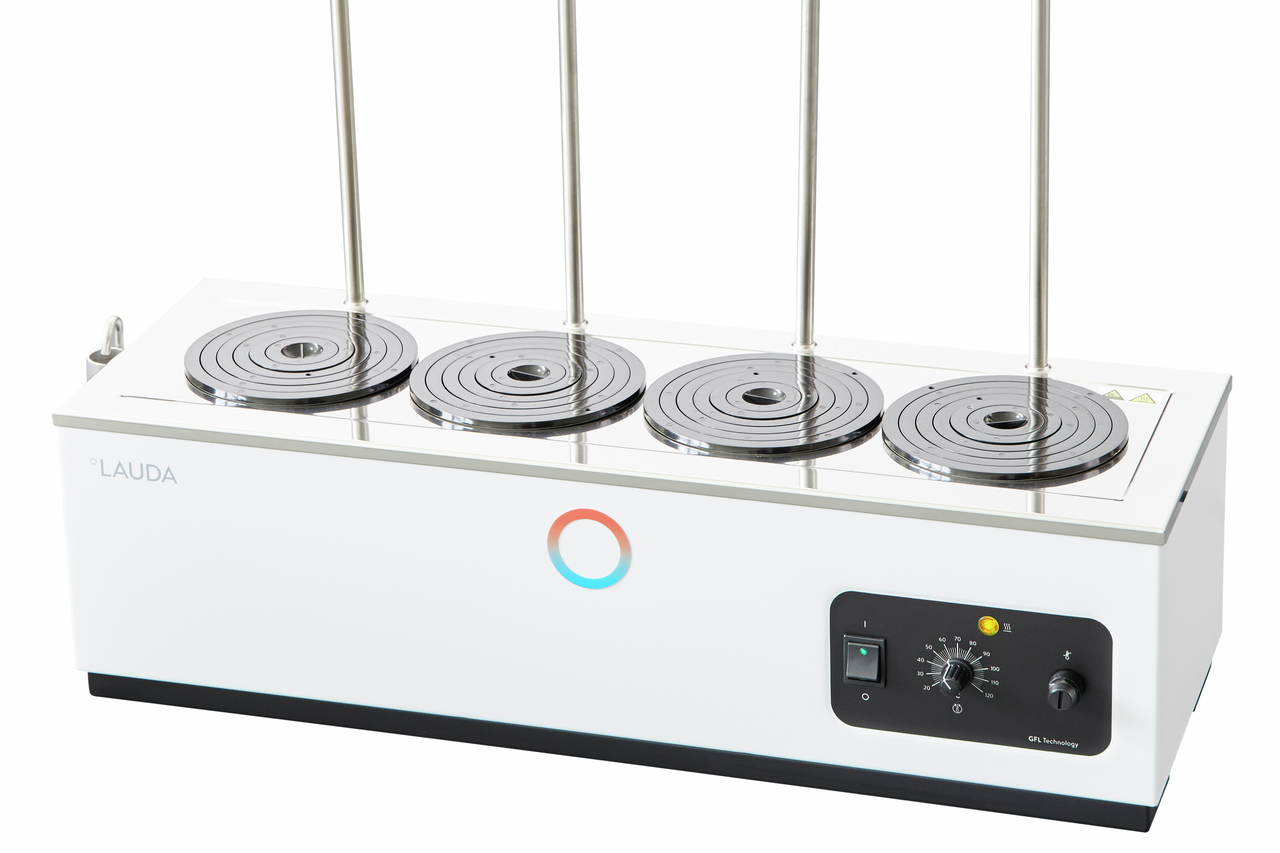

Stainless steel support rod
Features
Vaporization water bath for gentle steaming work
Water deficiency protection
The cover frame and the multi-part ring set are removable.
Temperature adjustment via rotary knob with temperature scale
Adjustable water level regulator, sieve bottom and ring set as standard
Multi-piece ring set made of heat-resistant plastic
1-point temperature controller
Bath interior, cover, sieve plate and heating element are made of stainless steel.
An internal hole is provided on the cover frame to accommodate stand rods.
Working range
Working temperature min.
25 °C
Max. working temperature
100 °C
Temperature stability
3 ± K
Technical data (according to DIN 12876)
Working temperature range
25 ... 100 °C
Ambient temperature range
10 ... 40 °C
Temperature stability
3 ± K
Heater power max.
1 kW
Max. power consumption
1 kW
Power consumption
16 A
Size of bath (Ø)
192 mm
Number of bath openings
1
Dimensions (WxDxH)
342 x 400 x 180 mm
weight_PIM
9 kg
Power supply
230 V; 50/60 Hz
Power plug
Power cord with plug (NBR 14136)
