Calibration and adjustment of temperatures from -40 to 300°C with LAUDA calibration thermostats
High-performance comprehensive solution for calibration and adjustment. Constant temperature and homogeneity when calibrating and adjusting in the test chamber - that's what LAUDA calibration thermostats provide.
Depending on the desired size, bath opening and usable depth, different types are available to choose from – each having variable testing chambers, as well as a comprehensive range of products and accessories.
On request, the Proline calibration thermostats enable a temperature range of at least -40 to 300 °C. The Command operating unit is easy and intuitive to use and it can be detached so that it can be used as a remote control.
Overview
Benefits and added value
-
Insulated stainless steel bath vessels with handles and drain tap
-

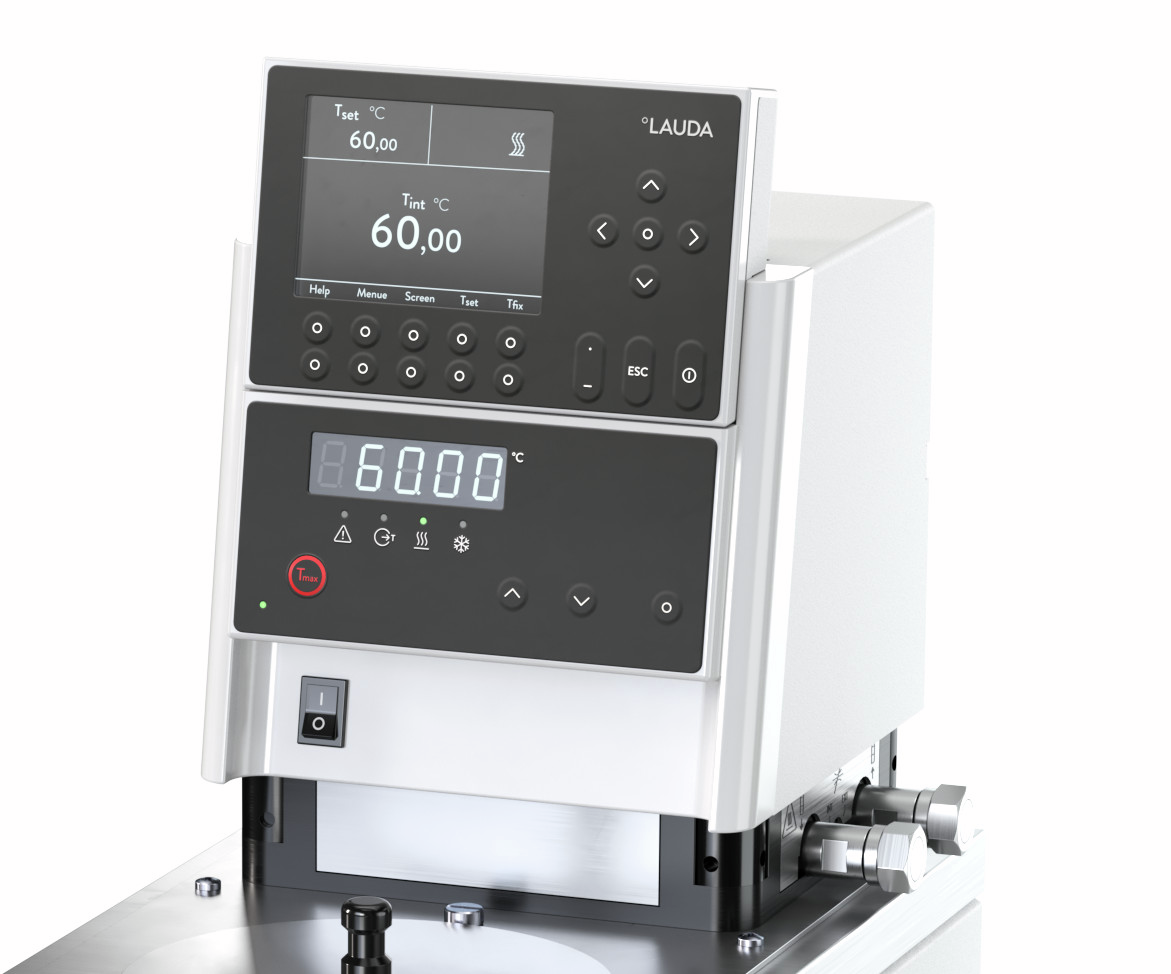

Two different control heads to choose from: Master with LED display or detachable Command operating unit with graphic LCD display
-
Internal Vario pump with 8 selectable output levels
-
PowerAdapt system for optimally adapted max. heating output without influencing the mains power supply
![](/fileadmin/_processed_/a/a/csm_LAUDA_Proline_PJ12C_Kalibrierthermostat_1967758698.png)
Working range

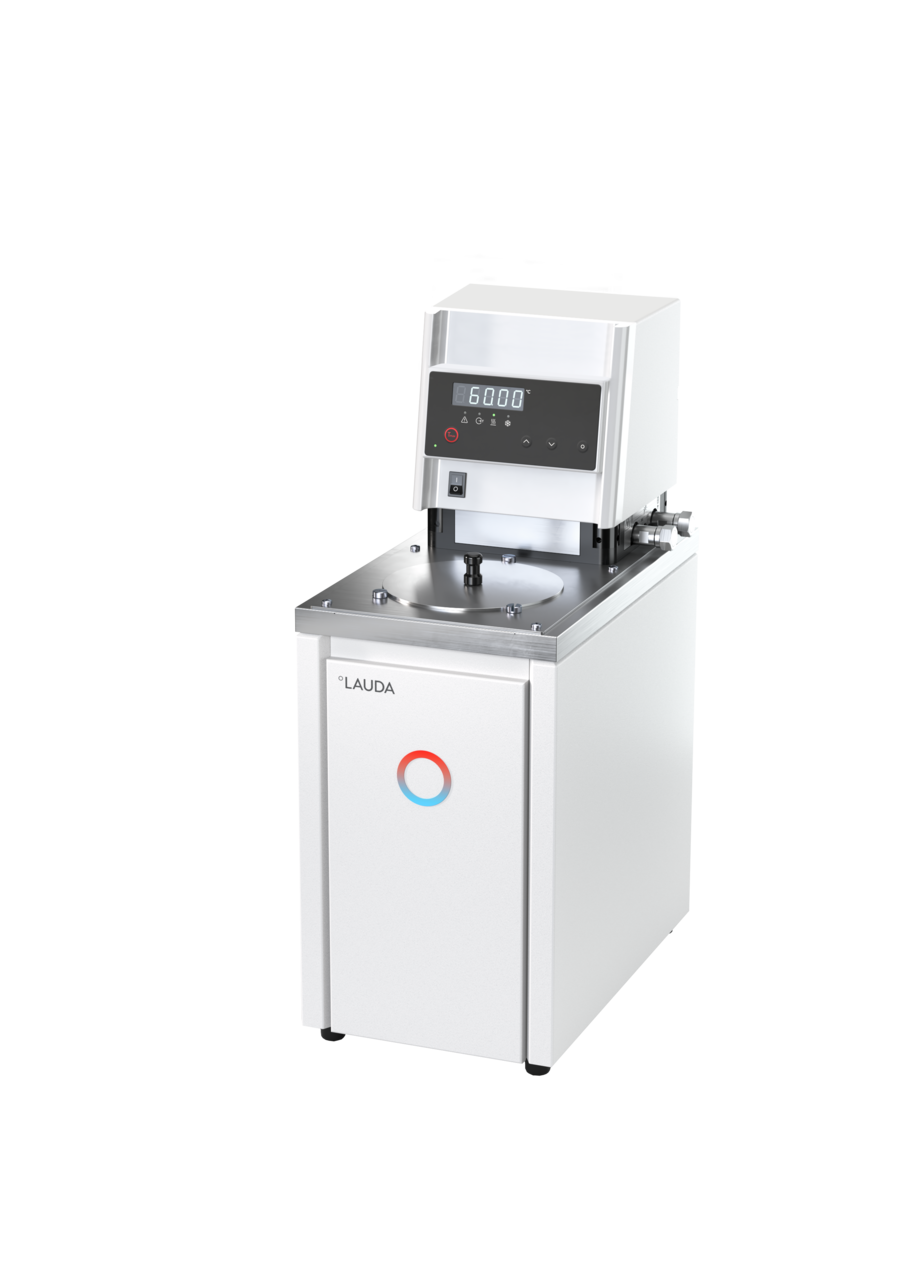

For maximum temperatures up to 300 ºC, the compact models of the LAUDA Proline PJ 12 and PJ 12 C can be used, which can also be specially operated to -40°C, together with a LAUDA circulation chiller.
![Min. working temperature](/pim/image/L001926/icon-produkt-arbeitstemperatur-min.png)
Min. working temperature
30 °C
![Max. working temperature](/pim/image/L001926/icon-produkt-arbeitstemperatur-max.png)
Max. working temperature
200 °C
![Temperature stability](/pim/image/L001926/icon-produkt-temperaturkonstanz.png)
Temperature stability
0.01 ± K
Product lines
Select up to 4 technical parameters that you want to display in the table
Product | Min. working temp | Max. working temp | Heater power max. | Integrated interfaces | Compare product | |
---|---|---|---|---|---|---|
Proline PJ 12 | 30 °C | 300 °C | 3.6 kW | No | Details | |
Proline PJ 12 C | 30 °C | 300 °C | 3.6 kW | RS 232/485 | Details | |
Proline PJL 12 | 30 °C | 200 °C | 3.6 kW | No | Details | |
Proline PJL 12 C | 30 °C | 200 °C | 3.6 kW | RS 232/485 | Details |
Device dimensions
Characteristics
![](/pim/_processed_/c/d/csm_AHK_Proline_Ecoline_Kalibrier_EN_171003_final_39c0e555b9.png)
Downloads - general product data
Device | Device category | Document type | Language | Format | File size | |
---|---|---|---|---|---|---|
Proline Calibration thermostats |
Special devices | Operating instructions |
|
3,93 MB |
|
|
Ecoline Calibration thermostats |
Special devices | Operating instructions |
|
3,93 MB |
|
|
ECO Gold Calibration thermostat |
Special devices | Operating instructions |
|
3,93 MB |
|
