Features
Thermostatic circulator with latest microprocessor technology. Integrated cooling system
Operation with Cursor- and Softkeys
Command console can be detached and used as remote control
Bath vessel made of stainless steel (insulated, with overflow and drain tap)
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Utilizes natural refrigerants
Bright and high-contrast graphic OLED display
EasyUse system for simple operation of the whole unit
Tower design with small footprint
LAUDA Varioflex pump (pressure/suction) with 8 selectable levels, connections rear
Fully electronic continuous controller with PID action for internal & external control
SmartCool system for energy-saving digital cooling management including compressor on-off control
Integrated programmer, 1 programme with max. 20 segments
SelfCheck Assistant for system diagnosis
Low filling volume enables rapid changes in temperature

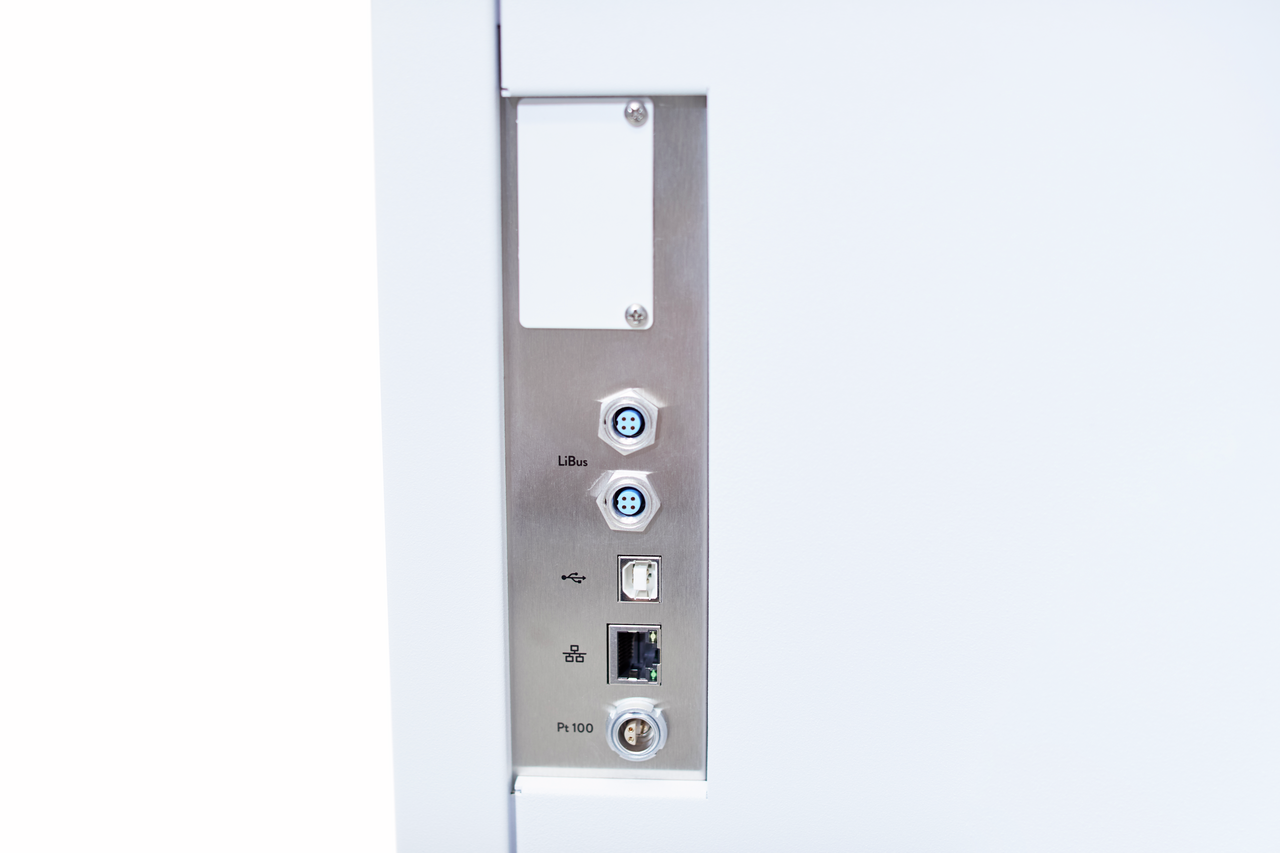

USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Hybrid cooling system: (heat removal complementary with cooling water)
Working range
Working temperature min.
-40 °C
Max. working temperature
200 °C
Temperature stability
0.05 ± K
Technical data (according to DIN 12876)
Working temperature range
-40 ... 200 °C
Operating temperature range
-40 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Heater power max.
2.5 kW
Max. power consumption
3.7 kW
Power consumption
16 A
Max. discharge pressure
0,7 bar
Pump_suction
0,4 bar
Max. pump flow pressure
22 L/min
In / Outlet connection thread (outside)
M16 x 1
In / Outlet Ø olives
13 mm
Min. filling volume
2.4 L
Max. filling volume
4.4 L
Dimensions (WxDxH)
300 x 430 x 675 mm
weight_PIM
42 kg
Power supply
230 V; 50 Hz
Power plug
Power cord with angled plug (CEE7/7)
| Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz |
|---|---|---|---|
| 20 °C | 8 | Ethanol | 0.6 kW |
| 10 °C | 8 | Ethanol | 0.6 kW |
| 0 °C | 8 | Ethanol | 0.6 kW |
| -10 °C | 8 | Ethanol | 0.41 kW |
| -20 °C | 4 | Ethanol | 0.24 kW |
| -30 °C | 4 | Ethanol | 0.12 kW |
| -35 °C | 4 | Ethanol | 0.07 kW |
| -40 °C | 2 | Ethanol | 0.02 kW |
