Features
Thermostatic bath with latest microprocessor technology. Integrated cooling system

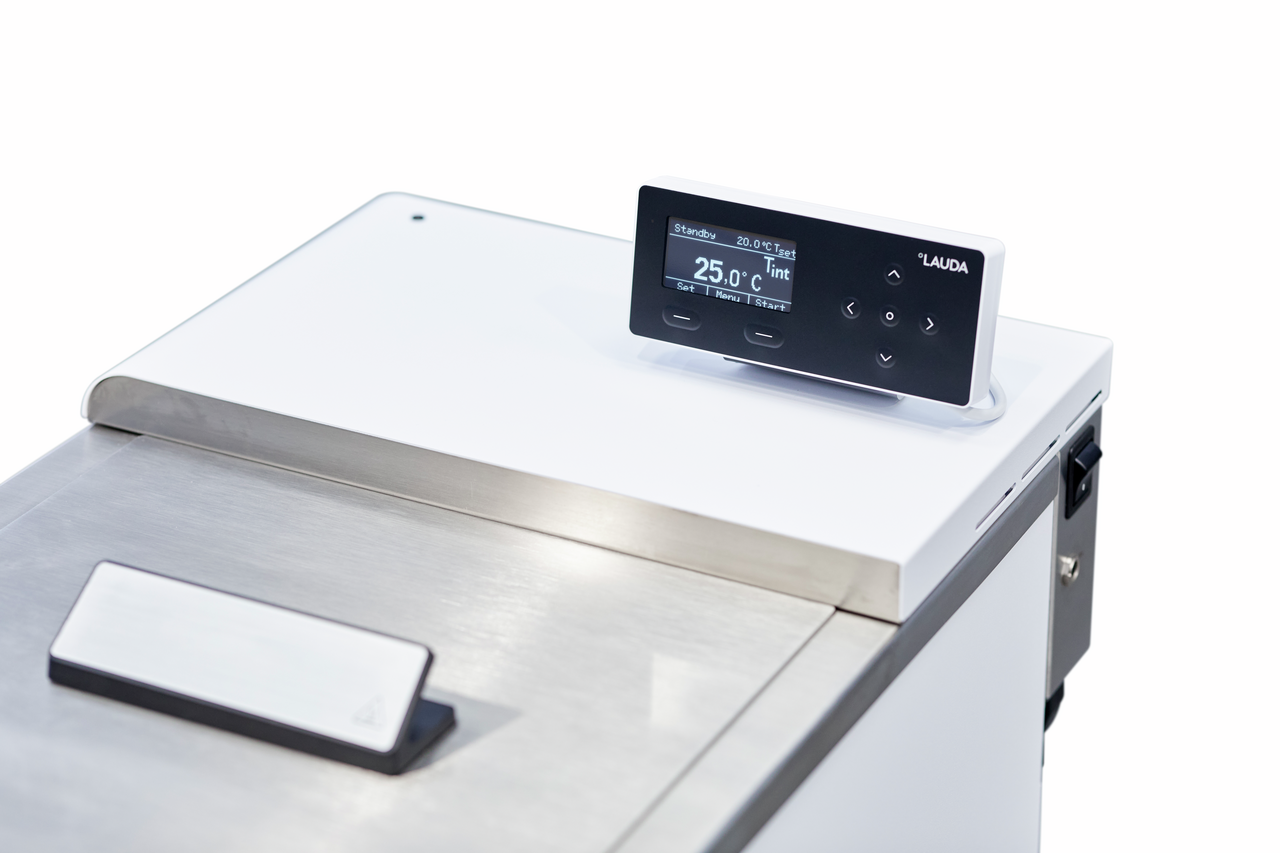

360° turnable and detachable control panel for remote control
SelfCheck Assistant for system diagnosis
Fully electronic continuous controller with PID action for internal & external control
Low height of appliance when control panel removed
Internal LAUDA Varioflex pump with 8 selectable levels
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Bright and high-contrast graphic OLED display
EasyUse system for simple operation of the whole unit
USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Significantly enlarged accessible volume
SmartCool system for energy-saving digital cooling management including compressor on-off control
Operation with Cursor- and Softkeys
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Integrated programmer, 1 programme with max. 20 segments
Bath vessel made of stainless steel (insulated, with handles and drain tap)
Hybrid cooling system: (heat removal complementary with cooling water)
Working range
Working temperature min.
-40 °C
Max. working temperature
200 °C
Temperature stability
0.01 ± K
Technical data (according to DIN 12876)
Working temperature range
-40 ... 200 °C
Operating temperature range
-40 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Heater power max.
3.6 kW
Max. power consumption
3.7 kW
Power consumption
16 A

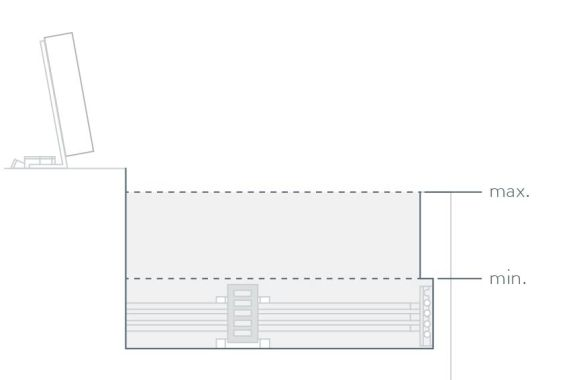

Min. / max. bath volume
12.5 / 21.0 L
Dimensions (WxDxH)
400 x 565 x 680 mm
weight_PIM
52 kg
Power supply
230 V; 50 Hz
Power plug
Power cord with plug (GB2099, 15934)
| Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz |
|---|---|---|---|
| 20 °C | 8 | Ethanol | 0.8 kW |
| 10 °C | 8 | Ethanol | 0.8 kW |
| 0 °C | 8 | Ethanol | 0.8 kW |
| -10 °C | 8 | Ethanol | 0.6 kW |
| -20 °C | 4 | Ethanol | 0.4 kW |
| -30 °C | 4 | Ethanol | 0.19 kW |
| -35 °C | 4 | Ethanol | 0.11 kW |
| -40 °C | 4 | Ethanol | 0.06 kW |
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
| PRO with Command Touch remote control unit | Bath thermostats | Operating instruction |
English
|
4,53 MB |
Download document
|
|
| PRO with Command Touch remote control unit | Circulation thermostats | Operating instruction |
English
|
4,53 MB |
Download document
|
|
| PRO with Base remote control unit | Bath thermostats | Operating instruction |
English
|
3,86 MB |
Download document
|
|
| PRO with Base remote control unit | Circulation thermostats | Operating instruction |
English
|
3,86 MB |
Download document
|
|
| Supplementary pump | Accessories | Operating instruction |
English
|
1,26 MB |
Download document
|
|
|
Chapter Cooling thermostats Overall brochure |
Bath thermostats | Brochure |
English
|
2,6 MB |
Download document
|
|
|
Chapter Heating thermostats Overall brochure |
Bath thermostats | Brochure |
English
|
3,35 MB |
Download document
|
|
|
Chapter Circulation and process thermostats Overall brochure |
Circulation thermostats | Brochure |
English
|
4,84 MB |
Download document
|
|
| Shut Down Valve LiBus | Accessories | Operating instruction |
English
|
567 kB |
Download document
|
|
| Operating unit Command Touch | Accessories | Operating instruction |
English
|
1,75 MB |
Download document
|
