Features
Thermostatic bath with latest microprocessor technology. Installed cooling coil
360° turnable and detachable control panel for remote control
Timer und count-down-function
SelfCheck Assistant for system diagnosis
Fully electronic continuous controller with PID action for internal & external control
Low height of appliance when control panel removed
Internal LAUDA Varioflex pump with 8 selectable levels
Large 5,7" Multi-Touch-Color display
User administration for up to 20 user
EasyUse system for simple operation of the whole unit
USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Significantly enlarged accessible volume
Operation with multi touch display
Data in- and export via USB

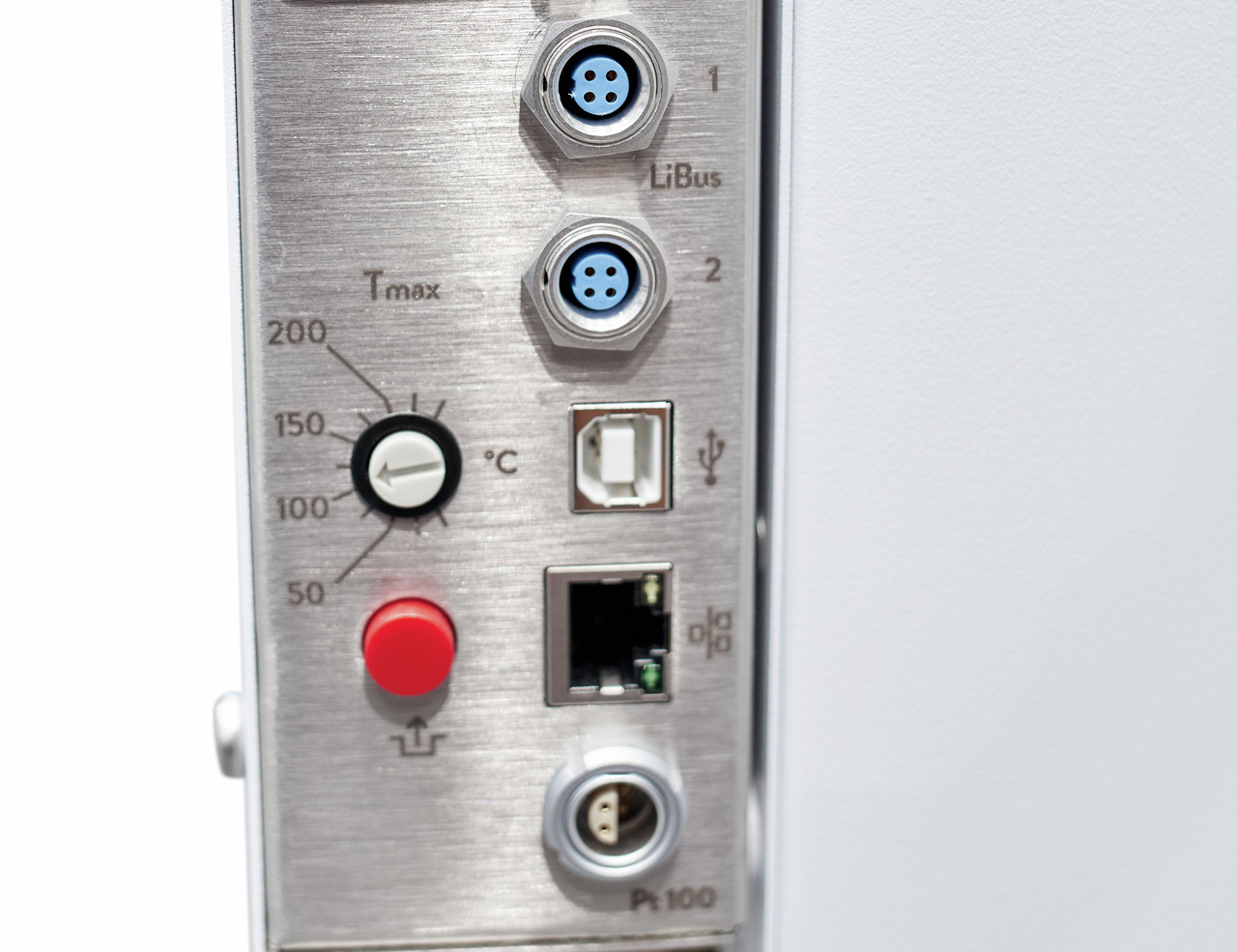

Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Programmer with up to 100 programs, up to 50 segments each
Bath vessel made of stainless steel (insulated, with handles and drain tap)
Working range
Working temperature min.
40 °C
Max. working temperature
250 °C
Temperature stability
0.01 ± K
Technical data (according to DIN 12876)
Working temperature range
40 ... 250 °C
Working temperature range with water cooling
20 ... 250 °C
Operating temperature range
-30 ... 250 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Heater power max.
3.6 kW
Max. power consumption
3.7 kW
Power consumption
16 A
Min. / max. bath volume
5.0 / 10.0 L
Dimensions (WxDxH)
310 x 335 x 415 mm
weight_PIM
15 kg
Power supply
200-230 V; 50/60 Hz
Power plug
Power cord with angled plug (CEE7/7)
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
| PRO with Command Touch remote control unit | Bath thermostats | Operating instruction |
English
| 4,53 MB |
Download document
| |
| PRO with Command Touch remote control unit | Circulation thermostats | Operating instruction |
English
| 4,53 MB |
Download document
| |
| PRO with Base remote control unit | Bath thermostats | Operating instruction |
English
| 3,86 MB |
Download document
| |
| PRO with Base remote control unit | Circulation thermostats | Operating instruction |
English
| 3,86 MB |
Download document
| |
| Supplementary pump | Accessories | Operating instruction |
English
| 1,26 MB |
Download document
| |
|
Chapter Cooling thermostats Overall brochure | Bath thermostats | Brochure |
English
| 2,6 MB |
Download document
| |
|
Chapter Heating thermostats Overall brochure | Bath thermostats | Brochure |
English
| 3,35 MB |
Download document
| |
|
Chapter Circulation and process thermostats Overall brochure | Circulation thermostats | Brochure |
English
| 4,84 MB |
Download document
| |
| Shut Down Valve LiBus | Accessories | Operating instruction |
English
| 567 kB |
Download document
| |
| Operating unit Command Touch | Accessories | Operating instruction |
English
| 1,75 MB |
Download document
|
Accessories
Please use the LAUDA accessories finder for additional accessories.
