PRO P 10

The PRO heating bath thermostats P 10, P 20 and P 30, with volumes of 10, 20 and 30 liters, function up to a maximum temperature of 250°C and their excellent temperature stability make them perfect for use in baths.

Order no.: L000186
Inquire about product
Back to overview Heating thermostats

Features

Thermostatic bath with latest microprocessor technology. Installed cooling coil
360° turnable and detachable control panel for remote control
SelfCheck Assistant for system diagnosis
Fully electronic continuous controller with PID action for internal & external control
Low height of appliance when control panel removed
Internal LAUDA Varioflex pump with 8 selectable levels

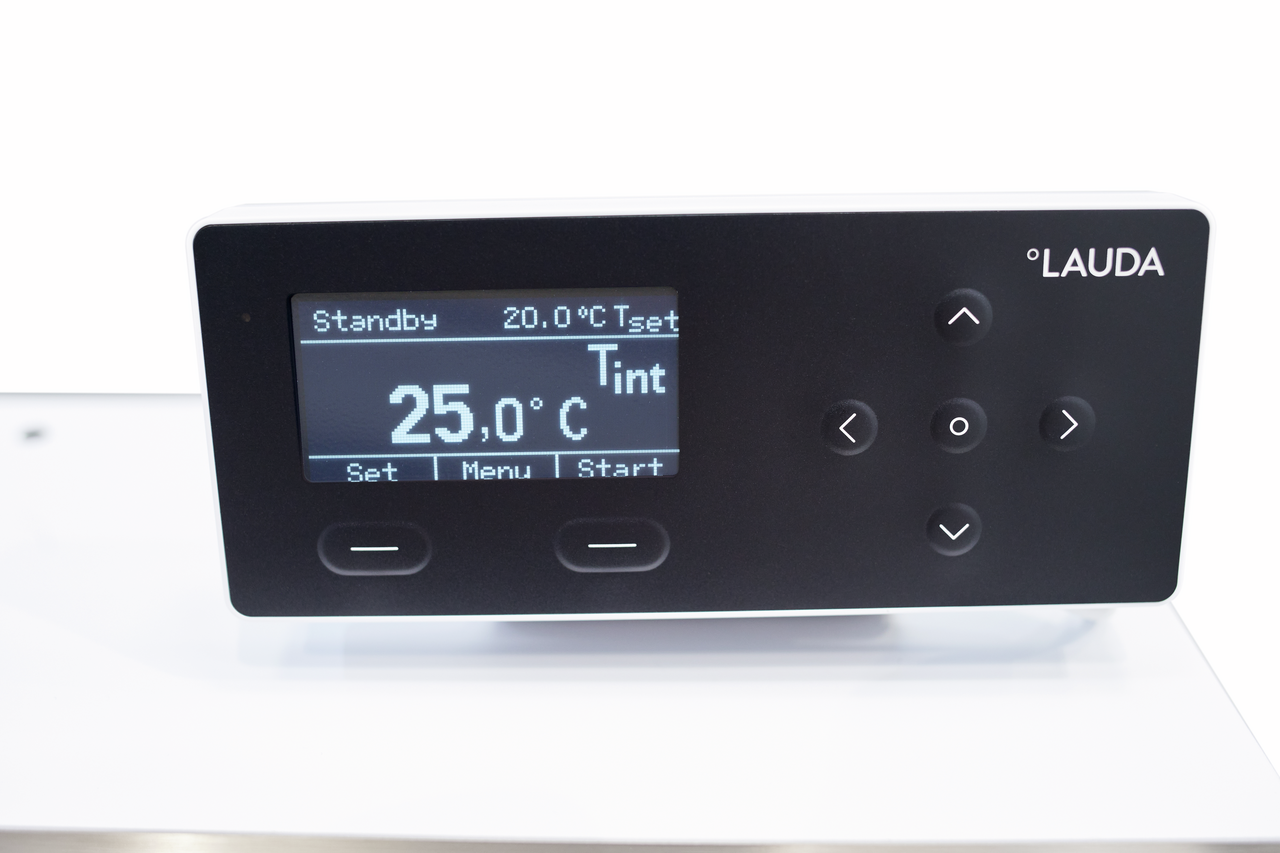

Bright and high-contrast graphic OLED display
EasyUse system for simple operation of the whole unit
USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Significantly enlarged accessible volume
Operation with Cursor- and Softkeys

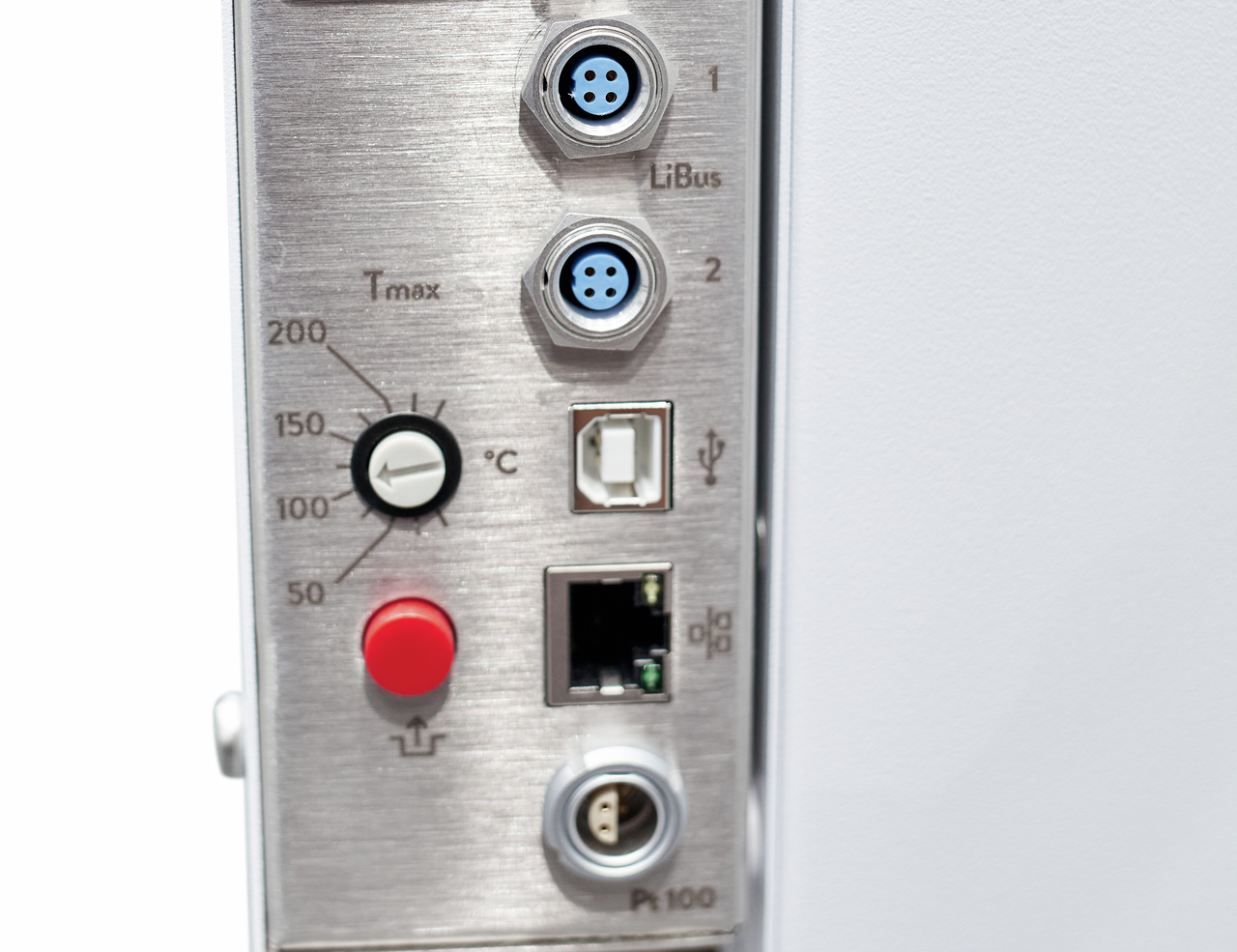

Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Integrated programmer, 1 programme with max. 20 segments
Bath vessel made of stainless steel (insulated, with handles and drain tap)

Working range

Working temperature min.

40 °C

Max. working temperature

250 °C

Temperature stability

0.01 ± K

Technical data (according to DIN 12876)

Working temperature range
40 ... 250 °C
Working temperature range with water cooling
20 ... 250 °C
Operating temperature range
-30 ... 250 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Heater power max.
3.6 kW
Max. power consumption
3.7 kW
Power consumption
16 A
Min. / max. bath volume
5.0 / 10.0 L
Dimensions (WxDxH)
310 x 335 x 365 mm
Power supply
200-230 V; 50/60 Hz
Power plug
Power cord with plug (SEV 1011, SEV 5934/2, T23)
Download Data sheet PRO P 10
