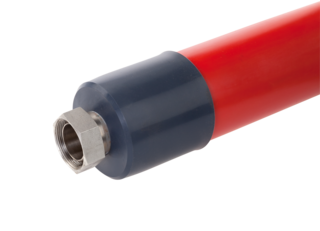

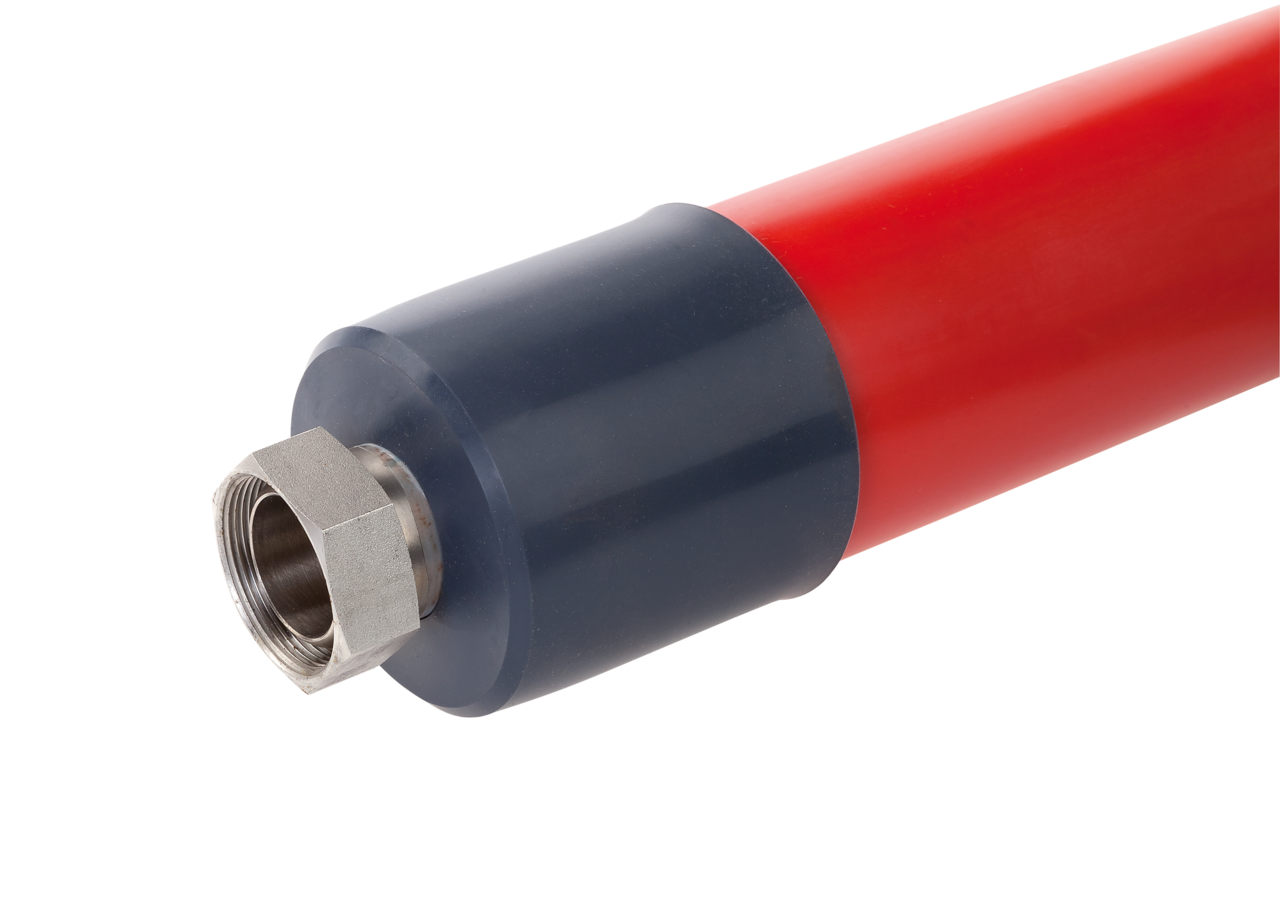

Metal tube M38X200 S M38x1.5 to M38x1.5

DN 25, length 2000 mm; -100...350 °C

Order no.: LZM 095
Inquire about product
Back to overview Accessories

Features

Corrugated metal hose for temperature control with different heat transfer liquids
Multilayer insulation, suitable for wide temperature ranges
Marking of the hose with permissible temperature range and maximum operating pressure

Technical data (according to DIN 12876)

Operating temperature range
-100 ... 350 °C
Operating pressure
-0.3 ... 10,0 bar in the operating temperature range
Hydraulic_connection_1_inside
M38 x 1,5
Hydraulic_connection_2_inside
M38 x 1,5
length
200 cm
inner diameter
25 mm
outer diameter
78 mm
Material_inside
Stainless steel
Material_outside
Smooth silicone hose with silicone end caps
Vacuum_resistance
100 % for 0 to 50 °C
Standard technical data
UL 94 HB
Download Data sheet LZM 095
