Proline Kryomats product line

High-performance low-temperature thermostats from -90 to 200 °C

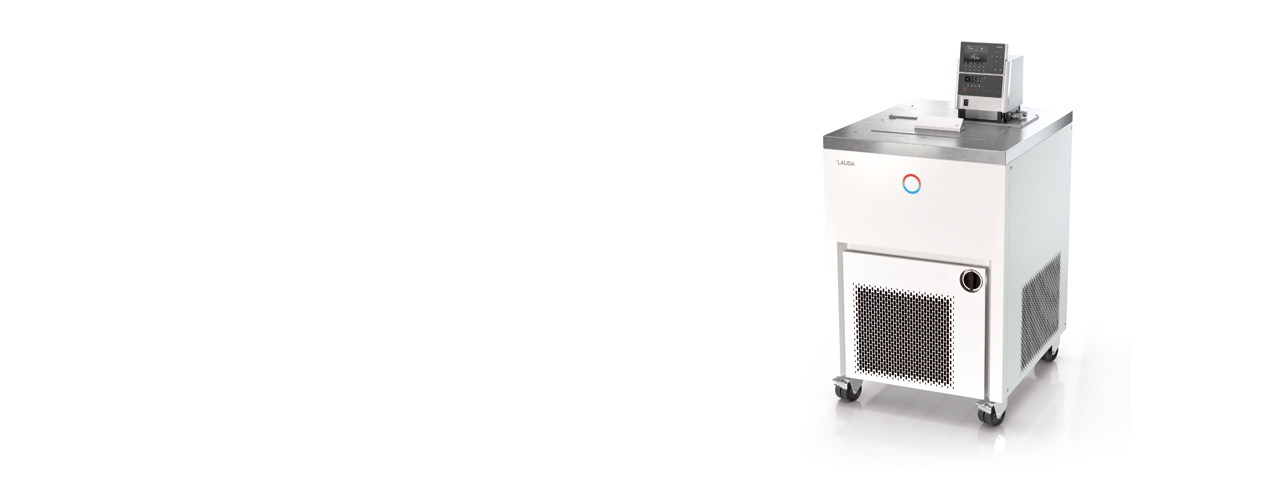

Proline Kryomats product line

Proline Kryomats are available in air and water-cooled versions and they provide large bath openings and volumes of between 30 and 40 liters. This makes them ideal for bulky samples and effective throughput. The adjustable pump nozzle is optimized for internal circulation and ensures optimal circulation and temperature distribution in the entire bath. Furthermore, an integrated bath edge and bath bridge heating prevent the formation of condensation caused by air humidity at low temperatures.
Inquire about product line

High-performance low-temperature thermostats from -90 to 200 °C

Overview of all Proline Kryomats

Product line

Proline Kryomate Cooling thermostats

Proline Kryomate Cooling thermostats

Professional cooling thermostats from -90 to 200 °C for use in process technology and material inspection

Cooling output from 2.9 kW to 6 kW

Heating output from 2.8 kW to 3.5 kW

-100
-50
0
50
100
150
200
250
300
-90 to 200 °C

Proline Kryomate Cooling thermostats

DO YOU NEED ADDITIONAL INFORMATION OR DO YOU HAVE QUESTIONS?


International Area Sales

+49 9343 503-555
E-Mail

Overview of all device types

Select the desired working temperature or type of heat discharge to narrow down the list

Working temperature (°C)

Heat discharge
ProductMin. working tempMax. working tempHeater power max.Cooling output at 20 °C 50 HzMin. / max. bath volumeCompare product
Proline Kryomate RP 3090 C -90 °C 200 °C 3.5 kW 3 kW 23.0 / 31.0 L
Proline Kryomate RP 3090 C -90 °C 120 °C 3.5 kW 2.9 kW 23.0 / 31.0 L
Proline Kryomate RP 3090 CW -90 °C 150 °C 3.5 kW 3.9 kW 23.0 / 31.0 L
Proline Kryomate RP 3090 CW -90 °C 200 °C 3.5 kW 4 kW 23.0 / 31.0 L
Proline Kryomate RP 4050 C -50 °C 200 °C 3.5 kW 5 kW 32.0 / 44.0 L
Proline Kryomate RP 4050 C -50 °C 120 °C 3.5 kW 4.9 kW 32.0 / 44.0 L
Proline Kryomate RP 4050 CW -50 °C 200 °C 3.5 kW 6 kW 32.0 / 44.0 L
Proline Kryomate RP 4050 CW -50 °C 150 °C 3.5 kW 5.9 kW 32.0 / 44.0 L
Proline Kryomate RP 4090 C -90 °C 200 °C 3.5 kW 3 kW 32.0 / 44.0 L
Proline Kryomate RP 4090 C -90 °C 120 °C 3.5 kW 2.9 kW 32.0 / 44.0 L
Proline Kryomate RP 4090 CW -90 °C 200 °C 3.5 kW 4 kW 32.0 / 44.0 L
Proline Kryomate RP 4090 CW -90 °C 120 °C 3.5 kW 3.9 kW 32.0 / 44.0 L
