Integral T Process thermostats
The new generation of Integral T process thermostats for professional external temperature control from -30 to 150 °C
Request advising
Back to overview Circulation and process thermostats

Process thermostats for the effective monitoring of external temperature control processes in temperatures ranging from -30 to 150°C.

LAUDA Integral T process thermostats are optimally suited to the effective monitoring of external temperature control processes in temperatures ranging from -30 to 150°C. These devices enable rapid temperature changes thanks to tailored heating and cooling output with small internal volumes.

Thanks to the open hydraulic system, the device aerates quickly and without loss of function. This makes it ideal for temperature control processes with frequent changes in consumer or test object. A reliable, powerful submersible pump and an internal bypass to limit the pressure are

part of the Integral T's standard equipment. The modular interface concept is now also implemented in the Integral T and ensures maximum networking of user processes.

Overview

Benefits and added value

  • Quick aeration and outgassing, as well as high output and working pressures
  • Preventive protection for pressure-sensitive consumers
  • Heating and cooling functions work independently of the flow rate for the application. The flow can be interrupted, e.g. when changing consumers
  • Remote monitoring and maintenance via LAUDA.LIVE

Working range

With the modular interface concept, you can integrate the new Integral process thermostats into your processes with maximum flexibility. The devices are equipped as standard with interfaces such as Ethernet, USB or Pt 100. Additional interfaces and communication protocols can be easily added via modules.

Working temperature min.

Working temperature min.

-30 °C

Max. working temperature

Max. working temperature

120 °C

Temperature stability

Temperature stability

0.05 ± K

Product lines



Select up to 4 technical parameters that you want to display in the table

ProductMin. temperature rangeMax. working tempHeating outputCooling output at 20 °C 50 HzCompare product
Integral IN 130 T -30 °C 120 °C 2.7 kW 1.4 kW Details
Integral IN 230 T -30 °C 120 °C 2.7 kW 2.2 kW Details
Integral IN 230 TW -30 °C 120 °C 2.7 kW 2.3 kW Details
Integral IN 530 T -30 °C 120 °C 8 kW 5 kW Details
Integral IN 530 TW -30 °C 120 °C 8 kW 6 kW Details
Integral IN 1030 T -30 °C 150 °C 8 kW 11 kW Details
Integral IN 1330 TW -30 °C 150 °C 16 kW 13 kW Details
Integral IN 1830 TW -30 °C 150 °C 16 kW 19 kW Details

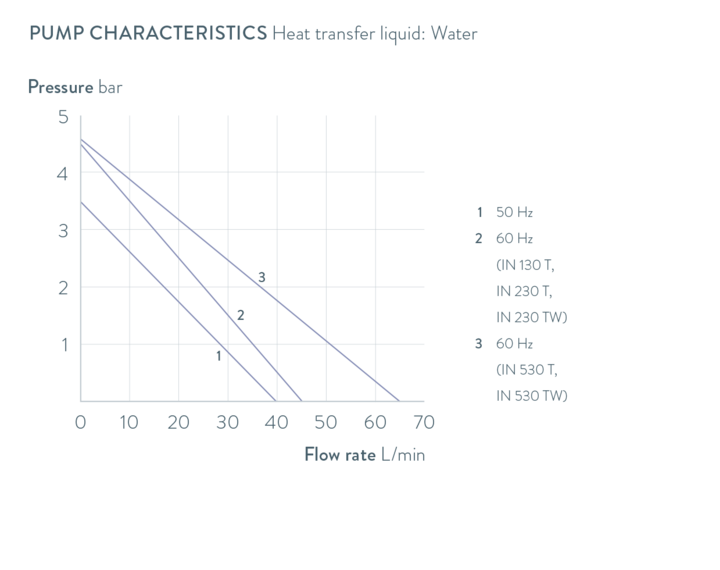

Characteristics

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Chapter Circulation and process thermostats
Overall brochure 		Process thermostats Brochure
English
PDF 4,84 MB Download document Download document
Integral T New Generation Process thermostats Operating instruction
English
PDF 7,14 MB Download document Download document
Integral T New Generation Process thermostats Brochure
English
PDF 2,22 MB Download document Download document
LAUDA Command App Process thermostats Software
English
EXE 65,35 MB Download document Download document
Operating unit Command Touch Accessories Operating instruction
English
PDF 1,75 MB Download document Download document

Accessories

Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder

Do you need additional information or do you have questions?

Puneet Chavan
Sales Manager UK & Ireland

+44 1780 243118
E-Mail
