High-performance process thermostats from 1.5 to 25 kW for temperature control from -90 to 320 °C
LAUDA Integral XT process thermostats operate according to the flow principle with a cold oil blanket that enables the utilization of temperature control media over a significantly larger temperature range—optimal for dynamic temperature control tasks.
The electronically controlled, magnetically coupled pump can set the flow rate optimally both for the requirements of pressure-sensitive consumers and for applications with high hydraulic resistance.
A modular interface concept that is fit for the future ensures maximum networking of user processes. In addition, the Integral devices are already designed to use LAUDA.LIVE, a digital solution for remote maintenance and monitoring - for greater safety and reliability.
Overview
Benefits and added value
-
Fast cooling and heating cycles
-
Larger temperature range and longer service life of the temperature control media
-
Preventive protection for pressure-sensitive consumers provided by an eight-stage Vario pump
-
Optimal performance of the XT even at extremely high pressure drops with low flow rates
Working range
Operate your Integral process thermostat simply via a modern TFT display directly on the device or optionally via an intuitive operating unit with touch display and extended range of functions.
Working temperature min.
25 °C
Max. working temperature
320 °C
Temperature stability
0.1 ± K
Product lines
Select up to 4 technical parameters that you want to display in the table
| Product | Min. temperature range | Max. working temp | Heating output | Cooling output at 20 °C 50 Hz | Compare product | |
|---|---|---|---|---|---|---|
| Integral IN 4 XTW | 25 °C | 320 °C | 3.5 kW | 2 kW | Details | |
| Integral IN 8 XTW | 25 °C | 320 °C | 8 kW | 2 kW | Details | |
| Integral IN 150 XT | -45 °C | 220 °C | 3.5 kW | 1.5 kW | Details | |
| Integral IN 250 XTW | -45 °C | 220 °C | 3.5 kW | 2.1 kW | Details | |
| Integral IN 280 XT | -80 °C | 220 °C | 4 kW | 1.6 kW | Details | |
| Integral IN 280 XTW | -80 °C | 220 °C | 4 kW | 1.7 kW | Details | |
| Integral IN 550 XT | -50 °C | 220 °C | 8 kW | 5 kW | Details | |
| Integral IN 550 XTW | -50 °C | 220 °C | 8 kW | 5.8 kW | Details | |
| Integral IN 590 XTW | -90 °C | 220 °C | 8 kW | 4.5 kW | Details | |
| Integral IN 750 XT | -45 °C | 220 °C | 8 kW | 7 kW | Details | |
| Integral IN 950 XTW | -50 °C | 220 °C | 8 kW | 9.5 kW | Details | |
| Integral IN 1590 XTW | -90 °C | 220 °C | 12 kW | 18.5 kW | Details | |

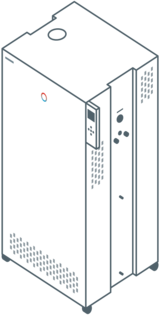

| Integral IN 1850 XTW | -50 °C | 220 °C | 16 kW | 20 kW | Details | |
| Integral IN 2560 XTW | -60 °C | 220 °C | 24 kW | 25 kW | Details |
Device dimensions
Characteristics
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
|
Chapter Circulation and process thermostats Overall brochure |
Process thermostats | Brochure |
English
|
4,84 MB |
Download document
|
|
| Integral XT New Generation | Process thermostats | Operating instruction |
English
|
7,14 MB |
Download document
|
|
| Integral XT New Generation | Process thermostats | Brochure |
English
|
2,22 MB |
Download document
|
|
| LAUDA Command App | Process thermostats | Software |
English
|
EXE | 65,34 MB |
Download document
|
| Integral XT New Generation with Flow Control Unit | Process thermostats | Operating instruction |
English
|
3,7 MB |
Download document
|
|
| Flow controller MID 80 | - | Operating instruction |
English
|
2,16 MB |
Download document
|
|
| Operating unit Command Touch | Accessories | Operating instruction |
English
|
1,75 MB |
Download document
|
|
| Filling and draining unit FD 50 | Accessories | Operating instruction |
English
|
4,03 MB |
Download document
|
|
| Assembly Filling and flow control system (based on FD 50 and MID 80) | Accessories | Operating instruction |
English
|
1,24 MB |
Download document
|
