Features

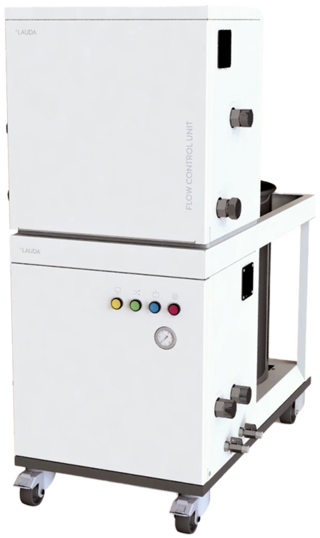

Flow control system with magnetic inductive measurement principle
User-interface allows setting and control of the temperature control unit
The maximum controllable volume flow depends on the pump output of the temperature control unit and the pressure drop in the application
Active filling and draining system for temperature control circuits with changing applications
Demand-related manual override of automation possible
Auxiliary pump for active support of filling via the thermostat
Mesh filter against aerosols
Movable on wheels
Permitted heat transfer liquids: water/glycol mixtures
Use in pressurized temperature control units up to max. 140 °C
Adjustable pressure limit in application circuit
Setting the parameters via the operating menu of the temperature control unit
Calibratable pressure sensors
Monitoring of the liquid temperature before compressed air discharge
Communication to the temperature control unit via LiBus
Available accessories: Inline - filter (strainer); Sight glass for venting control; Automatic refill incl. pump; Automatic refill via solenoid valve
Useable on LAUDA Integral variants IN XT and IN P
Use in open or cold-oil overlay systems up to max. 90 °C
With certificate of calibration
Automatic filling and emptying sequence, status visualized via illuminated keys
Pneumatic leak test before filling
Large tank reservoir with level detection for handling large quantities of liquid
Full process integration via connectivity temperature control unit
Technical data (according to DIN 12876)
Working temperature range
10 ... 40 °C
Ambient temperature range
5 ... 40 °C
Flow control range
0.2 ... 70 L/min
Flow measuring range
0.0 ... 99 L/min
Control accuracy volume flow (20 °C; 20 L/min; 1 bar)
0.2 ± L/min
Measurement deviation
± 3,3 % at 1 L/min; ± 0,2 % at 70 L/min
In / Outlet connection thread (outside)
M38 x 1,5
Dimensions (WxDxH)
627 x 1033 x 1278 mm
weight_PIM
150 kg
Max. power consumption
0.3 kW
Power supply
100-240 V; 50/60 Hz
Power plug
Power cord with plug (GB2099, 15934)
