EPDM Tube i.d. 9x2 mm
Features
Circulation chiller
Fully electronic continuous controller

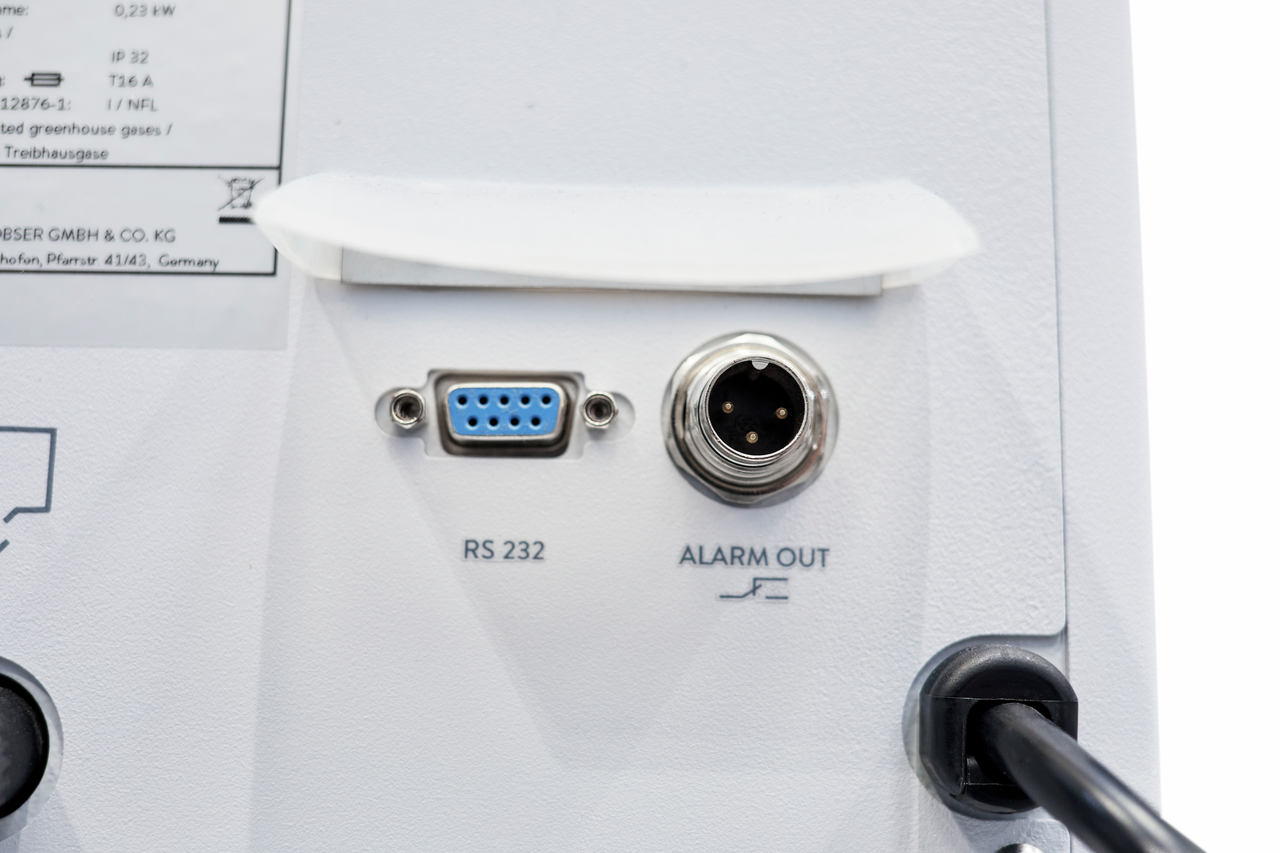

RS 232 interface
Cooling capacity adjustment by solenoid valve control including compressor on-off control
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
1-line LED display for display of actual or set temperature
Temperature protection for the pump windings, lighted level indication and low level alarm
Auto-Start-Timer and Auto-Shut-Down function
Condenser cooling Air
User-friendly menu guidance with simplest 3-key operation
Magnetically coupled block pump
Filler opening on top, outlet connection on the backside
Operates with non flammable liquids (water,water/glycol)
Working range
Working temperature min.
-10 °C
Max. working temperature
40 °C
Temperature stability
0.5 ± K
Technical data (according to DIN 12876)
Working temperature range
-10 ... 40 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.5 ± K
Max. discharge pressure
0,4 bar
Max. pump flow pressure
16 L/min
In / Outlet connection thread (outside)
Ø 10 mm
Min. filling volume
4 L
Max. filling volume
7 L
Dimensions (WxDxH)
240 x 400 x 500 mm
weight_PIM
26 kg
Noise level
60 dB(A)
Net weight
26 kg
Max. power consumption
0.5 kW
Power consumption
6.5 A
Power supply
100 V; 50/60 Hz
Power plug
Power cord with plug (NEMA 5-15P)
| Temperatur | Temperiermedium | Kälteleistung 50 Hz | Kälteleistung 60 Hz |
|---|---|---|---|
| 20 °C | Ethanol | 0,35 kW | 0,35 kW |
| 10 °C | Ethanol | 0,27 kW | 0,27 kW |
| 0 °C | Ethanol | 0,2 kW | 0,2 kW |
| -10 °C | Ethanol | 0,12 kW | 0,12 kW |
