Features
Calibration thermostatic bath with latest microprocessor technology and integrated cooling system
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)

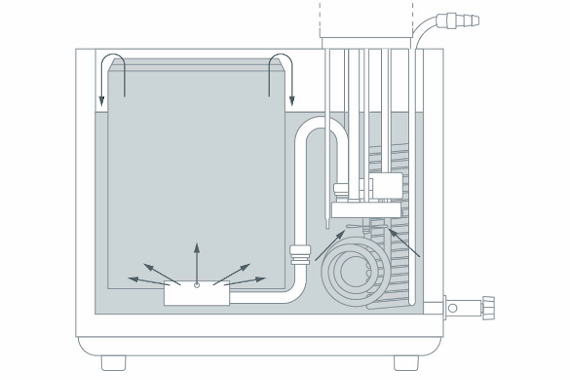

2-chamber construction for constant level in the thermostating chamber
Condenser cooling Air

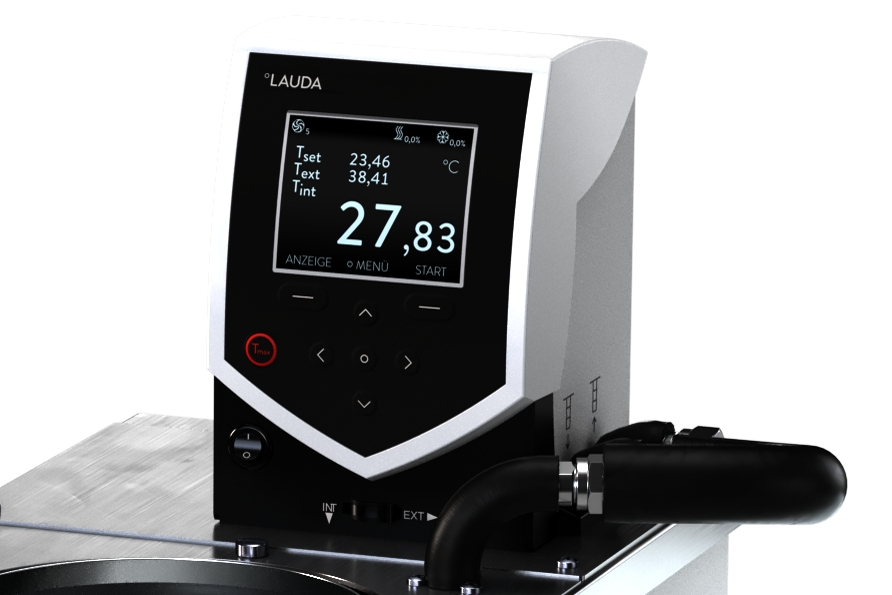

Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Vertical adjustment of the overflow height of the thermostating chamber
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Programmer with 150 temperature/time segments that can be separated into 5 programs
Bath vessel made from stainless steel with drain valve
Working range
Min. working temperature
-25 °C
Max. working temperature
200 °C
Temperature stability
Technical data (according to DIN 12876)
Working temperature range
-25 ... 200 °C
Ambient temperature range
5 ... 40 °C
Heater power max.
2.6 kW
Max. power consumption
2.9 kW
Current consumption
13 A
Min. / max. bath volume
9.3 / 12.0 L
Dimensions (WxDxH)
250 x 435 x 624 mm
Weight
31 kg
Power supply
230 V; 50 Hz
Power plug
Power cord with angled plug (CEE7/7)
| Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz |
|---|---|---|---|
| 20 °C | 2 | Ethanol | 0.3 kW |
| 0 °C | 2 | Ethanol | 0.24 kW |
| -20 °C | 2 | Ethanol | 0.09 kW |
| -25 °C | 2 | Ethanol | 0.04 kW |
