Roto rack for PJ 12
Features
Calibration thermostatic bath with latest microprocessor technology and many functions for programming and information and installed cooling coil
Input either via cursor keys, numeric soft keys or both. Additional Tmax key for overtemperature
SelfCheck Assistant for system diagnosis
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Option for upgrading with up to 2 interfaces (RS 232/485, Profibus, analogue or contact modules, Ethernet-USB module)
2-chamber construction for constant level in the thermostating chamber
For low temperatures an external cooling source is required

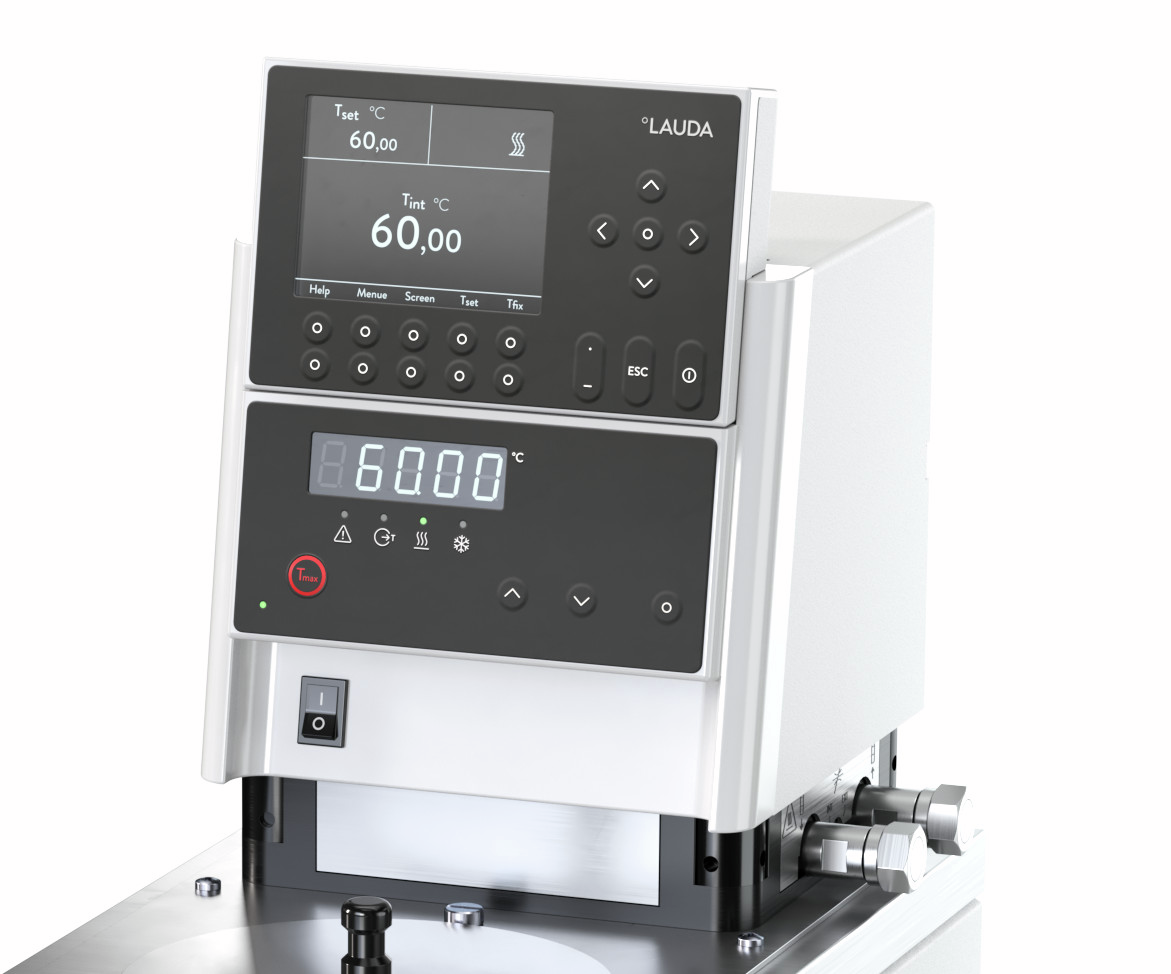

Back-lit graphic LCD display with high resolution and different display modes
Command console can be detached and used as remote control
Fully electronic continuous controller with PID action for internal & external control
LAUDA Varioflex pump (pressure) with 8 selectable levels
Programmer with 150 temperature/time segments that can be separated into 5 programs
Pump connectors on the side and in the back, installed bypass
Additional green LED display for temperature
EasyUse system for simple operation of the whole unit
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Optically decoupled RS 232/485 interface integrated as a standard
Timer function for switching on the thermostat, entering the standyby mode or running of programs
Bath from stainless steel (specially insulated for low-temperature work, with carrying handles and drain tap)
Working range
Min. working temperature
30 °C
Max. working temperature
200 °C
Temperature stability
0.01 ± K
Technical data (according to DIN 12876)
Working temperature range
30 ... 200 °C
Working temperature range with water cooling
20 ... 200 °C
Operating temperature range
-40 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Heater power max.
2.9 kW
Current consumption
13 A
Max. power consumption
3 kW
Max. discharge pressure
0,8 bar
Max. pump flow pressure
25 L/min
Min. / max. bath volume
8.5 / 13.5 L
Dimensions (WxDxH)
220 x 360 x 630 mm
Weight
19 kg
Power supply
230 V; 50/60 Hz
Power plug
Power cord with angled plug (BS1363)
