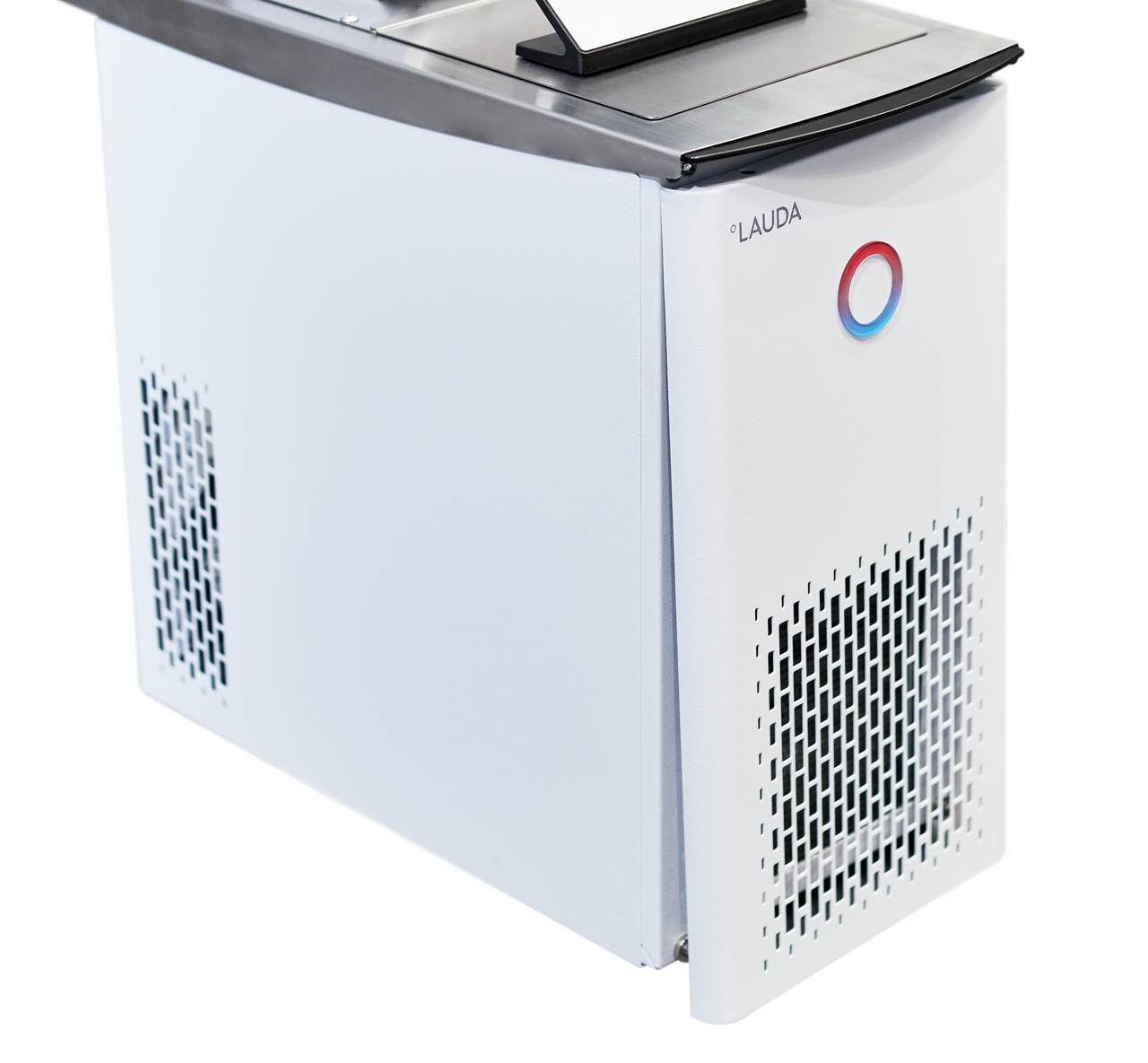

Alpha RA 8

The cooling thermostats RA 8, RA 12 and RA 24, including standard-issue bath covers and pump connections, facilitate cooling across the entire temperature range from -25 to 100°C. Automatic compressor control extends the service life of the compressor and offers savings on operation costs.

Order no.: L000650

Features

Thermostatic bath/circulator with simplest operation and integrated cooling system
Fully electronic continuous controller
Circulating pump with flow reduction
Condenser cooling Air
1-line LED display for display of actual or set temperature
Low level and overtemperature protection for use with non-flammable liquids

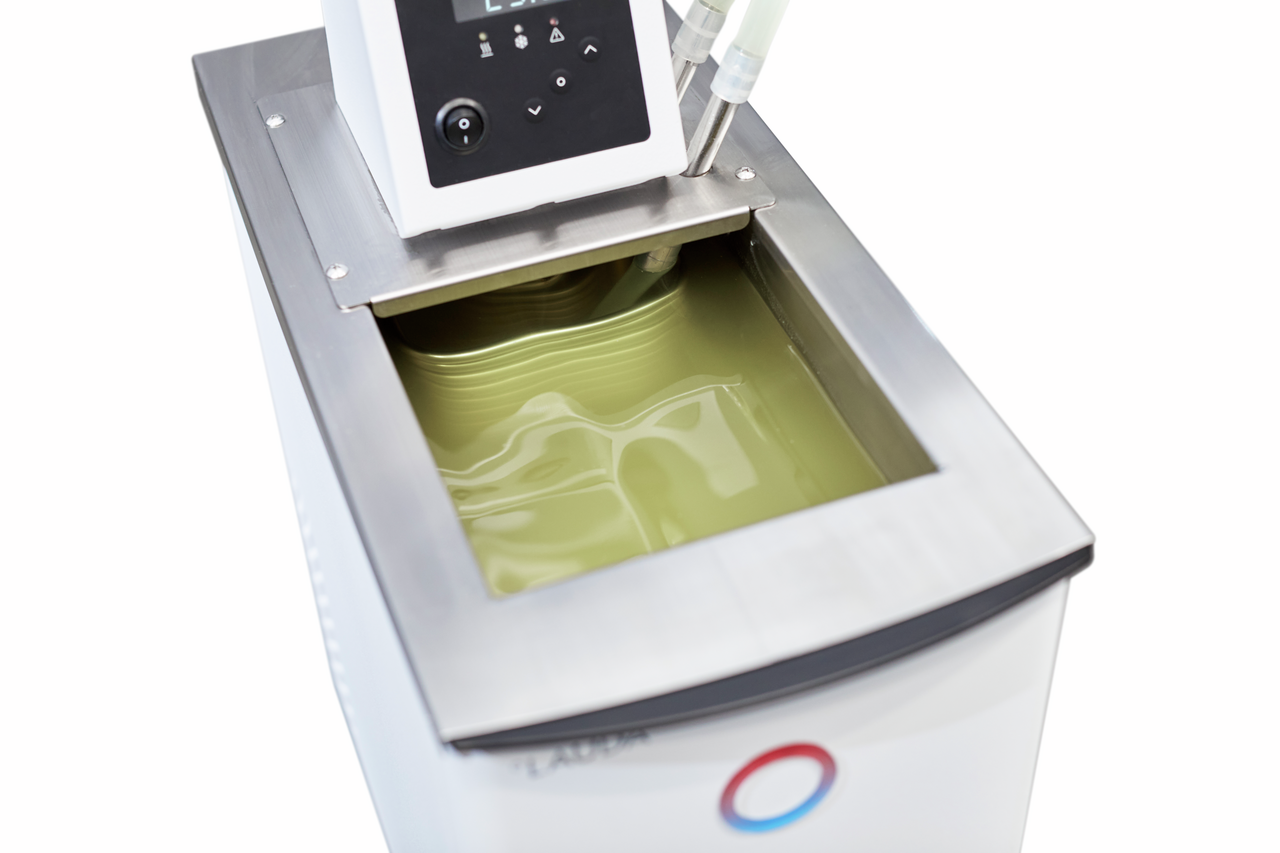

Bath from stainless steel
Outlet connection at the rear
User-friendly menu guidance with simplest 3-key operation
Acoustic and visual alarm
Cooling through intelligent energy saving system (compressor automatic)
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024

Working range

Min. working temperature

-25 °C

Max. working temperature

100 °C

Temperature stability

0.05 ± K

Technical data (according to DIN 12876)

Working temperature range
-25 ... 100 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Heater power max.
1.15 kW
Max. power consumption
1.5 kW
Current consumption
13 A
Max. discharge pressure
0,2 bar
Max. pump flow pressure
15 L/min
Min. / max. bath volume
5.0 / 7.5 L
Dimensions (WxDxH)
235 x 500 x 605 mm
Weight
30 kg
Power supply
115 V; 60 Hz
Power plug
Power cord with plug (NEMA 5-15P)
TemperatureTempering mediumCooling capacity 60 Hz
20 °CEthanol0.225 kW
0 °CEthanol0.16 kW
-20 °CEthanol0.08 kW
