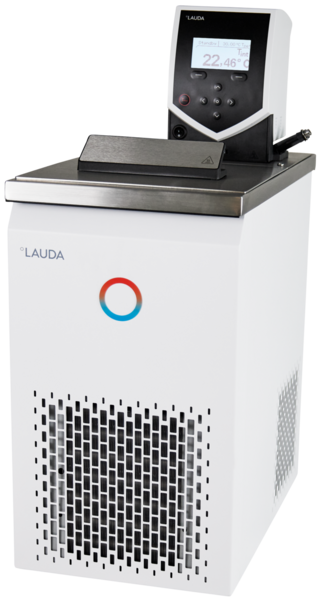

ECO RE 1225 S

The cooling thermostats come with bath cover and pump connections as standard, and are available in air and water-cooled designs. A drain tap on the back side of the device makes changing the heat transfer liquid easy and safe.

Order no.: L001410
Inquire about product
Back to overview Cooling thermostats

Features

Thermostatic bath/circulator with latest microprocessor technology and integrated cooling system
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Pump connectors with plastic nipples 13 mm as standard
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Monochrome grafic LCD display for simultaneous indication of actual and set value
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Bath vessel made from stainless steel with drain valve
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Integrated programmer, 1 programme with max. 20 segments
Condenser cooling Air

Working range

Min. working temperature

-25 °C

Max. working temperature

200 °C

Temperature stability

0.02 ± K

Technical data (according to DIN 12876)

Working temperature range
-25 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.02 ± K
Heater power max.
1.8 kW
Max. power consumption
2.1 kW
Current consumption
10 A
Max. discharge pressure
0,6 bar
Max. pump flow pressure
22 L/min
Min. / max. bath volume
9.3 / 12.0 L
Dimensions (WxDxH)
250 x 435 x 624 mm
Weight
29 kg
Power supply
220 V; 60 Hz
Power plug
Power cord with plug (NEMA 6-20P)
TemperaturePump levelTempering mediumCooling capacity 60 Hz
20 °C2Ethanol0.3 kW
0 °C2Ethanol0.24 kW
-20 °C2Ethanol0.09 kW
-25 °C2Ethanol0.04 kW
