Alpha A 6

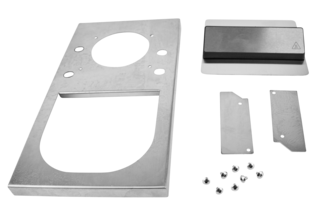

The heating thermostats A 6, A 12 and A 24 work in the temperature range between 25 and 100°C. Cooling coil, pump circulation set and bath cover set are available as accessories for all thermostats.

Order no.: L000619

Features

Thermostatic bath with simplest operation
Fully electronic continuous controller
Circulating pump with flow reduction
1-line LED display for display of actual or set temperature
Low level and overtemperature protection for use with non-flammable liquids
Bath from deep-drawn stainless steel
User-friendly menu guidance with simplest 3-key operation
Acoustic and visual alarm
Optional cooling coil and pump circulation set available

Working range

Working temperature min.

25 °C

Max. working temperature

100 °C

Temperature stability

0.05 ± K

Technical data (according to DIN 12876)

Working temperature range
25 ... 100 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Heater power max.
1.5 kW
Max. power consumption
1.5 kW
Power consumption
7 A
Max. discharge pressure
0,2 bar
Max. pump flow pressure
15 L/min
Min. / max. bath volume
2.5 / 5.5 L
Dimensions (WxDxH)
181 x 332 x 370 mm
weight_PIM
7 kg
Power supply
220 V; 60 Hz / 230 V; 50 Hz
Power plug
Power cord with angled plug (CEE7/7)
