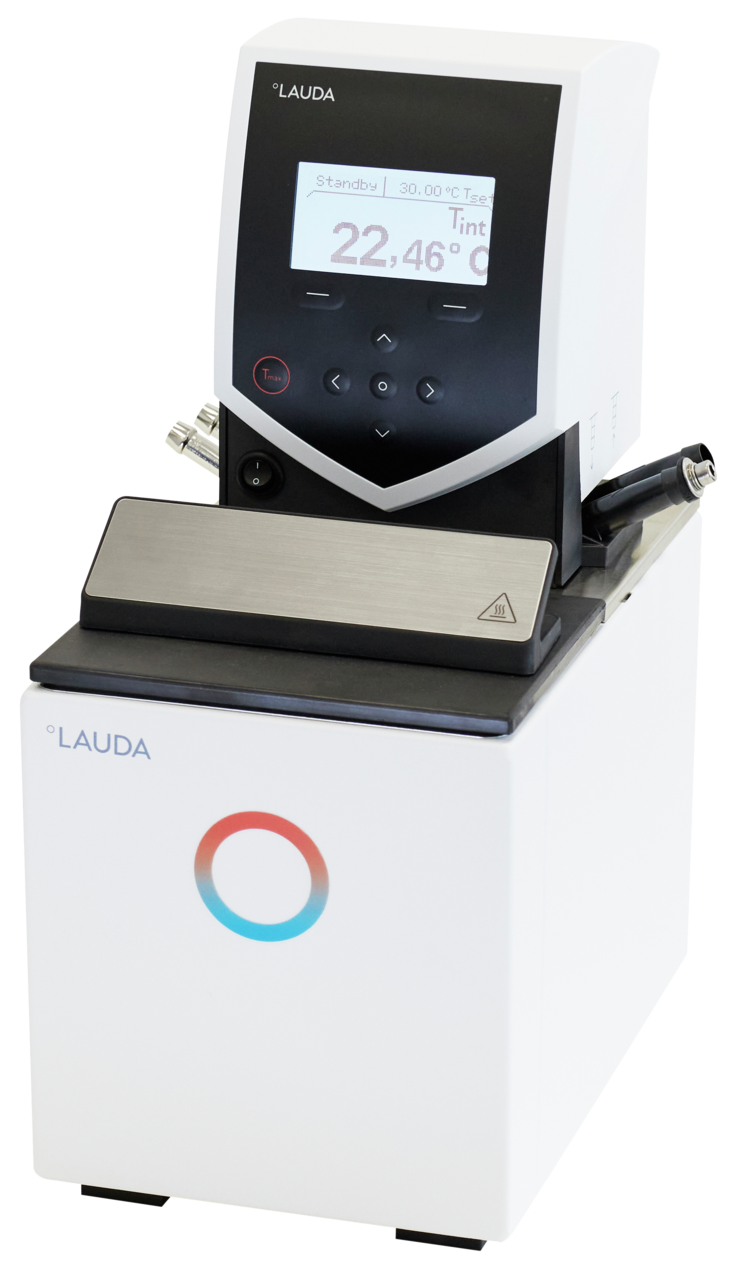

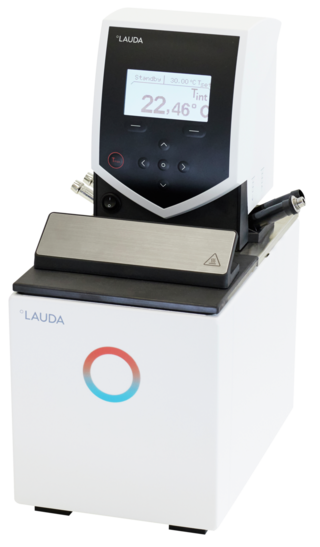

Heating thermostats from 20 to 200°C for cost-effective temperature control in the lab
The ECO thermostats are available in Silver (LCD) or Gold (color TFT display) models with a large number of interface modules as accessories.

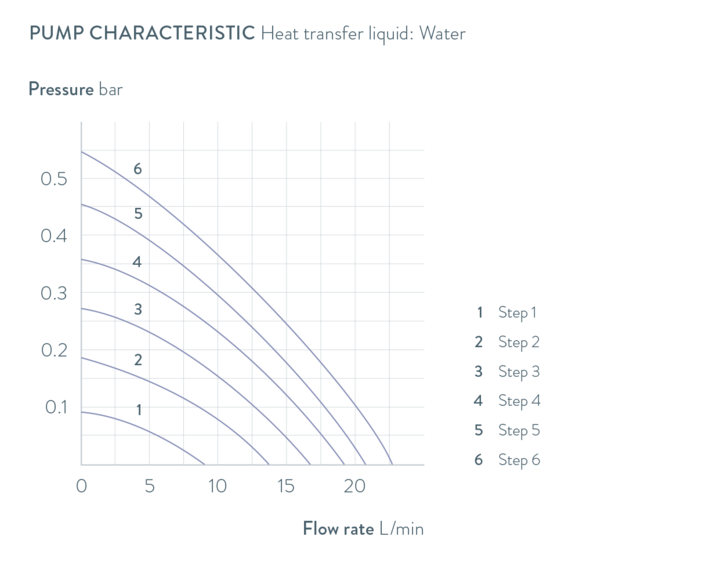

The circulation pump is adjustable in six stages. A cooling coil is included as standard on the ECO E 4 and is available as an option on all other variants.
A drain tap on the back side of the device makes changing the heat transfer liquid easy and safe.
Overview
Benefits and added value
-
Integral programmer for automating temperature profiles
-
Adjustment of the flow rate switch for internal/external circulation can be actuated from the top during operation
-
Can be upgraded with Pt100/LiBus module for external control and control via remote control command
-
Individually limitable working temperature range, as well as a separate setting for overtemperature protection
Working range
The bath thermostats come equipped with a cooling coil as standard. The E 4 is also equipped with a bath cover and pump connections for external application connections. A drain tap on the back side of the device makes changing the heat transfer liquid in the stainless steel baths easy and safe.
Min. working temperature
20 °C
Max. working temperature
200 °C
Temperature stability
0.01 ± K
Product lines
Select up to 4 technical parameters that you want to display in the table
| Product | Min. working temp | Max. working temp | Heater power max. | Integrated interfaces | Compare product | |
|---|---|---|---|---|---|---|
| ECO E 4 G | 20 °C | 200 °C | 2.6 kW | Mini USB | Details | |
| ECO E 4 S | 20 °C | 200 °C | 2 kW | Mini USB | Details | |
| ECO E 10 G | 20 °C | 200 °C | 2.6 kW | Mini USB | Details | |
| ECO E 10 S | 20 °C | 200 °C | 2 kW | Mini USB | Details | |
| ECO E 20 G | 20 °C | 200 °C | 2.6 kW | Mini USB | Details | |
| ECO E 20 S | 20 °C | 200 °C | 2 kW | Mini USB | Details | |
| ECO E 25 G | 20 °C | 200 °C | 2.6 kW | Mini USB | Details | |
| ECO E 25 S | 20 °C | 200 °C | 2 kW | Mini USB | Details | |
| ECO E 40 G | 20 °C | 200 °C | 2.6 kW | Mini USB | Details | |
| ECO E 40 S | 20 °C | 200 °C | 2 kW | Mini USB | Details |
Device dimensions
Characteristics
