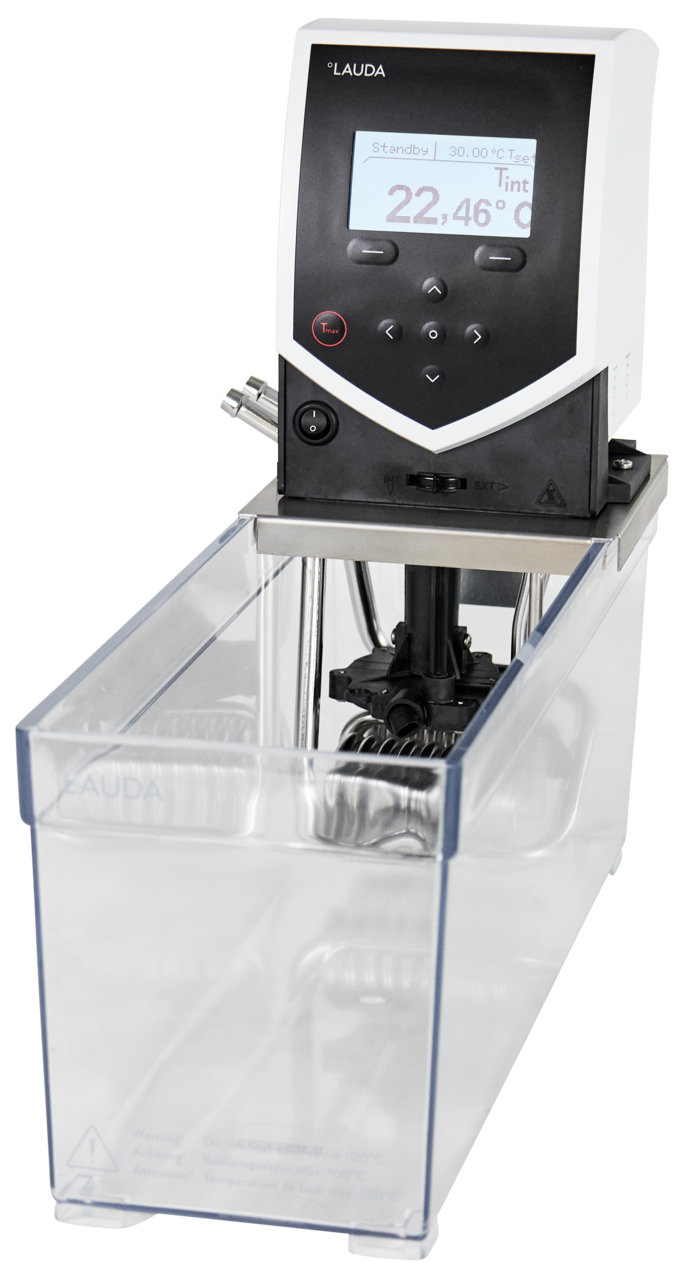

ECO ET 6 S

LAUDA ECO heating thermostats with transparent bath are available with a bath volume of 6 to 20 L. With the practical flow division on the control head, an individual division of the flow between internal and external circulation is possible even during operation.

Order no.: L001096
Inquire about product
Back to overview Heating thermostats

Features

Thermostatic bath with latest microprocessor technology
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Transparent bath made from polycarbonate
Monochrome grafic LCD display for simultaneous indication of actual and set value
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Cooling coil as standard
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Integrated programmer, 1 programme with max. 20 segments

Working range

Min. working temperature

20 °C

Max. working temperature

100 °C

Temperature stability

0.01 ± K

Technical data (according to DIN 12876)

Working temperature range
20 ... 100 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Heater power max.
2 kW
Max. power consumption
2.1 kW
Current consumption
10 A
Max. discharge pressure
0,6 bar
Max. pump flow pressure
22 L/min
Min. / max. bath volume
5.0 / 6.0 L
Dimensions (WxDxH)
143 x 433 x 349 mm
Weight
5 kg
Power supply
230 V; 50/60 Hz
Power plug
Power cord with angled plug (CEE7/7)
Download Data sheet ECO ET 6 S
