Pump connection set ECO
Features

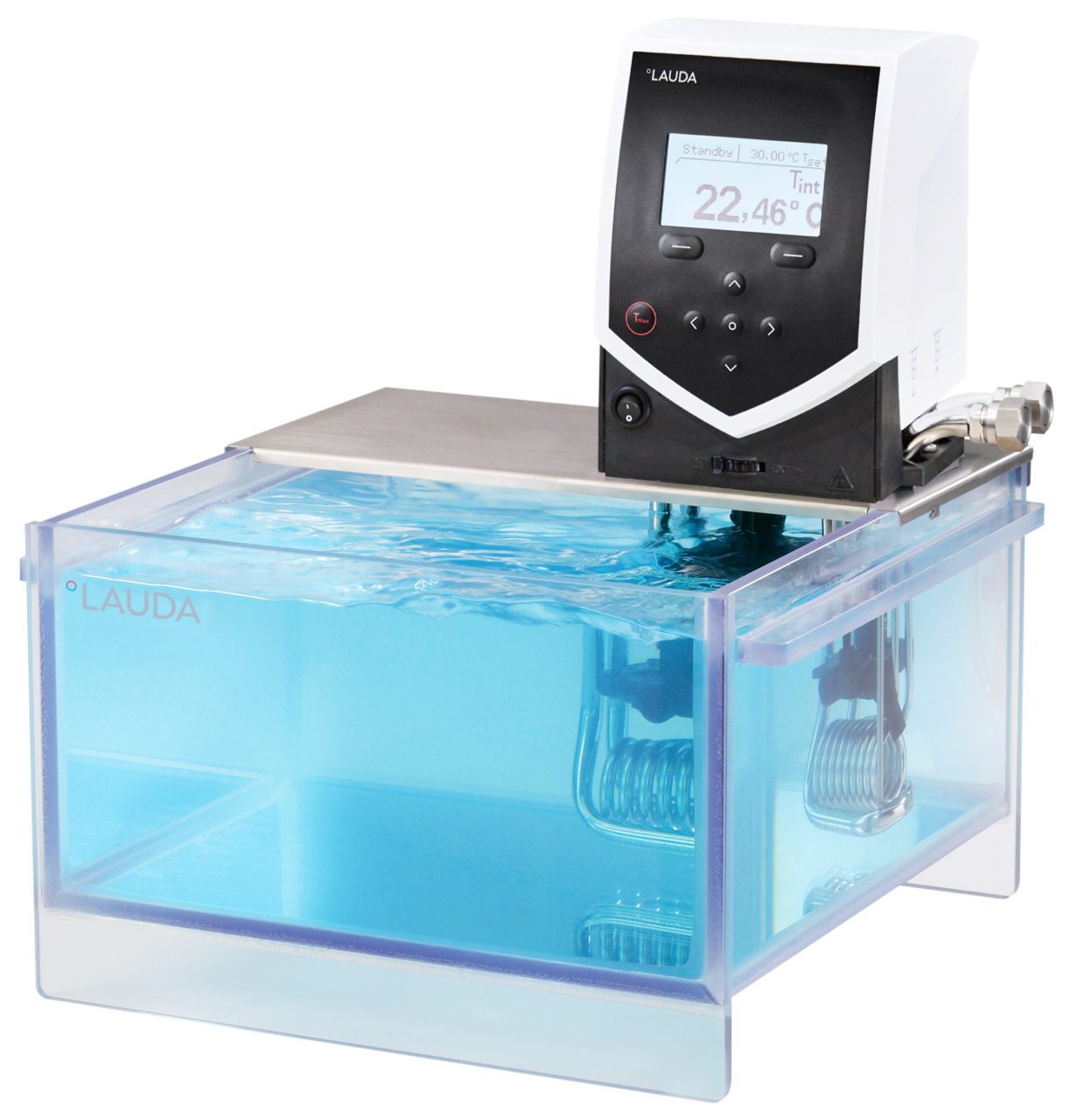

Thermostatic bath with latest microprocessor technology
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Transparent bath made from polycarbonate
Monochrome grafic LCD display for simultaneous indication of actual and set value
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Cooling coil as standard
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Integrated programmer, 1 programme with max. 20 segments
Working range
Min. working temperature
20 °C
Max. working temperature
100 °C
Temperature stability
0.01 ± K
Technical data (according to DIN 12876)
Working temperature range
20 ... 100 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Heater power max.
2 kW
Max. power consumption
2.1 kW
Current consumption
10 A
Max. discharge pressure
0,6 bar
Max. pump flow pressure
22 L/min
Min. / max. bath volume
9.5 / 12.0 L
Dimensions (WxDxH)
322 x 331 x 389 mm
Weight
7 kg
Power supply
230 V; 50/60 Hz
Power plug
Power cord with angled plug (CEE7/7)
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
| ECO Silver | Immersion thermostats | Operating instruction |
English
|
4,49 MB |
Download document
|
|
| ECO Silver | Bath thermostats | Operating instruction |
English
|
4,49 MB |
Download document
|
|
|
ECO Silver Natural refrigerant |
Bath thermostats | Operating instruction |
English
|
5,08 MB |
Download document
|
|
| ECO Gold | Immersion thermostats | Operating instruction |
English
|
5,5 MB |
Download document
|
|
| ECO Gold | Bath thermostats | Operating instruction |
English
|
5,5 MB |
Download document
|
|
|
ECO Gold Natural refrigerant |
Bath thermostats | Operating instruction |
English
|
6,38 MB |
Download document
|
|
|
Chapter Cooling thermostats Overall brochure |
Bath thermostats | Brochure |
English
|
2,6 MB |
Download document
|
|
|
Chapter Heating thermostats Overall brochure |
Bath thermostats | Brochure |
English
|
3,35 MB |
Download document
|
|
|
Chapter Calibration thermostats Overall brochure |
Special devices | Brochure |
English
|
1,52 MB |
Download document
|
Accessories
Please use the LAUDA accessories finder for additional accessories.
