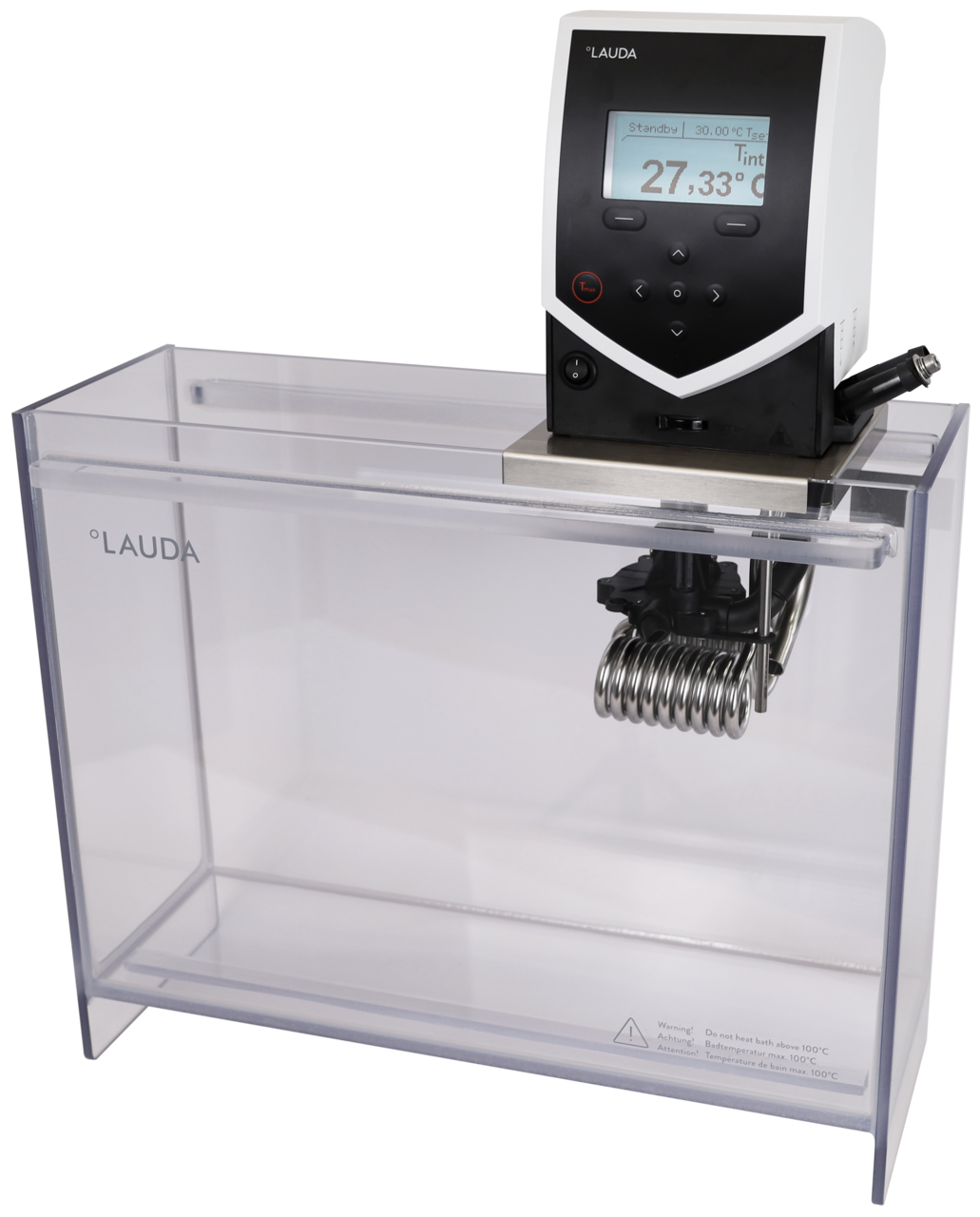

ECO ET 15 S
Order no.: L001205
Inquire about product
Back to overview Heating thermostats

Features

Thermostatic bath/circulator with latest microprocessor technology
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Pump connectors with plastic nipples 13 mm as standard
Monochrome grafic LCD display for simultaneous indication of actual and set value
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Transparent bath made from polycarbonate
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Integrated programmer, 1 programme with max. 20 segments

Working range

Min. working temperature

20 °C

Max. working temperature

100 °C

Temperature stability

0.01 ± K

Technical data (according to DIN 12876)

Working temperature range
20 ... 100 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Heater power max.
1.3 kW
Max. power consumption
1.4 kW
Current consumption
12 A
Max. discharge pressure
0,6 bar
Max. pump flow pressure
22 L/min
Min. / max. bath volume
13.5 / 15.0 L
Dimensions (WxDxH)
428 x 148 x 532 mm
Weight
7 kg
Power supply
115 V; 60 Hz
Power plug
Power cord with plug (NEMA 5-15P)
Download Data sheet ECO ET 15 S

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
ECO Silver Immersion thermostats Operating instruction
English
PDF 4,49 MB Download document Download document
ECO Silver Bath thermostats Operating instruction
English
PDF 4,49 MB Download document Download document
ECO Silver
Natural refrigerant 		Bath thermostats Operating instruction
English
PDF 4,41 MB Download document Download document
ECO Gold Immersion thermostats Operating instruction
English
PDF 5,5 MB Download document Download document
ECO Gold Bath thermostats Operating instruction
English
PDF 5,5 MB Download document Download document
ECO Gold
Natural refrigerant 		Bath thermostats Operating instruction
English
PDF 5,3 MB Download document Download document
Chapter Cooling thermostats
Overall brochure 		Bath thermostats Brochure
English
PDF 2,6 MB Download document Download document
Chapter Heating thermostats
Overall brochure 		Bath thermostats Brochure
English
PDF 3,35 MB Download document Download document
Chapter Calibration thermostats
Overall brochure 		Special devices Brochure
English
PDF 1,52 MB Download document Download document

Accessories

Cooling coil set for ECO ET 15 X
Cooling coil set for ECO ET 15 X
USB connection cable 2.0 Mini
USB connection cable 2.0 Mini
Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
