Features

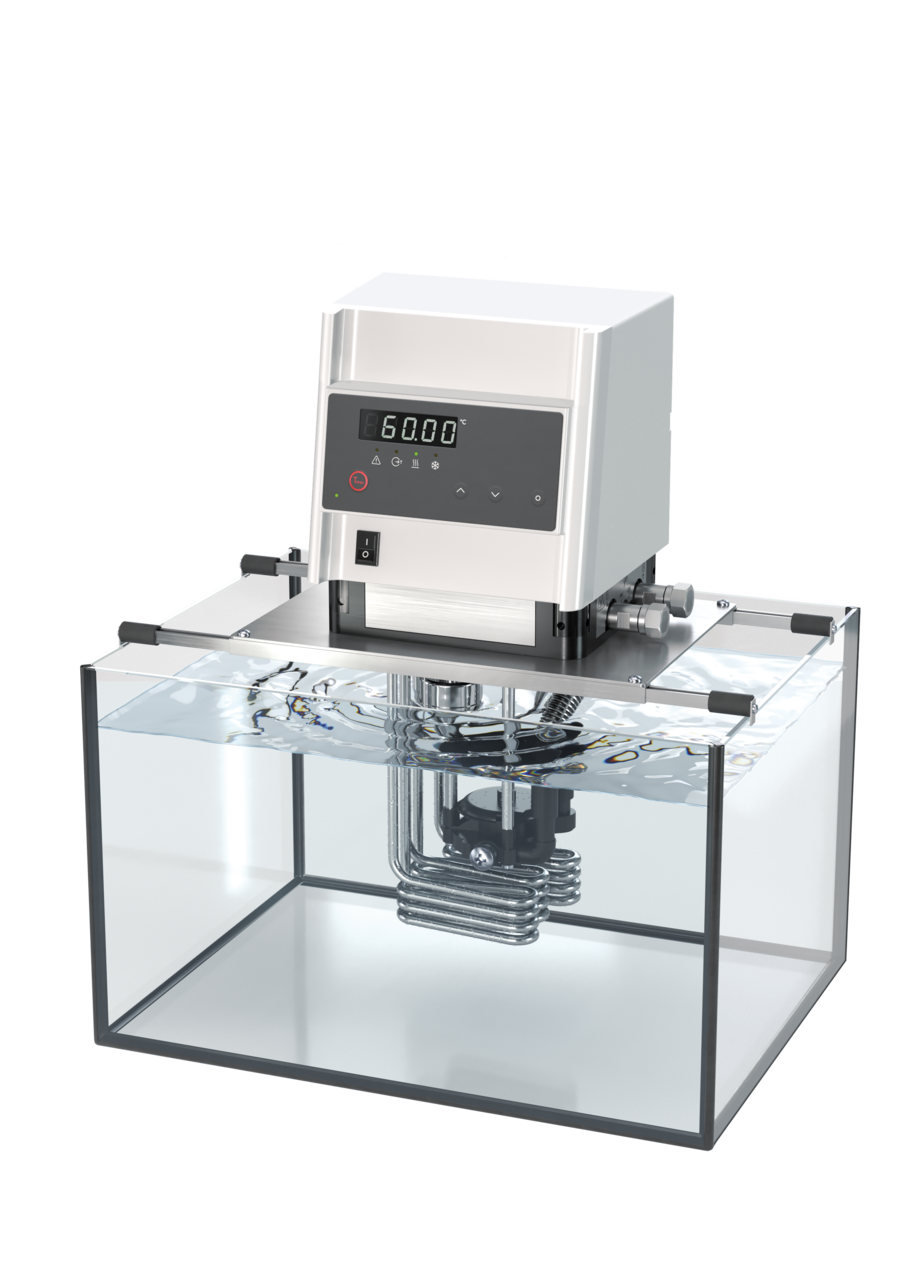

Bridge thermostatic circulator with latest microprocessor technology technology
EasyUse system for simple operation of the whole unit
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Option for upgrading with up to 2 interfaces (RS 232/485, Profibus, analogue or contact modules, Ethernet-USB module)
Easily readable green LED display for temperature
SelfCheck Assistant for system diagnosis
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Pump connectors on the side and in the back, installed bypass
User-friendly menu guidance with simplest 3-key operation
Fully electronic continuous controller with PID action for internal & external control
LAUDA Varioflex pump (pressure) with 8 selectable levels
Telescopic rods for bath widths up to 550 mm
Working range
Min. working temperature
30 °C
Max. working temperature
300 °C
Temperature stability
0.01 ± K
Technical data (according to DIN 12876)
Working temperature range
30 ... 300 °C
Working temperature range with water cooling
20 ... 300 °C
Operating temperature range
-30 ... 300 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Heater power max.
3.6 kW
Current consumption
16 A
Max. power consumption
3.7 kW
Max. discharge pressure
1,1 bar
Max. pump flow pressure
32 L/min
Dimensions (WxDxH)
320 x 185 x 400 mm
Weight
8 kg
Power supply
230 V; 50/60 Hz
Power plug
Power cord with angled plug (CEE7/7)
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
| Proline Cooling thermostats | Bath thermostats | Operating instruction |
English
|
4,34 MB |
Download document
|
|
| Proline Heating thermostats | Bath thermostats | Operating instruction |
English
|
3,91 MB |
Download document
|
|
| Proline Bridge thermostats | Special devices | Operating instruction |
English
|
3,91 MB |
Download document
|
|
|
Chapter Heating thermostats Overall brochure |
Bath thermostats | Brochure |
English
|
3,35 MB |
Download document
|
|
|
Chapter Calibration thermostats Overall brochure |
Special devices | Brochure |
English
|
1,52 MB |
Download document
|
