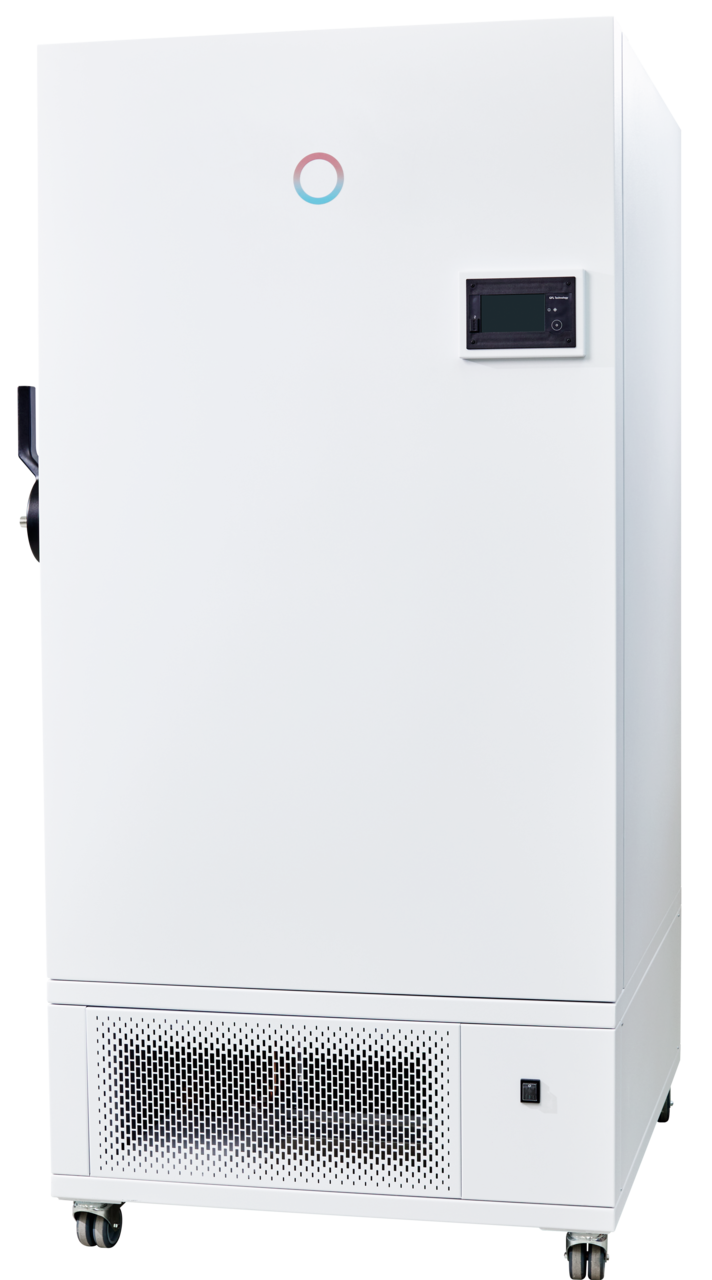

Versafreeze Upright freezers
For safe storage of pharmaceuticals and valuable samples

Ultra high-quality, ultra-safe, ultra-reliable - the LAUDA ultra low temperature freezers

Vaccines, organic substances and valuable samples that need to be stored at low temperatures are irreplaceable. Only the highest-quality ultra low temperature freezers guarantee long-term stability and availability in these challenging conditions.

Whether vacuum panels from va-Q-tec, compressors from Embraco or controllers from Störk – LAUDA Versafreeze devices are built with quality and reliability in mind. They offer excellent temperature distribution, insulation properties with long thaw times and thus the greatest possible sample safety and sustainable cooling technology.

The modern, capacitive touch display offers intuitive navigation with various configuration options, a data logger, password-protected user access and secure monitoring via LAUDA.LIVE.

Overview

Benefits and added value

  • Sustainable and energy-efficient: multi-layer insulation, natural refrigerants & long thaw times for the greatest sample safety and low energy requirements
  • Custom-tailored solutions: extensive options and accessories (e.g. safety cooling, water cooling, storage systems or special installations)
  • The greatest security thanks to password-protected access rights and integrated data logger
  • Intuitive operating unit via touchscreen

Working range

LAUDA Versafreeze freezers feature an intuitive, modern touch display with a wide range of setting options, password-protected access rights and secure monitoring via the LAUDA Cloud as option. This allows critical values of the ultra-low temperature freezers to be checked and controlled regardless of location and device.

Min. working temperature

Min. working temperature

-86 °C

Max. working temperature

Max. working temperature

-50 °C

Product lines

Select up to 4 technical parameters that you want to display in the table

ProductUsable volumeMin. working tempInterior dimensions (WxDxH)Dimensions (WxDxH)Compare product
Versafreeze VF 15040 129 L -40 °C 480 x 480 x 560 mm 904 x 776 x 865 mm Details
Versafreeze VF 15085 129 L -86 °C 480 x 480 x 560 mm 904 x 776 x 865 mm Details
Versafreeze VF 60040 584 L -40 °C 738 x 600 x 1320 mm 980 x 1029 x 1965 mm Details
Versafreeze VF 60085 584 L -86 °C 738 x 600 x 1320 mm 980 x 1029 x 1965 mm Details
Versafreeze VF 70040 731 L -40 °C 738 x 750 x 1320 mm 980 x 1179 x 1965 mm Details
Versafreeze VF 70085 731 L -86 °C 738 x 750 x 1320 mm 980 x 1179 x 1965 mm Details

Device dimensions

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Versafreeze Freezers Freezers Brochure
English
PDF 1,87 MB Download document Download document
Versafreeze Upright freezers Freezers Operating instruction
English
PDF 2,77 MB Download document Download document
Chapter Freezers
Overall brochure
Freezers Brochure
English
PDF 2,72 MB Download document Download document
Versafreeze Chest Freezers Freezers Operating instruction
English
PDF 2,52 MB Download document Download document
