Water level controller
Features
Shaking water bath for exactly reproducible temperatures

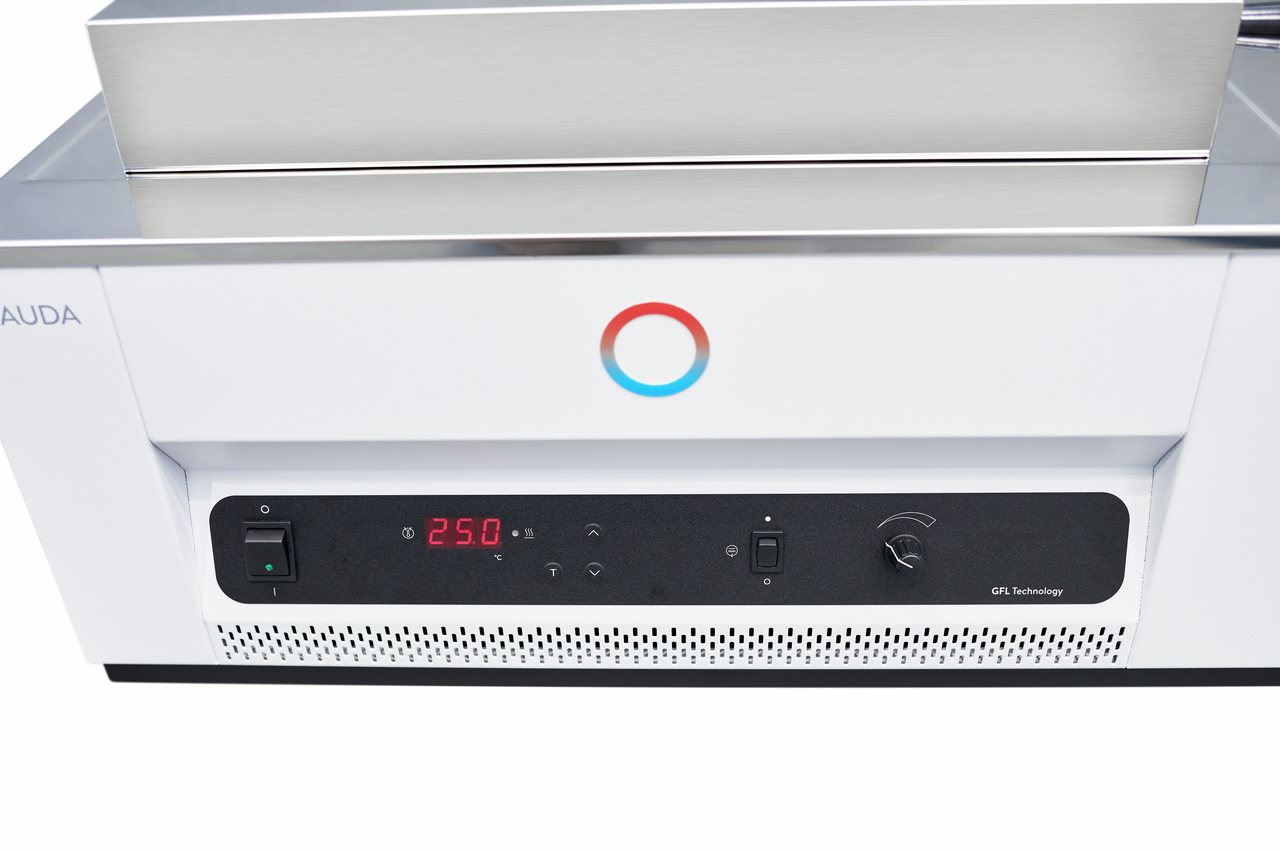

Membrane keypad with concise symbols
1-point temperature controller
Cooling coil as standard
Linear, oscillating shaking motion

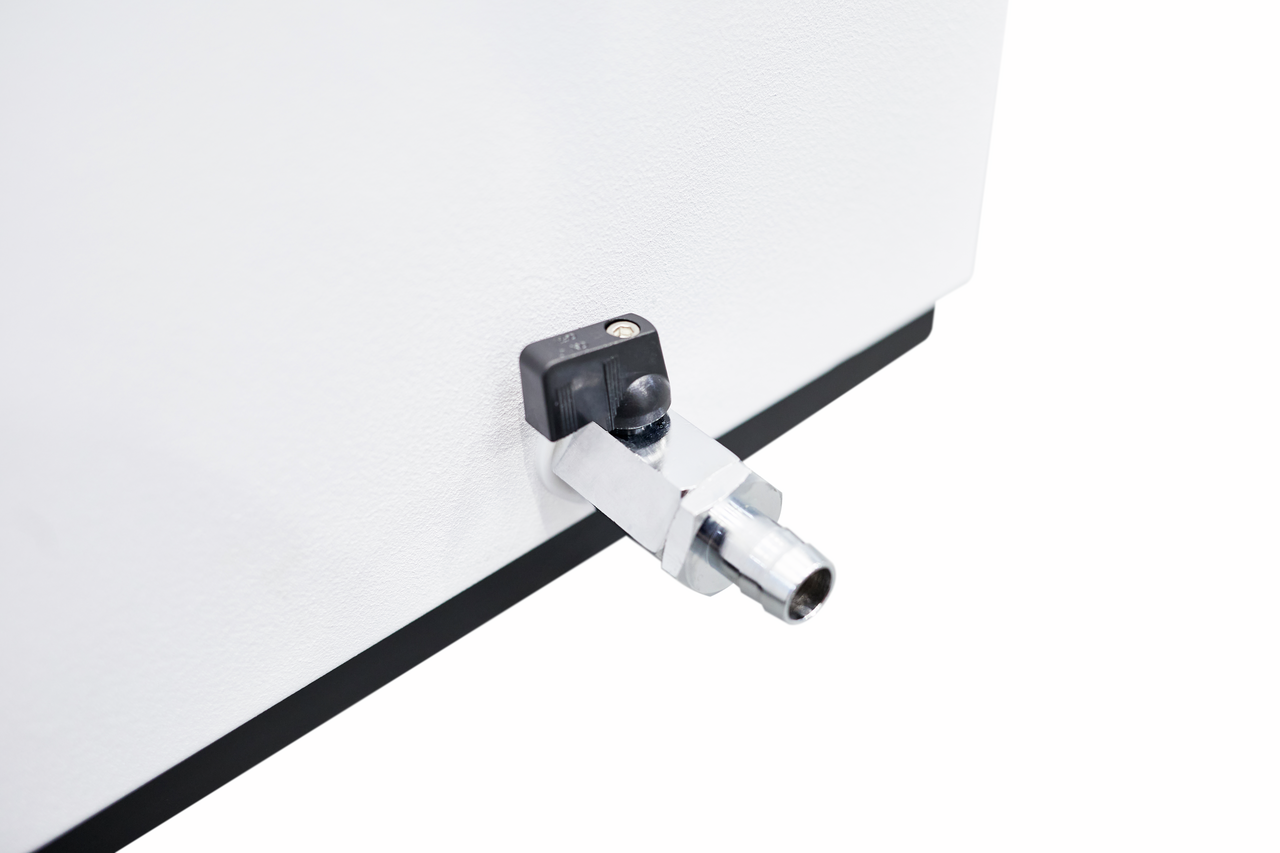

Bath vessel with drain valve
Bath interior, cover, shaking basket and heating element are made of stainless steel
Easy-to-read LED display
Digital setpoint adjustment
Overtemperature protection for operation with non-flammable liquids and water deficiency protection
Shaking device with a gentle start-up and overload-protected
Shaking basket can be easily removed for cleaning purposes.
Heat insulating lid made of stainless steel, double-walled with inner curvature
Lid and perforated tray as standard.
Setting and displaying temperature values in increments of 0.1°C.
Speed continuously adjustable, load-independent, with gently controlled start-up
Electronic monitoring of the temperature controller
The shaking device is guided on corrosion-resistant special ball bearings
Cover frame with condensate channel
prevents condensate from dripping back into the vessels
Working range
Min. working temperature
25 °C
Max. working temperature
99.9 °C
Temperature stability
0.1 ± K
Technical data (according to DIN 12876)
Working temperature range
25 ... 100 °C
Ambient temperature range
10 ... 40 °C
Temperature stability
0.1 ± K
Heater power max.
1.5 kW
Max. power consumption
1.5 kW
Current consumption
10 A
Min. / max. bath volume
9.0 / 24.4 L
Dimensions (WxDxH)
715 x 520 x 330 mm
Weight
29 kg
Shaking amplitude
22 mm
Shaking frequency
10 ... 250 1/min
Power supply
100 V; 50/60 Hz
Power plug
Power cord with plug (NEMA 5-15P)
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
| Hydro Water baths | Water baths | Brochure |
English
|
812,32 kB |
Download document
|
|
|
Chapter Water baths Overall brochure |
Water baths | Brochure |
English
|
2,28 MB |
Download document
|
|
| Hydro Tissue float bath | Water baths | Operating instruction |
English
|
669,19 kB |
Download document
|
|
| Hydro Evaporation water baths | Water baths | Operating instruction |
English
|
854,72 kB |
Download document
|
|
| Hydro Shaking water baths | Water baths | Operating instruction |
English
|
1,06 MB |
Download document
|
|
| Hydro Water baths | Water baths | Operating instruction |
English
|
1,45 MB |
Download document
|
Accessories
Please use the LAUDA accessories finder for additional accessories.
