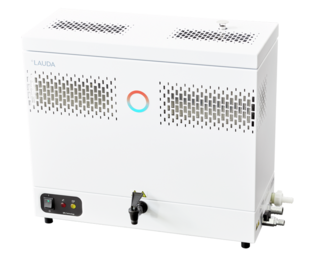

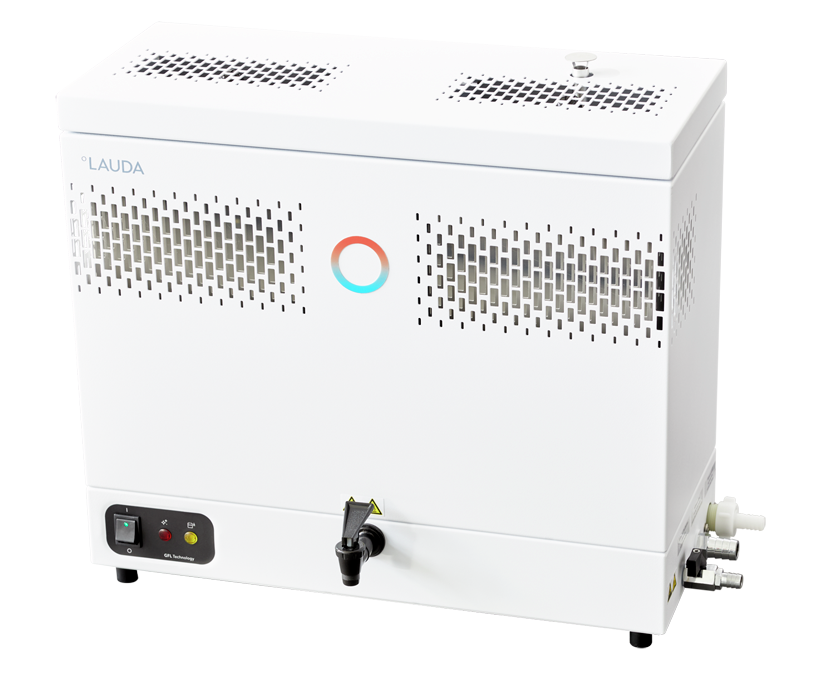

Puridest Water stills
Easy to use and reliable

The highest-quality double distillates

Puridest stills provide ultra-pure, low-gas, germ and pyrogen-free distillate. They purify any raw water to produce a distillate with conductivities down to below 1.6 µS/cm. It complies with DAB regulations and the international pharmacopeia requirements.

These devices are extremely easy to start up and operate. Ultra-pure water can be removed directly after connection to raw water and electricity supplies. The only maintenance required is removing pollutants from the still.

The Puridest devices are an easy and reliable solution anywhere in the world since they do not require any complex service or expensive consumables. LED lamps provide information about operating status and the need for cleaning and make the handling of the Puridest devices even easier.

Overview

Benefits and added value

  • Device protected by water shortage protection in all models
  • Energy savings through distillation of the heated cooling water
  • Devices only require power and raw water
  • No more expensive cartridges, adsorbents and regular regeneration of ion exchangers

Working range

LAUDA Puridest stills do not require any specialists for commissioning and maintenance and do not place any high demands on the raw water that is to be connected. Ultra-pure water is extracted by simply pressing a button.

Product lines

Select up to 4 technical parameters that you want to display in the table

ProductHeater power max.Production outputConductivity stage 1 /25 °CContact materialCompare product
Puridest PD 4 D 7 kW 4 L/h 2.2 µS/cm Stainless steel/Glass Details
Puridest PD 4 DG 5.8 kW 4 L/h 2.2 µS/cm Glass/Glass Details
Puridest PD 8 D 11.5 kW 8 L/h 2.2 µS/cm Stainless steel/Glass Details

Device dimensions

650 x 365 x 390 mm

Puridest PD 4 DG

700 x 390 x 700 mm

Puridest PD 8 D

550 x 280 x 570 mm

Puridest PD 4 D

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Puridest Stills Stills Brochure
English
PDF 1,09 MB Download document Download document
Puridest Stills Operating instruction
English
PDF 867,79 kB Download document Download document
Puridest R Stills Operating instruction
English
PDF 1 MB Download document Download document
Puridest D Stills Operating instruction
English
PDF 1,26 MB Download document Download document
Puridest DG Stills Operating instruction
English
PDF 1,15 MB Download document Download document
Chapter Stills
Overall brochure
Stills Brochure
English
PDF 1,48 MB Download document Download document

Accessories
