Dechlorite Filter with first filling
Features
Water Still for single distillation, suitable for bench mounting
Evaporator easily accessible for cleaning purposes.
Manual cooling water control via outlet temperature

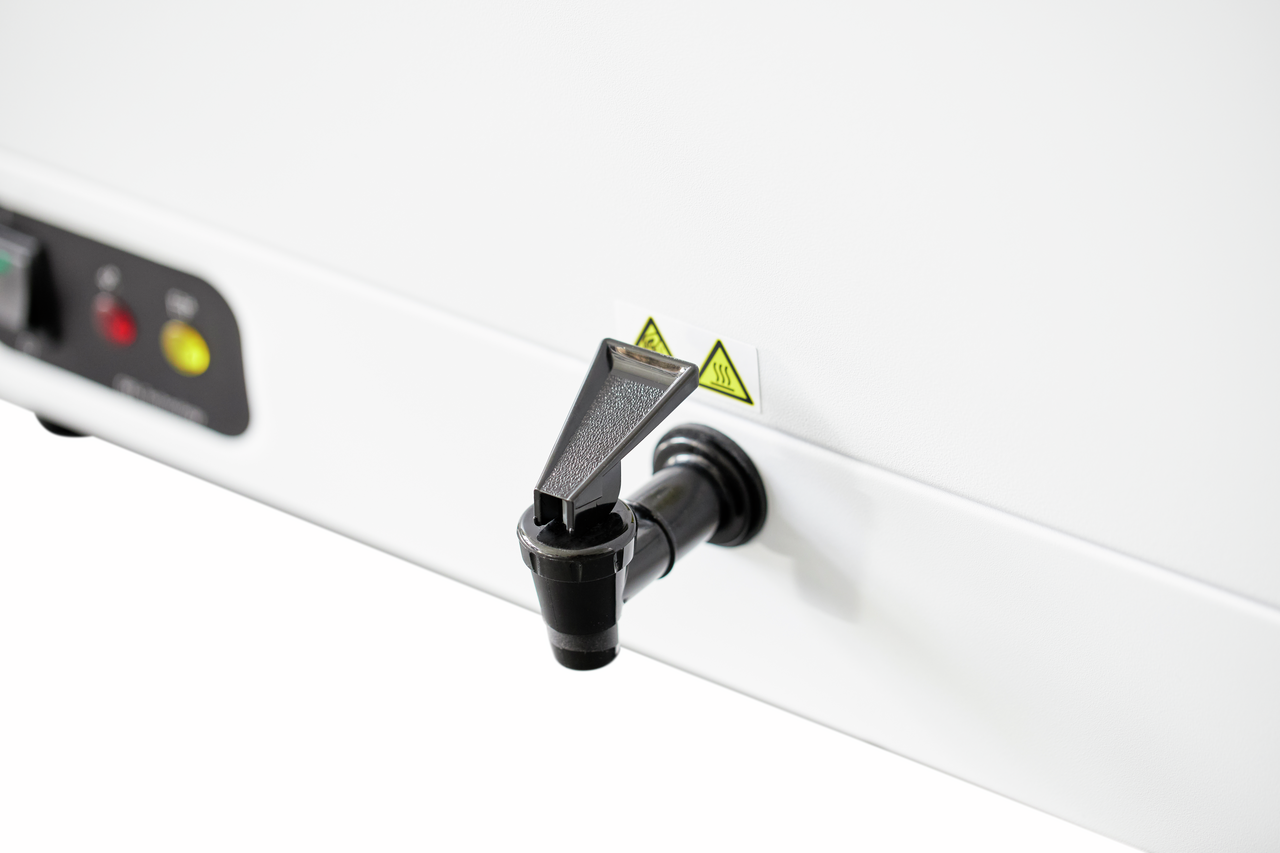

Destillate withdrawal through outlet at the condenser
CO2 degassing through outlet in the condenser.
Heating element, evaporator and condenser made of stainless steel.
Economical energy consumption by distillation of the heated cooling water.
Thermostatic low water cut-off
Housing made of galvanised sheet steel, powder coated
Technical data
Conductivity stage 1 /25 °C
2.3 µS/cm
Production output
4 L/h
Heater power max.
3 kW
Max. power consumption
3 kW
Cooling water flow rate
0.67 L/min
Pressure difference cooling water min.
1 bar
Maximum_Pressure_Cooling_Water
2 bar
Dimensions (WxDxH)
280 x 250 x 490 mm
Weight
8 kg
Ambient temperature range
10 ... 40 °C
Power supply
230 V; 50/60 Hz
Power plug
Power cord with angled plug (CEE7/7)
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
| Puridest Stills | Stills | Brochure |
English
| 1,09 MB |
Download document
| |
| Puridest | Stills | Operating instruction |
English
| 867,79 kB |
Download document
| |
| Puridest R | Stills | Operating instruction |
English
| 1 MB |
Download document
| |
| Puridest D | Stills | Operating instruction |
English
| 1,26 MB |
Download document
| |
| Puridest DG | Stills | Operating instruction |
English
| 1,15 MB |
Download document
| |
|
Chapter Stills Overall brochure | Stills | Brochure |
English
| 1,48 MB |
Download document
|
Accessories
Please use the LAUDA accessories finder for additional accessories.
