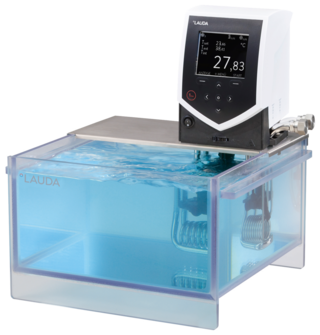

Pump circulation set ECO
性能特征
Thermostatic bath with latest microprocessor technology
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Transparent bath made from polycarbonate
Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Cooling coil as standard
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Programmer with 150 temperature/time segments that can be separated into 5 programs
工作范围
最小工作温度
20 °C
最大工作温度
100 °C
温度稳定性
0.01 ± K
技术特征
工作温度范围
20 ... 100 °C
环境温度范围
5 ... 40 °C
温度稳定性
0.01 ± K
最大加热功率
2.6 kW
最大功率消耗
2.7 kW
电流消耗
12 A
最大输送压力
0,6 bar
泵最大输送流量（压力）
22 L/min
最小/最大浴槽容积
9,5 / 12,0 L
尺寸（宽x深x高）
322 x 331 x 389 mm
重量
8 kg
电源供应
230 V; 50/60 Hz
电源插头
带折角 Schuko 插头的电源线 (CEE7/7)
