循环和过程恒温器 Integral IN 1030 T

Integral IN 1030 T

通過模塊化接口概念，您可以將新的Integral過程恆溫器與過程中的最大靈活性集成在一起。這些設備標配有以太網，USB或Pt 100等接口。可通過模塊輕鬆添加其他接口和通信協議。

订购编号: L002885

咨询产品

返回至概览循环和过程恒温器

性能特征

Process thermostat with integrated cooling system for dynamic temperature control within external circuits

Management of heat transfer liquids with stored properties

Fully electronic continuous controller with PID action for internal & external control

Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids

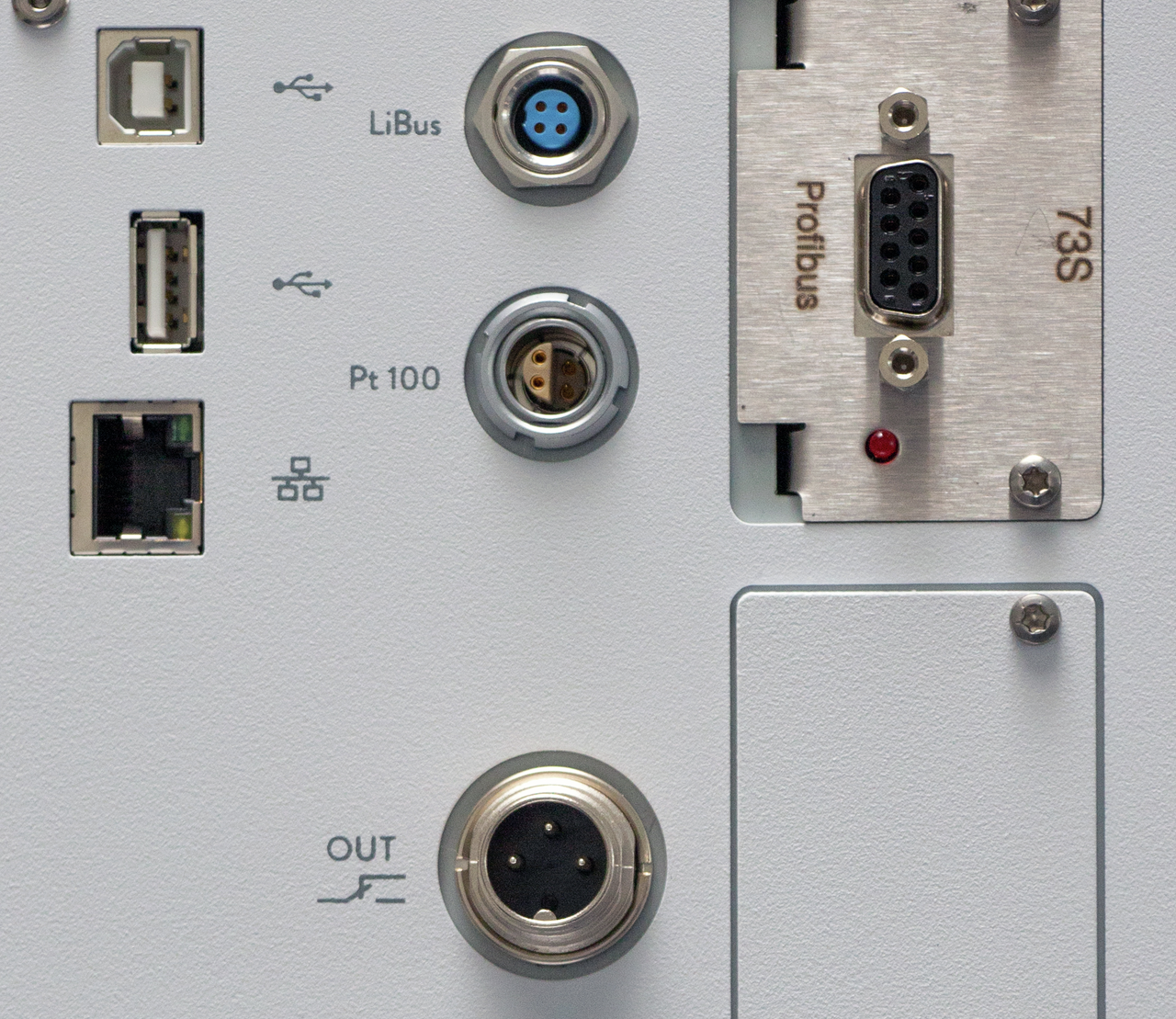

USB and Ethernet interface equipped as standard

Option for upgrading up to 2 additional interfaces (RS 232/485, Profibus, analogue, contact or EtherCAT module)

Digital display of pump pressure

Condenser cooling Air

Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile

Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection

Self adapt function for determination of control parameters

Extremely powerful pressure pump

Port for external Pt100 integrated, second external Pt100 feasible via interface module

Programmer with 150 temperature/time segments that can be separated into 5 programs

Integrated web server for browser based operation in local area networks via PC, tablet or smart phone, secure data transfer due to authentication procedure and encryption

Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024

Clear text menu navigation, six selectable languages DE, EN, FR, ES, IT, RU

SelfCheck Assistant for system diagnosis

PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system

Additional pump for internal circulation

Remote fault indication through floating contact

Adjustable bypass for pressure limiting

SmartCool system for energy-saving digital cooling management including compressor on-off control

工作范围

最小工作温度

-30 °C

最大工作温度

150 °C

温度稳定性

0.1 ± K

技术特征

工作温度范围

-30 ... 150 °C

环境温度范围

5 ... 40 °C

温度稳定性

0.1 ± K

最大加热功率

8 kW

最大功率消耗

11 kW

电流消耗

16 A

最大输送压力

5,5 bar (50 Hz), 7,0 bar (60 Hz)

泵最大输送流量（压力）

60 L/min (50 Hz); 70 L/min (60 Hz)

输入/输出连接螺纹（外部）

M38 x 1,5

输入/输出软管尺寸

1″

最小灌注容积

9.7 L

最大灌注容积

25.5 L

尺寸（宽x深x高）

760 x 650 x 1605 mm

重量

219 kg

声压级

70 dB(A)

电源供应

400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz

电源插头

带插头的电源线 (NEMA L16-20P twist lock; 20 A)

Certification

NRTL 根据 UL 1995:2018，CSA C22.2 no. 236-15 Ed.5th

温度	回火介质	冷却能力 50 赫兹	冷却能力 60 赫兹
100 °C	传热油	11 kW	11 kW
20 °C	乙醇	11 kW	11 kW
10 °C	乙醇	9.5 kW	9.5 kW
0 °C	乙醇	7.1 kW	7.1 kW
-10 °C	乙醇	4.9 kW	4.9 kW
-20 °C	乙醇	3 kW	3 kW
-30 °C	乙醇	1.6 kW	1.6 kW

数据表 Integral IN 1030 T

下载 - 一般产品数据

设备	设备类别	文件类型	语言	格式	尺寸
Integral T New Generation	工艺过程温控器	产品说明手册	中文	PDF	3,09 MB	下载文档
LAUDA Command App	工艺过程温控器	软件	中文	EXE	65,35 MB	下载文档
