性能特征

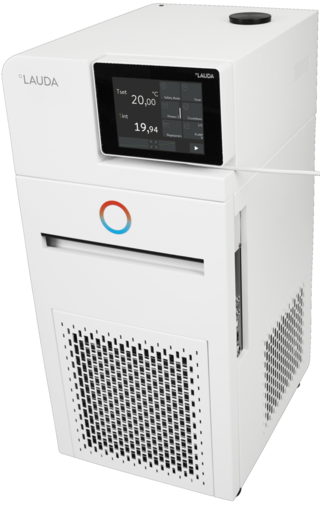

Thermostatic circulator with latest microprocessor technology. Integrated cooling system
Command console can be detached and used as remote control
Timer und count-down-function
SelfCheck Assistant for system diagnosis
Fully electronic continuous controller with PID action for internal & external control
Tower design with small footprint
Bath vessel made of stainless steel (insulated, with overflow and drain tap)
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Large 5,7" Multi-Touch-Color display
User administration for up to 20 user
EasyUse system for simple operation of the whole unit
USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
LAUDA Varioflex pump (pressure/suction) with 8 selectable levels, connections rear
SmartCool system for energy-saving digital cooling management including compressor on-off control
Operation with multi touch display
Data in- and export via USB
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Programmer with up to 100 programs, up to 50 segments each
Low filling volume enables rapid changes in temperature
Hybrid cooling system: (heat removal complementary with cooling water)
工作范围
最小工作温度
-45 °C
最大工作温度
200 °C
温度稳定性
0.05 ± K
技术特征
工作温度范围
-45 ... 200 °C
运行温度范围
-45 ... 200 °C
环境温度范围
5 ... 40 °C
温度稳定性
0.05 ± K
最大加热功率
1.9 kW
最大功率消耗
3.2 kW
电流消耗
16 A
最大输送压力
0,7 bar
Pump_suction
0,4 bar
泵最大输送流量（压力）
22 L/min
输入/输出连接螺纹（外部）
M16 x 1
输入/输出 Ø 橄榄形
13 mm
最小灌注容积
2.4 L
最大灌注容积
4.4 L
尺寸（宽x深x高）
300 x 430 x 675 mm
重量
46 kg
电源供应
200 V; 50/60 Hz
电源插头
不带插头的电源线 (HAR)
| 温度 | 泵级 | 回火介质 | 冷却能力 50 赫兹 | 冷却能力 60 赫兹 |
|---|---|---|---|---|
| 20 °C | 8 | 乙醇 | 0.8 kW | 0.8 kW |
| 10 °C | 8 | 乙醇 | 0.8 kW | 0.8 kW |
| 0 °C | 8 | 乙醇 | 0.8 kW | 0.8 kW |
| -10 °C | 8 | 乙醇 | 0.53 kW | 0.53 kW |
| -20 °C | 4 | 乙醇 | 0.34 kW | 0.34 kW |
| -30 °C | 4 | 乙醇 | 0.15 kW | 0.15 kW |
| -35 °C | 4 | 乙醇 | 0.09 kW | 0.09 kW |
| -40 °C | 4 | 乙醇 | 0.04 kW | 0.04 kW |
| -45 °C | 2 | 乙醇 | 0.01 kW | 0.01 kW |
