校准恒温器 Proline PJL 12 C

Proline PJL 12 C

紧凑型 LAUDA Proline PJ 12 和 PJ 12 C 适合用于最高温度达 300 ºC 的条件下，并且还可专门用于使用 LAUDA 直流冷却器、最低达 -40 °C 的运行环境。

订购编号: L001950

咨询产品

返回至概览校准恒温器

性能特征

Calibration thermostatic bath with latest microprocessor technology and many functions for programming and information and installed cooling coil

Input either via cursor keys, numeric soft keys or both. Additional Tmax key for overtemperature

SelfCheck Assistant for system diagnosis

Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids

Option for upgrading with up to 2 interfaces (RS 232/485, Profibus, analogue or contact modules, Ethernet-USB module)

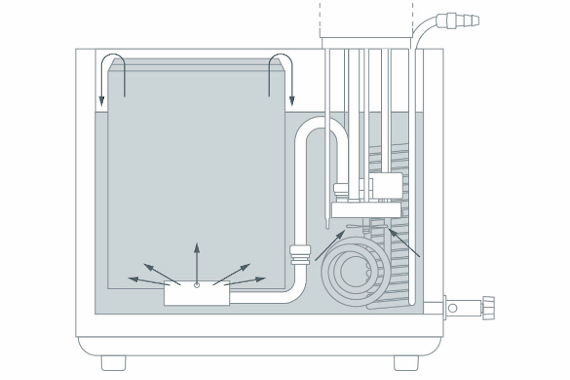

2-chamber construction for constant level in the thermostating chamber

For low temperatures an external cooling source is required

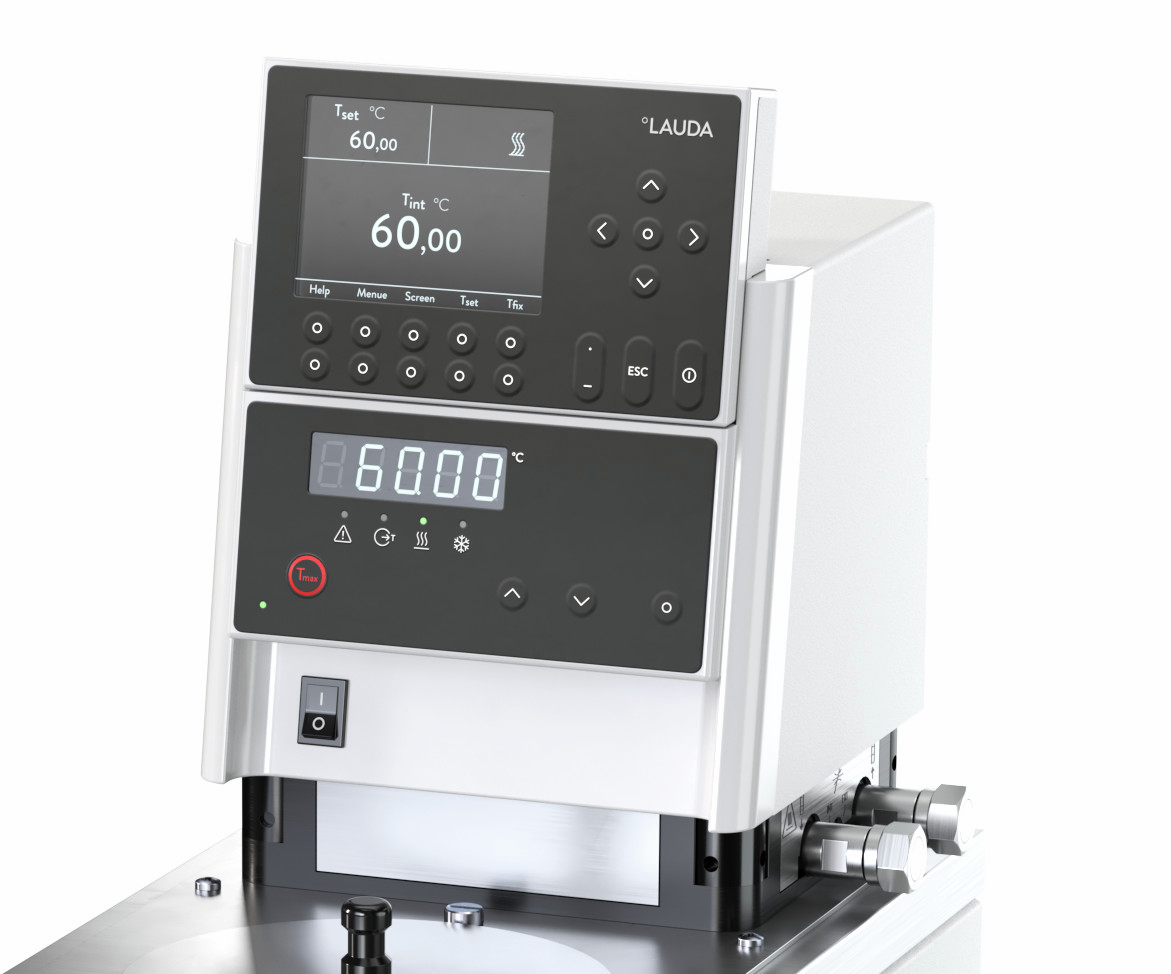

Back-lit graphic LCD display with high resolution and different display modes

Command console can be detached and used as remote control

Fully electronic continuous controller with PID action for internal & external control

LAUDA Varioflex pump (pressure) with 8 selectable levels

Programmer with 150 temperature/time segments that can be separated into 5 programs

Pump connectors on the side and in the back, installed bypass

Additional green LED display for temperature

EasyUse system for simple operation of the whole unit

PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system

Optically decoupled RS 232/485 interface integrated as a standard

Timer function for switching on the thermostat, entering the standyby mode or running of programs

Bath from stainless steel (specially insulated for low-temperature work, with carrying handles and drain tap)

工作范围

最小工作温度

30 °C

最大工作温度

200 °C

温度稳定性

0.01 ± K

技术特征

工作温度范围

30 ... 200 °C

包括水冷却装置的工作温度范围

20 ... 200 °C

运行温度范围

-40 ... 200 °C

环境温度范围

5 ... 40 °C

温度稳定性

0.01 ± K

最大加热功率

1.3 kW

电流消耗

15 A

最大功率消耗

1.5 kW

最大输送压力

0,8 bar

泵最大输送流量（压力）

25 L/min

最小/最大浴槽容积

8,5 / 13,5 L

尺寸（宽x深x高）

220 x 360 x 630 mm

重量

19 kg

电源供应

100 V; 50/60 Hz

电源插头

带插头的电源线 (NEMA 5-20P)

数据表 Proline PJL 12 C

下载 - 一般产品数据

设备	设备类别	文件类型	语言	格式	尺寸
Chapter Calibration thermostats Overall brochure Chinese	专用设备	产品说明手册	中文	PDF	3,63 MB	下载文档

适用配件

Roto rack for PJ 12

Roto rack for PJ 12

如需合适的配件，请使用 LAUDA 配件搜索引擎。

LAUDA 配件搜索引擎
