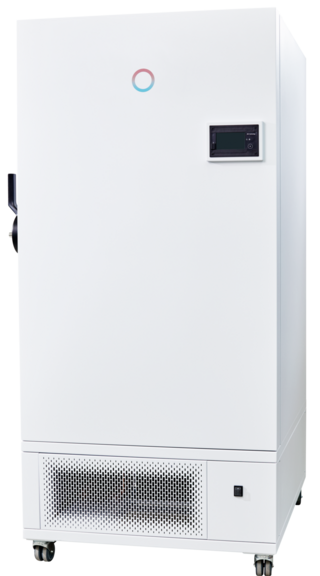

Versafreeze VF 60085

LAUDA Versafreeze 深低温冰箱具有直观、现代化的触摸显示屏,具有多种设置选项,密码保护的访问权限,并通过 LAUDA Cloud 进行安全监控。这样就可以不受地点和设备的限制,对深低温冰箱、冰柜的关键值进行检查和控制。

订购编号: L003380

性能特征

Laboratory upright freezer with reliable monitoring and highly efficient insulation for long-term storage and quality assurance
Protection against unauthorized access to setpoints through password-protected user management
Interior completely made of stainless steel
Built-in data logger for storing temperature and alarm data
Cooling coils blown into the sides ensure direct cold transfer from all sides, high freezing speed and uniform temperature distribution throughout the whole cabinet
Vacuum insulation means more storage space with a reduced footprint
Comfortable touchscreen control unit with digital display for entering and calling up all safety-relevant values
Electronic alarm system and potential-free contact for connection to an in-house alarm system or the central control system
Seven inner compartments, each protected against loss of cold by an insulating door
IIOT ready via powerful Ethernet interface
Energy-saving, maintenance-free refrigeration system with fully hermetic high-performance compressors
Two lead-throughs with an internal diameter of 13 mm as standard, for inserting control sensors, eg Type Pt100
Limit values ​​for high and low temperature alarm adjustable
Display and alarm functions are maintained in the event of a power failure (battery backup)
For long-term storage and quality assurance of organic substances and other materials
RS 485 interface for trouble-free data transfer
Environmentally friendly, future-proof natural refrigerants
Magnetic sealing system reliably prevents the door / lid seals from freezing on

工作范围

最小工作温度

-86 °C

最大工作温度

-50 °C

Technical data

工作温度范围
-86 ... -50 °C
温度稳定性
2 ± K
环境温度范围
15 ... 28 °C
有效空间
584 L
有效空间尺寸(宽x深x高)
738 x 600 x 1320 mm
尺寸(宽x深x高)
980 x 1029 x 1965 mm
重量
356 kg
冷却时间
从 20 °C 到 -86 °C 在 6 h
解冻时间
从 -86 °C 到 0 °C 在 23 h
电源供应
230 V; 50 Hz
电源插头
带插头的电源线 (GB2099, 15934)
