Roto rack for PJ 12
性能特征
Calibration thermostatic bath with latest microprocessor technology and installed cooling coil
EasyUse system for simple operation of the whole unit
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Option for upgrading with up to 2 interfaces (RS 232/485, Profibus, analogue or contact modules, Ethernet-USB module)
Bath vessel made of stainless steel (insulated, with handles and drain tap)
Easily readable green LED display for temperature
SelfCheck Assistant for system diagnosis
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids

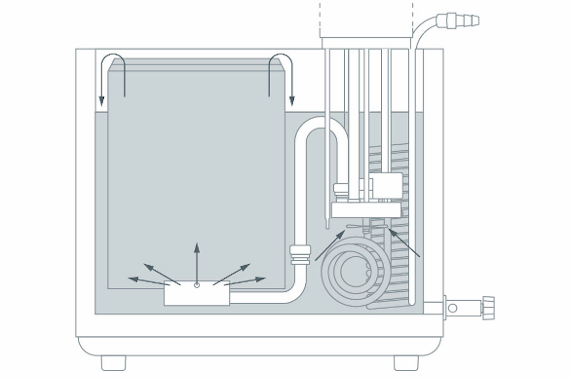

2-chamber construction for constant level in the thermostating chamber
User-friendly menu guidance with simplest 3-key operation
Fully electronic continuous controller with PID action for internal & external control
LAUDA Varioflex pump (pressure) with 8 selectable levels
Pump connectors on the side and in the back, installed bypass
工作范围
最小工作温度
30 °C
最大工作温度
300 °C
温度稳定性
0.01 ± K
技术特征
工作温度范围
30 ... 300 °C
包括水冷却装置的工作温度范围
20 ... 300 °C
运行温度范围
0 ... 300 °C
环境温度范围
5 ... 40 °C
温度稳定性
0.01 ± K
最大加热功率
3.6 kW
电流消耗
16 A
最大功率消耗
3.7 kW
最大输送压力
0,8 bar
泵最大输送流量（压力）
25 L/min
最小/最大浴槽容积
8,5 / 13,5 L
尺寸（宽x深x高）
220 x 360 x 574 mm
重量
20 kg
电源供应
230 V; 50/60 Hz
电源插头
带折角 Schuko 插头的电源线 (CEE7/7)
