性能特征
Calibration thermostatic bath with latest microprocessor technology and many functions for programming and information and installed cooling coil
Input either via cursor keys, numeric soft keys or both. Additional Tmax key for overtemperature
SelfCheck Assistant for system diagnosis
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Option for upgrading with up to 2 interfaces (RS 232/485, Profibus, analogue or contact modules, Ethernet-USB module)

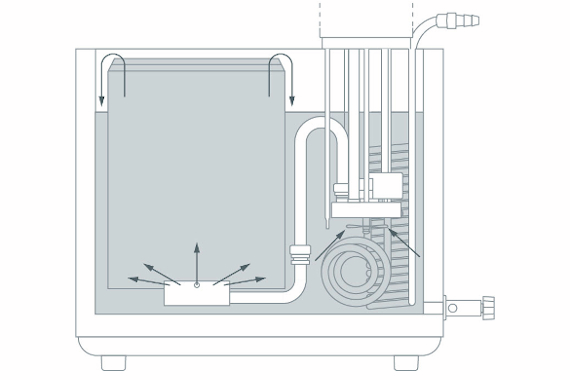

2-chamber construction for constant level in the thermostating chamber

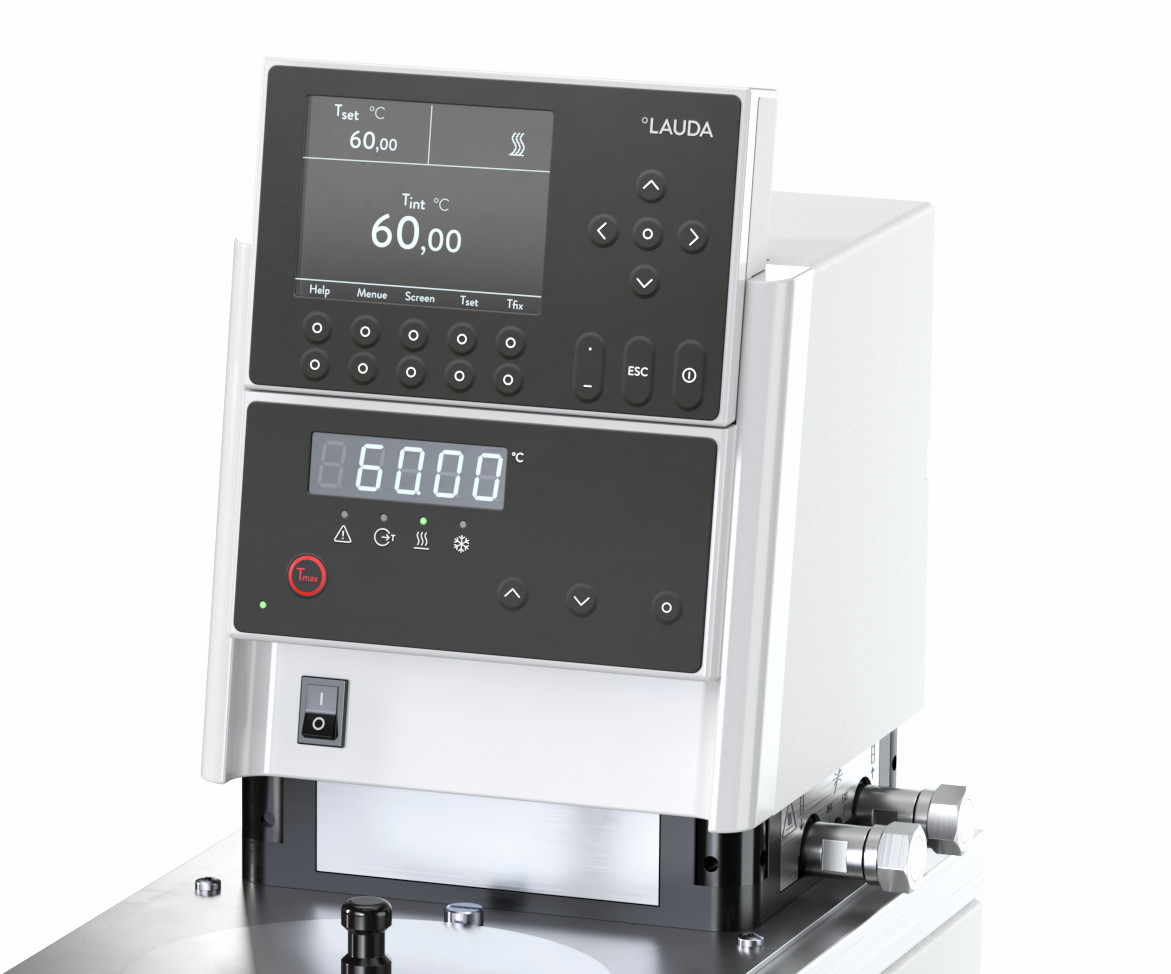

Back-lit graphic LCD display with high resolution and different display modes
Command console can be detached and used as remote control
Fully electronic continuous controller with PID action for internal & external control
LAUDA Varioflex pump (pressure) with 8 selectable levels
Programmer with 150 temperature/time segments that can be separated into 5 programs
Pump connectors on the side and in the back, installed bypass
Additional green LED display for temperature
EasyUse system for simple operation of the whole unit
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Optically decoupled RS 232/485 interface integrated as a standard
Timer function for switching on the thermostat, entering the standyby mode or running of programs
Bath vessel made of stainless steel (insulated, with handles and drain tap)
工作范围
最小工作温度
30 °C
最大工作温度
300 °C
温度稳定性
0.01 ± K
技术特征
工作温度范围
30 ... 300 °C
包括水冷却装置的工作温度范围
20 ... 300 °C
运行温度范围
0 ... 300 °C
环境温度范围
5 ... 40 °C
温度稳定性
0.01 ± K
最大加热功率
2.9 kW
电流消耗
13 A
最大功率消耗
3 kW
最大输送压力
0,8 bar
泵最大输送流量（压力）
25 L/min
最小/最大浴槽容积
8,5 / 13,5 L
尺寸（宽x深x高）
220 x 360 x 630 mm
重量
19 kg
电源供应
230 V; 50/60 Hz
电源插头
带折角插头的电源线 (BS1363)
