Shaking water baths Hydro H 20 S

Hydro H 20 S

LAUDA Hydro 振动水浴槽的内置转速调节器可实现不受负载影响的无级可调振动，并具有柔和的启动过程。两种振动水浴槽 H 20 SW 和 H 20 SOW 均标配冷却盘管。通过与家用供水系统或市售循环冷却器连接，振动水浴槽的温度范围可向下扩展至 10°C。

订购编号: L002930

咨询产品

返回至概览振荡浴槽

性能特征

Shaking water bath for exactly reproducible temperatures

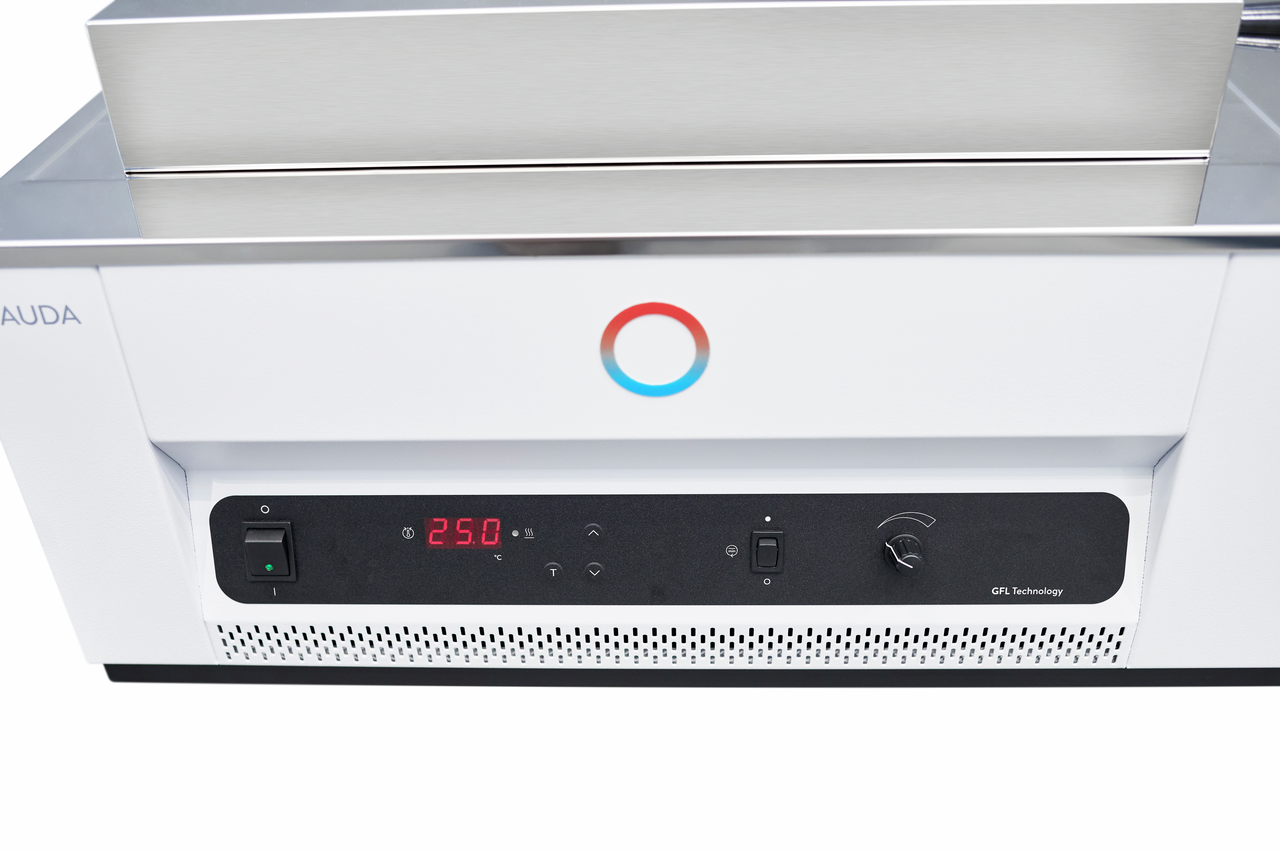

Membrane keypad with concise symbols

1-point temperature controller

Shaking device with a gentle start-up and overload-protected

Shaking basket can be easily removed for cleaning purposes.

Heat insulating lid made of stainless steel, double-walled with inner curvature

Lid and perforated tray as standard.

Easy-to-read LED display

Digital setpoint adjustment

Overtemperature protection for operation with non-flammable liquids and water deficiency protection

The shaking device is guided on corrosion-resistant special ball bearings

Cover frame with condensate channel

prevents condensate from dripping back into the vessels

Setting and displaying temperature values in increments of 0.1°C.

Speed continuously adjustable, load-independent, with gently controlled start-up

Electronic monitoring of the temperature controller

Linear, oscillating shaking motion

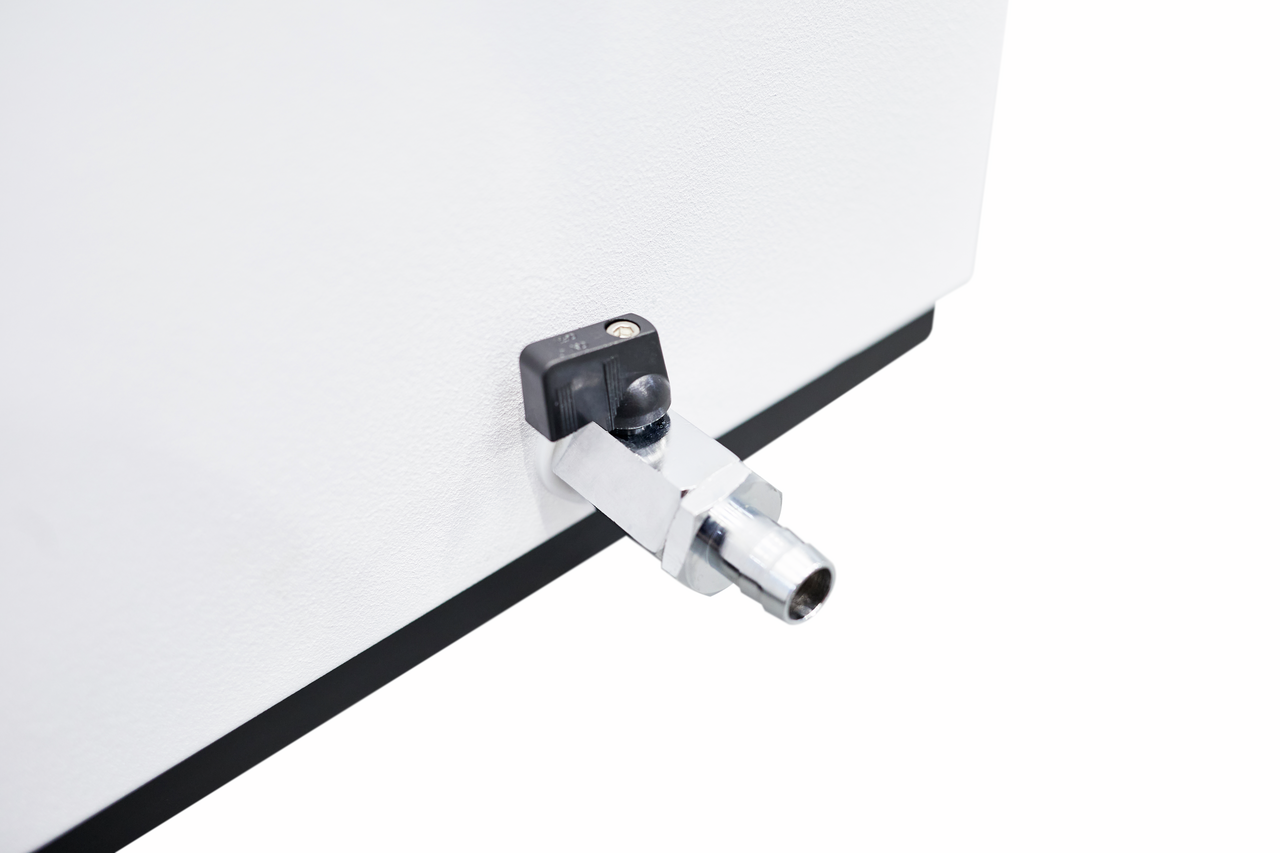

Bath vessel with drain valve

Bath interior, cover, shaking basket and heating element are made of stainless steel

工作范围

最小工作温度

25 °C

最大工作温度

99.9 °C

温度稳定性

0.1 ± K

技术特征

工作温度范围

25 ... 100 °C

环境温度范围

10 ... 40 °C

温度稳定性

0.1 ± K

最大加热功率

1.5 kW

最大功率消耗

1.5 kW

电流消耗

10 A

最小/最大浴槽容积

9,0 / 24,4 L

尺寸（宽x深x高）

715 x 520 x 330 mm

重量

28 kg

振荡振幅

22 mm

振荡频率

10 ... 250 1/min

电源供应

100 V; 50/60 Hz

电源插头

带插头的电源线 (NEMA 5-15P)

数据表 Hydro H 20 S

下载 - 一般产品数据

设备	设备类别	文件类型	语言	格式	尺寸
Chapter Water baths Overall brochure Chinese	水浴槽	产品说明手册	中文	PDF	4,07 MB	下载文档
Hydro 水浴槽	水浴槽	产品说明手册	中文	PDF	5,87 MB	下载文档

适用配件

Stainless steel test tube rack with 104 openings

Water level controller

Water level controller

Shaking tray

如需合适的配件，请使用 LAUDA 配件搜索引擎。

LAUDA 配件搜索引擎
