双级蒸馏器 Puridest PD 4 D

Puridest PD 4 D

LAUDA Puridest 蒸馏器不需要专家进行调试和维护，对于接入的原水也没有过高的要求。只需轻松按下按钮，即可提取高纯度的水。

订购编号: L003118

咨询产品

返回至概览双级蒸馏器

性能特征

Water Still (fully automatic) for double distillation, suitable for both bench and wall mounting

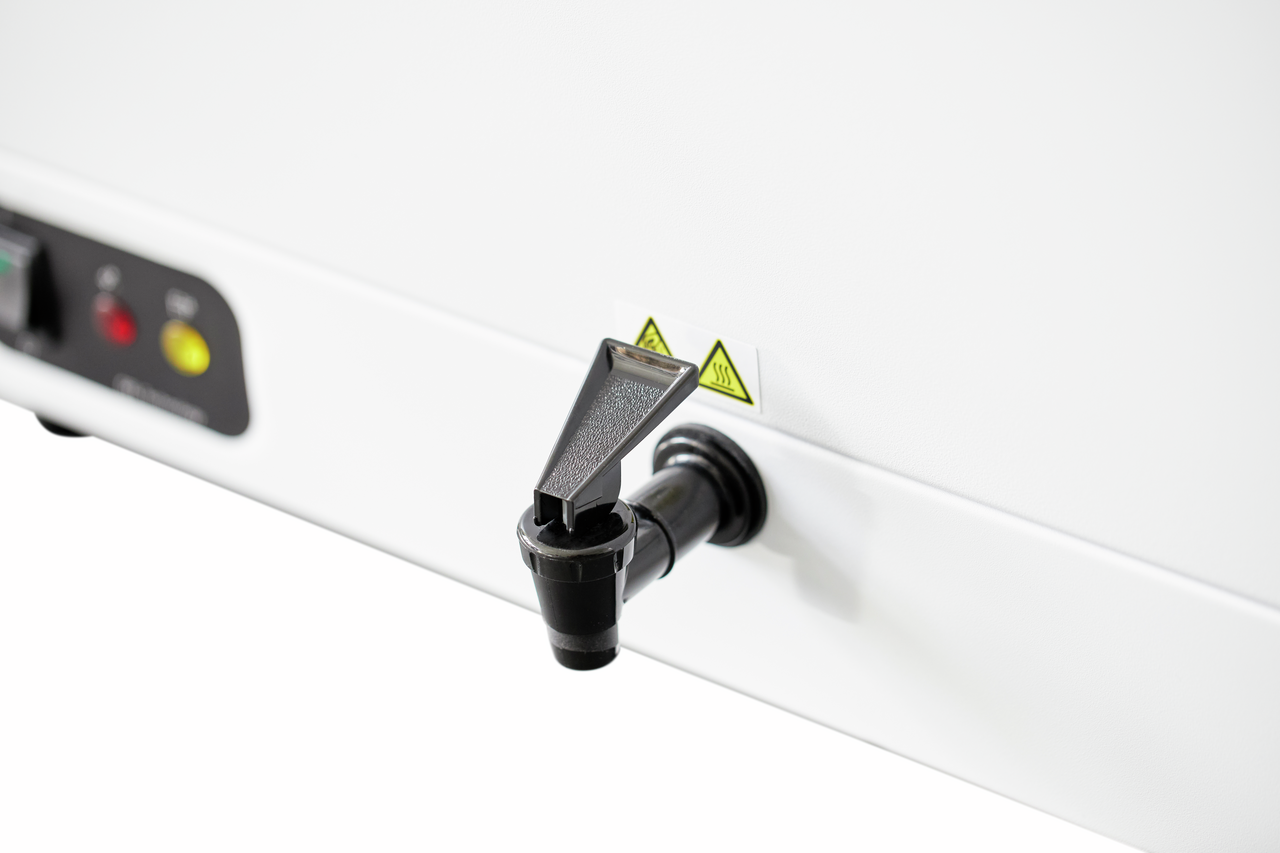

Outlet with dust guard shield made of Borosilicate glass 3.3 for double distillate

Solenoid valve to control the water supply

Evaporator easily accessible for cleaning purposes.

Electronic level control during the whole distilling process.

Housing made of galvanised sheet steel, powder coated

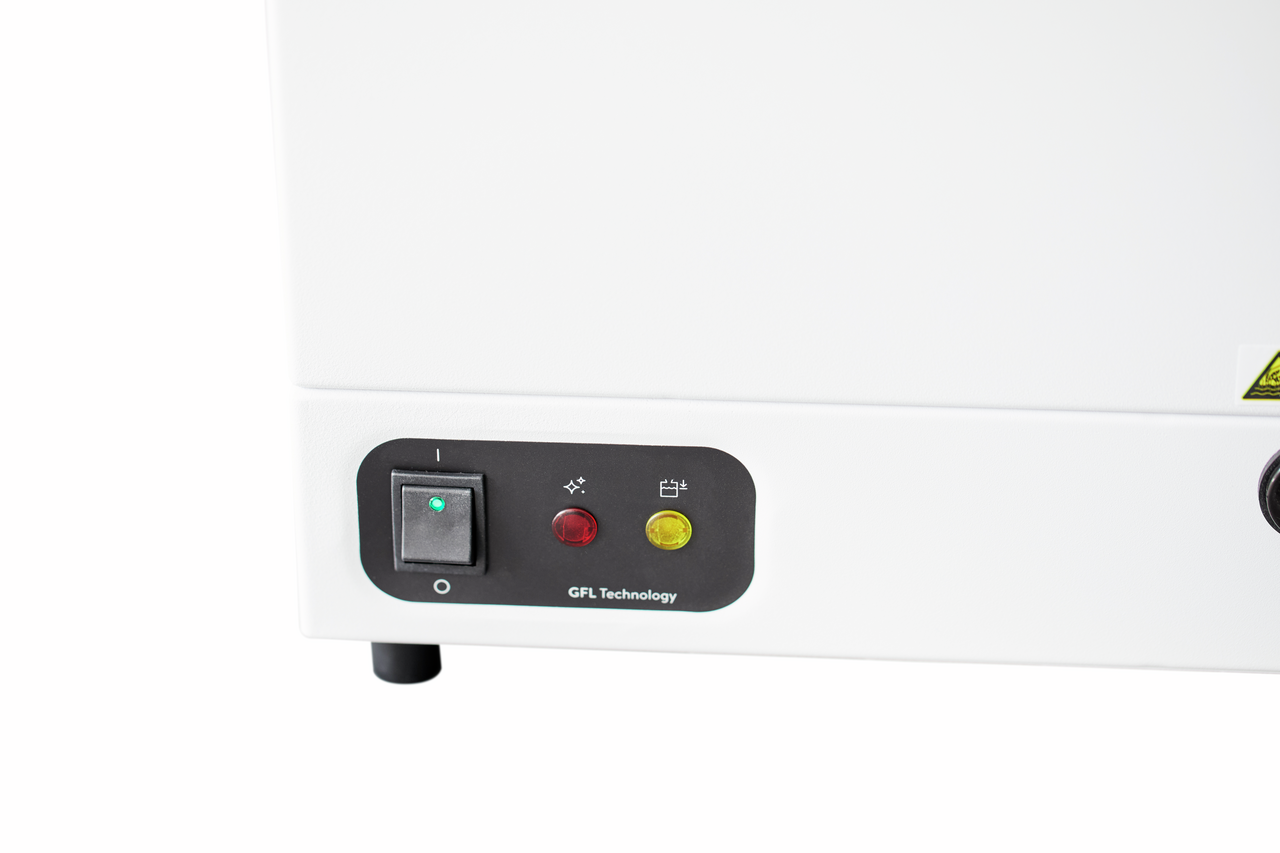

Main switch with pilot lamp for the monitoring of both distillation stages at the front of the unit

Condenser (cooling coil) 1st stage made of stainless steel

Economical energy consumption by distillation of the heated cooling water.

CO2 degassing through outlet in the condenser.

Double-action low water cut-off through float switch and thermostatic safety switch.

Double-walled housing

Valve made of Borosilicate glass 3.3 with PTFE plunger for single distillate

Condenser (cooling coil) 2nd stage including the baffle made of DURAN® Borosilicate glass 3.3.

Water saving through automatic water cut-off. Unnecessary water consumption will be avoided.

Electronic contamination monitoring of the still with distillation stop and visual cleaning instruction

Heating element and evaporator made of stainless steel.

Technical data

25°C 时单馏出物电导率

2.2 µS/cm

25 °C 时双馏出物电导率

1.6 µS/cm

生产量

4 L/h

最大加热功率

7 kW

最大功率消耗

7 kW

冷却水消耗

2 L/min

最小冷却水压差

3 bar

Maximum_Pressure_Cooling_Water

7 bar

尺寸（宽x深x高）

550 x 280 x 570 mm

重量

28 kg

环境温度范围

10 ... 40 °C

电源供应

220 V; 3/PE; 50/60 Hz

电源插头

不带插头的电源线 (HAR)

数据表 Puridest PD 4 D

下载 - 一般产品数据

设备	设备类别	文件类型	语言	格式	尺寸
Puridest 蒸馏水器	蒸馏器	产品说明手册	中文	PDF	1,05 MB	下载文档
Chapter Stills Overall brochure Chinese	蒸馏器	产品说明手册	中文	PDF	3,18 MB	下载文档

适用配件

Dechlorite Filter with first filling

Dechlorite Filter with first filling

Phosphate Cartridge with first filling

Phosphate Cartridge with first filling

Pre-Filter 1 µm with fine filter candle

Pre-Filter 1 µm with fine filter candle
