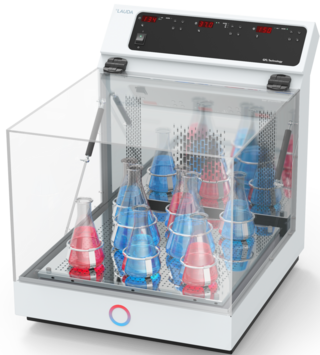

Varioshake VS 60 OI

The shaking incubators from the LAUDA Varioshake product line offer a usable volume of 45 to 150 l with shaking areas up to 676 x 540 mm and excellent temperature stability of ±0.2 K.

Order no.: L003052
Inquire about product
Back to overview Shaking incubators

Features

Shaking incubator with orbital movement for precise and reproducible research
Membrane keyboard with distinctive symbols.
Timer, microprocessor-controlled, with remaining time display and acoustic signal at the end of the process
Cooling coil for applications below room temperature
RS 232 serial interface for trouble-free data transfer
Constant speed, independent of load
Temperature display and setting digitally via LED display, in steps of 0.1 ° C
PID type temperature control
Timer adjustable from 1 min. up to 999 hours
Switching off of the shaking movement and the heating when the doors are opened
Drive by an overload-protected AC motor
Excellent for continuous use
User-friendly microprocessor technology
Limit values ​​for over and under temperature alarm (optical and acoustic) can be set
Hinged acrylic glass hood
Additional electromechanical temperature limiter
Compact, low-wear mechanism with mass balancing for a secure stand
Outer housing made of electrolytically galvanized sheet steel, powder-coated

Working range

Min. working temperature

28 °C

Max. working temperature

70 °C

Temperature stability

0.2 ± K

Technical data (according to DIN 12876)

Working temperature range
28 ... 70 °C
Working temperature range with water cooling
20 ... 70 °C
Ambient temperature range
10 ... 30 °C
Heater power max.
0.5 kW
Max. power consumption
0.65 kW
Shaking amplitude
30 mm
Shaking frequency
20 ... 250 1/min
Usable volume
68 L
Interior dimensions (WxDxH)
450 x 450 x 338 mm
Dimensions (WxDxH)
559 x 687 x 628 mm
Weight
54 kg
Power plug
Power cord with angled plug (CEE7/7)
Power supply
230 V; 50/60 Hz
Download Data sheet Varioshake VS 60 OI

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Varioshake Shakers Shakers Brochure
English
PDF 883,78 kB Download document Download document
Varioshake Shakers Shakers Operating instruction
English
PDF 1,19 MB Download document Download document
Varioshake Shaking incubator Shakers Operating instruction
English
PDF 864,63 kB Download document Download document
Chapter Shakers
Overall brochure 		Shakers Brochure
English
PDF 1,29 MB Download document Download document
Varioshake Overhead Shaker Shakers Operating instruction
English
PDF 849,67 kB Download document Download document

Accessories

Universal mount for Shakers, for all VS 15
Universal mount for Shakers, for all VS 15
Adhesive mat, black, 200 x 200 mm,
Non-slip mat for Shakers, for all VS 15
Non-slip mat for Shakers, for all VS 15
Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
