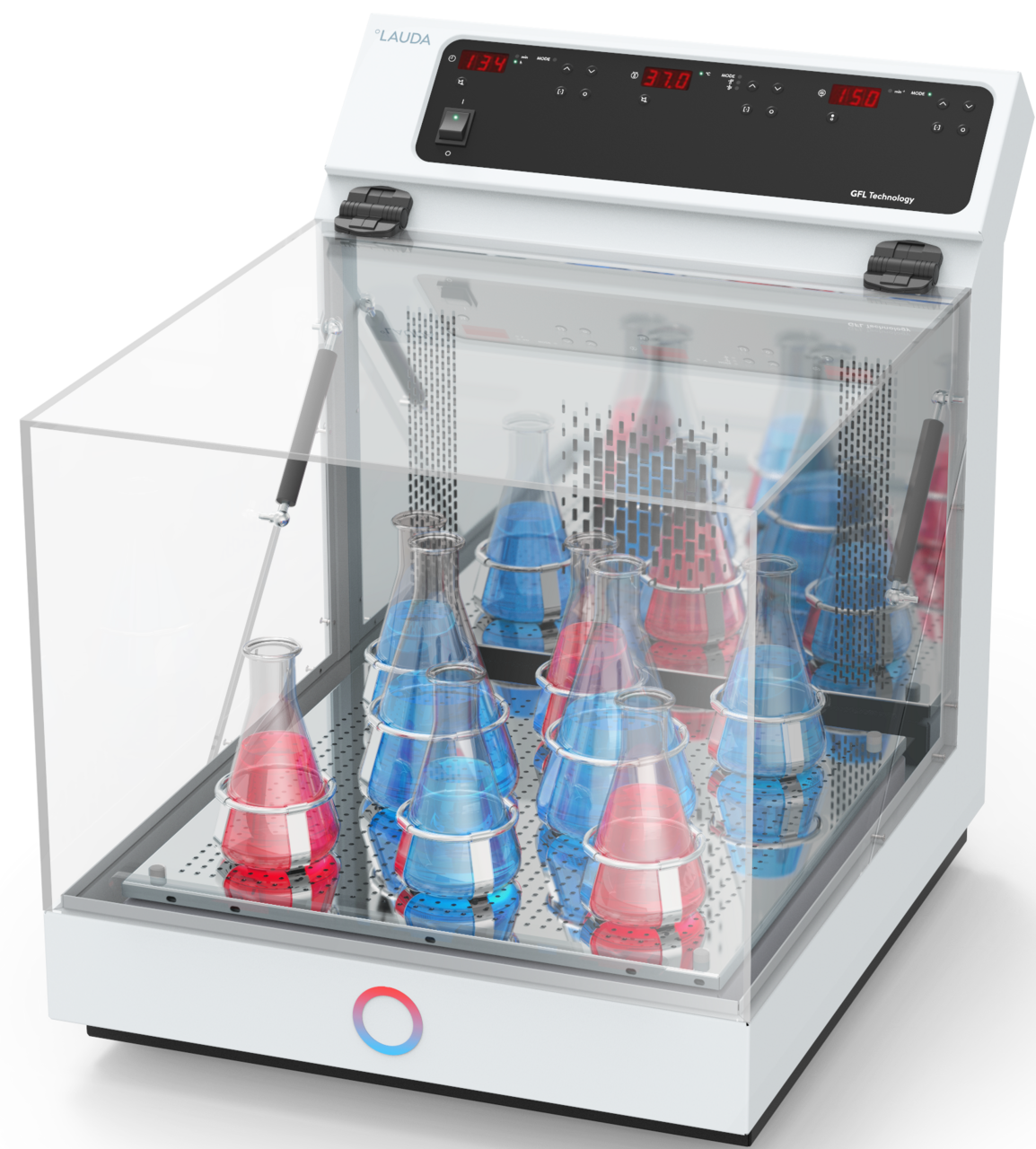

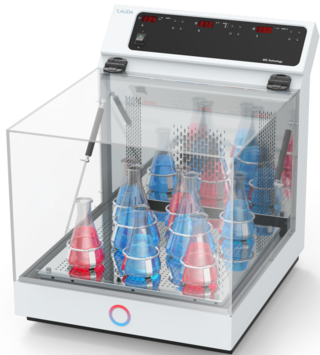

Varioshake Shaking Incubators
Reliable mixing, shaking and temperature control
Request advising
Back to overview Shaking incubators

Mix, shake and control temperature reliably with Varioshake shaking incubators

Simple and compact or robust with several shaking levels: LAUDA Varioshake shaking incubators are specialized for mixing and shaking with exactly reproducible circular movements and temperatures up to 70 °C.

The Varioshake shaking incubators are well-suited for applications such as homogenizations, incubations, fermentation or chemical and biochemical reactions.

Thanks to their compact design, these shaking incubators save space fit into any laboratory environment. They can be used both for standard work with low requirements as well as a special solution for variable special applications.

Overview

Benefits and added value

  • Available in three sizes
  • Also permit extremely demanding applications with active temperature control and high temperature stability.
  • Compact, efficient, powerful

Working range

The shaking incubators from the LAUDA Varioshake product line offer a usable volume of 45 to 150 l with shaking areas up to 676 x 540 mm and excellent temperature stability of ±0.2 K.

Min. working temperature

Min. working temperature

-25 °C

Max. working temperature

Max. working temperature

100 °C

Temperature stability

Temperature stability

0.2 ± K

Product lines

Select up to 4 technical parameters that you want to display in the table

ProductMovement typeMax. loadShaking amplitudeCompare product
Varioshake VS 45 OI orbital 25 mm Details
Varioshake VS 60 OI orbital 30 mm Details
Varioshake VS 150 OI orbital 20 kg 25 mm Details

Device dimensions

930 x 890 x 820 mm

Varioshake VS 150 OI

710 x 650 x 710 mm

Varioshake VS 45 OI

559 x 687 x 628 mm

Varioshake VS 60 OI

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Varioshake Shakers Shakers Brochure
English
PDF 883,78 kB Download document Download document
Varioshake Shakers Shakers Operating instruction
English
PDF 1,19 MB Download document Download document
Varioshake Shaking incubator VS 60 OI Shakers Operating instruction
English
PDF 864,63 kB Download document Download document
Chapter Shakers
Overall brochure 		Shakers Brochure
English
PDF 1,29 MB Download document Download document
Varioshake Overhead Shaker Shakers Operating instruction
English
PDF 849,67 kB Download document Download document
Varioshake Shaking incubator VS 45 OI, VS 150 OI Shakers Operating instruction
English
PDF 967,45 kB Download document Download document

Accessories

Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
