Universal mount for Shakers, for all VS 15
Features

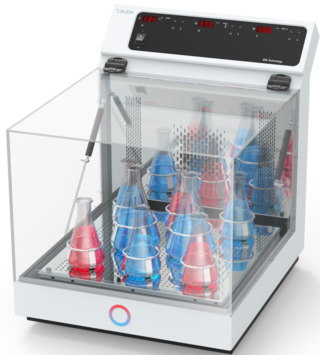

Shaking incubator with orbital movement for precise and reproducible research
Membrane keyboard with distinctive symbols.
Timer, microprocessor-controlled, with remaining time display and acoustic signal at the end of the process
Cooling coil for applications below room temperature
RS 232 serial interface for trouble-free data transfer
Constant speed, independent of load
Temperature display and setting digitally via LED display, in steps of 0.1 ° C
PID type temperature control
Timer adjustable from 1 min. up to 999 hours
Switching off of the shaking movement and the heating when the doors are opened
Drive by an overload-protected AC motor
Excellent for continuous use
User-friendly microprocessor technology
Limit values for over and under temperature alarm (optical and acoustic) can be set
Hinged acrylic glass hood
Additional electromechanical temperature limiter
Compact, low-wear mechanism with mass balancing for a secure stand
Outer housing made of electrolytically galvanized sheet steel, powder-coated
Working range
Working temperature min.
28 °C
Max. working temperature
70 °C
Temperature stability
0.2 ± K
Technical data (according to DIN 12876)
Working temperature range
28 ... 70 °C
Working temperature range with water cooling
20 ... 70 °C
Ambient temperature range
10 ... 30 °C
Heater power max.
0.5 kW
Max. power consumption
0.65 kW
Shaking amplitude
30 mm
Shaking frequency
20 ... 250 1/min
Usable volume
68 L
Usable volume
450 x 450 x 338 mm
Dimensions (WxDxH)
559 x 687 x 628 mm
weight_PIM
54 kg
Power plug
Power cord with angled plug (BS1363)
Power supply
230 V; 50/60 Hz
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
| Varioshake Shakers | Shakers | Brochure |
English
|
878,11 kB |
Download document
|
|
| Varioshake Shakers | Shakers | Operating instruction |
English
|
1,19 MB |
Download document
|
|
| Varioshake Shaking incubator | Shakers | Operating instruction |
English
|
864,63 kB |
Download document
|
|
|
Chapter Shakers Overall brochure |
Shakers | Brochure |
English
|
1,29 MB |
Download document
|
|
| Varioshake Overhead Shaker | Shakers | Operating instruction |
English
|
849,67 kB |
Download document
|
Accessories
Please use the LAUDA accessories finder for additional accessories.
