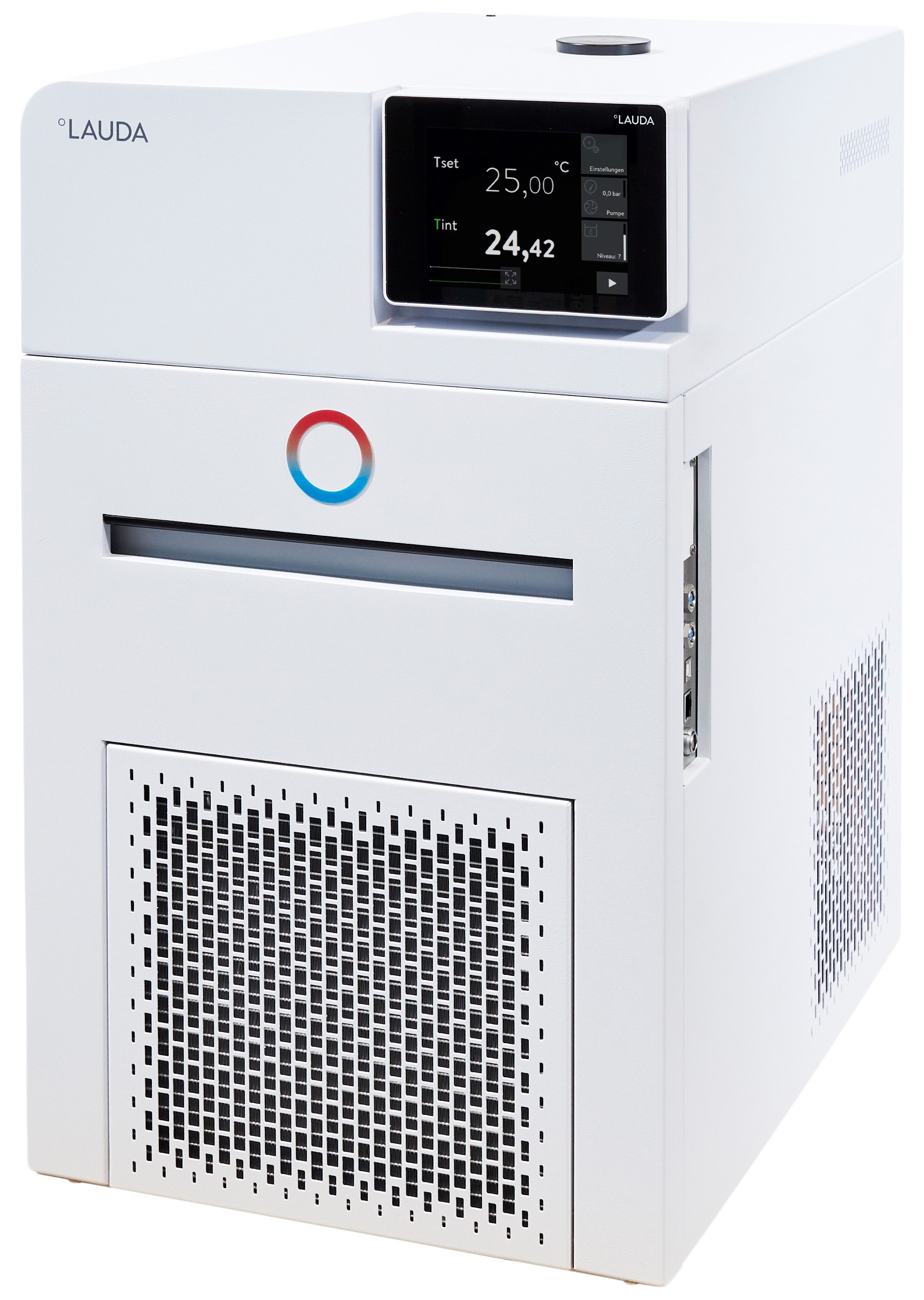

Compact circulation thermostats for professional temperature control from -90 to 250°C
The LAUDA PRO circulation thermostats with low active liquid volume enable rapid temperature change with low operating costs and material consumption.
There are two innovative operating units available for selection: Base or Command Touch. Both are removable and can be used as remote control.
The compact construction permits space-saving installation of the thermostats. With its quick temperature changes, it is well-suited for external applications.
Overview
Benefits and added value
-
Tower design for small footprint
-

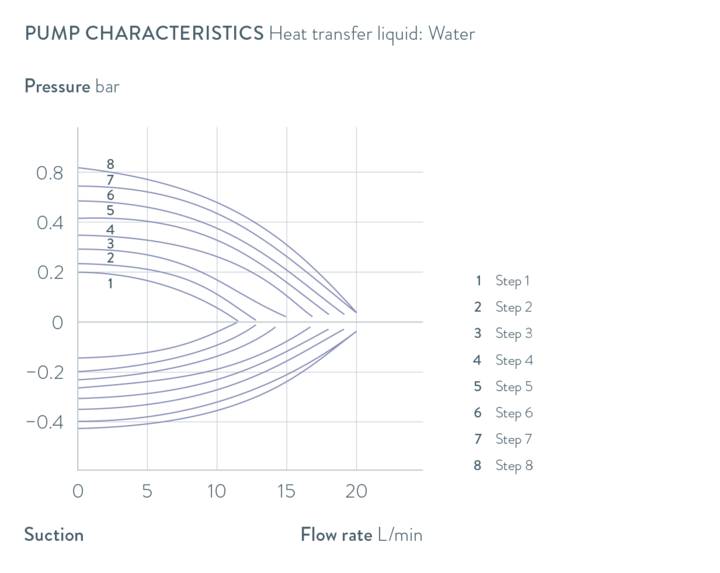

LAUDA Vario flex pump with 8 output levels, pump connections at rear
-
SmartCool system for energy-saving digital cooling control including automatic compressor control
![](/fileadmin/_processed_/0/8/csm_PRO_Umwaelzthermostat_01eab40100.png)
Working range
The PRO heating circulation thermostats are designed for external applications up to 250°C. The low filling volume permits rapid heating up in the connected application. The compact construction permits space-saving installation of the thermostats. An integrated cooling coil, fitted as standard, provides cooling. The PRO cooling circulation thermostats are ideal for external applications where rapid temperature changes are required. The cooling output of 0.6 and 0.8 kW, combined with a very low filling volume permit these rapid temperature changes. The thermostats have a working temperature range of -40 to 200°C. All types are fitted with a pressure-suction pump. Hybrid cooling of the refrigerating machine permits cooling using ambient air or, in addition, using cooling water.
![Working temperature min.](/pim/image/L000557/icon-produkt-arbeitstemperatur-min.png)
Working temperature min.
80 °C
![Max. working temperature](/pim/image/L000557/icon-produkt-arbeitstemperatur-max.png)
Max. working temperature
250 °C
![Temperature stability](/pim/image/L000557/icon-produkt-temperaturkonstanz.png)
Temperature stability
0.05 ± K
Product lines
Select up to 4 technical parameters that you want to display in the table
Product | Min. temperature range | Max. working temp | Heating output | Cooling output at 20 °C 50 Hz | Compare product | |
---|---|---|---|---|---|---|
PRO P 2 E | 80 °C | 250 °C | 2.5 kW | Details | ||
PRO P 2 EC | 80 °C | 250 °C | 2.5 kW | Details | ||
PRO RP 240 E | -40 °C | 200 °C | 2.5 kW | 0.6 kW | Details | |
PRO RP 240 EC | -40 °C | 200 °C | 2.5 kW | 0.6 kW | Details | |
PRO RP 245 E | -45 °C | 200 °C | 2.5 kW | 0.8 kW | Details | |
PRO RP 245 EC | -45 °C | 200 °C | 2.5 kW | 0.8 kW | Details | |
PRO RP 250 E | -50 °C | 200 °C | 2.5 kW | 1.5 kW | Details | |
PRO RP 250 EC | -50 °C | 200 °C | 2.5 kW | 1.5 kW | Details | |
PRO RP 290 E | -90 °C | 200 °C | 2.5 kW | 0.8 kW | Details | |
PRO RP 290 EC | -90 °C | 200 °C | 2.5 kW | 0.8 kW | Details |
Device dimensions
![](/pim/_processed_/c/5/csm_lau_PRO_P_2_E_a7384524fb.png)
![](/pim/_processed_/2/e/csm_lau_PRO_RP_290_EC_339ec8ee94.png)
![](/pim/_processed_/1/3/csm_lau_PRO_RP_240_245_250_EC_392dda97a9.png)
