Features
Thermostatic bath with latest microprocessor technology. Integrated cooling system
360° turnable and detachable control panel for remote control
Timer und count-down-function
USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Low height of appliance when control panel removed
Internal LAUDA Varioflex pump with 8 selectable levels
Utilizes natural refrigerants
Large 5,7" Multi-Touch-Color display
User administration for up to 20 user
EasyUse system for simple operation of the whole unit
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Significantly enlarged accessible volume
SmartCool system for energy-saving digital cooling management including compressor on-off control
Operation with multi touch display
Data in- and export via USB
SelfCheck Assistant for system diagnosis
Fully electronic continuous controller with PID action for internal & external control
Programmer with up to 100 programs, up to 50 segments each
Bath vessel made of stainless steel (insulated, with handles and drain tap)
Hybrid cooling system: (heat removal complementary with cooling water)
Working range
Min. working temperature
-90 °C
Max. working temperature
200 °C
Temperature stability
0.01 ± K
Technical data (according to DIN 12876)
Working temperature range
-90 ... 200 °C
Operating temperature range
-90 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Heater power max.
3.6 kW
Max. power consumption
3.7 kW
Current consumption
16 A

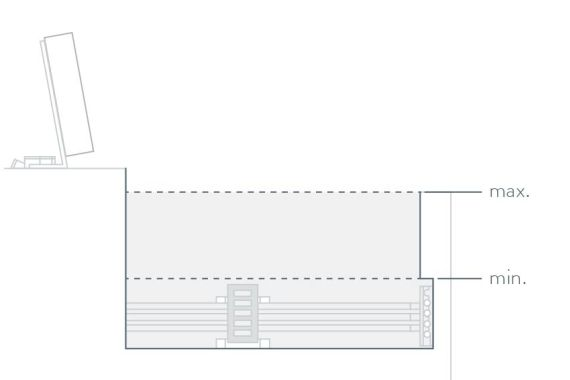

Min. / max. bath volume
12.5 / 21.0 L
Dimensions (WxDxH)
500 x 600 x 780 mm
Weight
91 kg
Power supply
230 V; 50 Hz
Power plug
Power cord with angled plug (CEE7/7)
| Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz |
|---|---|---|---|
| 20 °C | 8 | Ethanol | 0.8 kW |
| 10 °C | 8 | Ethanol | 0.71 kW |
| 0 °C | 8 | Ethanol | 0.68 kW |
| -10 °C | 8 | Ethanol | 0.65 kW |
| -20 °C | 4 | Ethanol | 0.62 kW |
| -30 °C | 4 | Ethanol | 0.61 kW |
| -40 °C | 4 | Ethanol | 0.58 kW |
| -50 °C | 4 | Ethanol | 0.52 kW |
| -60 °C | 4 | Ethanol | 0.34 kW |
| -70 °C | 4 | Ethanol | 0.18 kW |
| -80 °C | 4 | Ethanol | 0.07 kW |
| -85 °C | 4 | Ethanol | 0.03 kW |
| -90 °C | 4 | Ethanol | 0.01 kW |
