ECO E 40 G

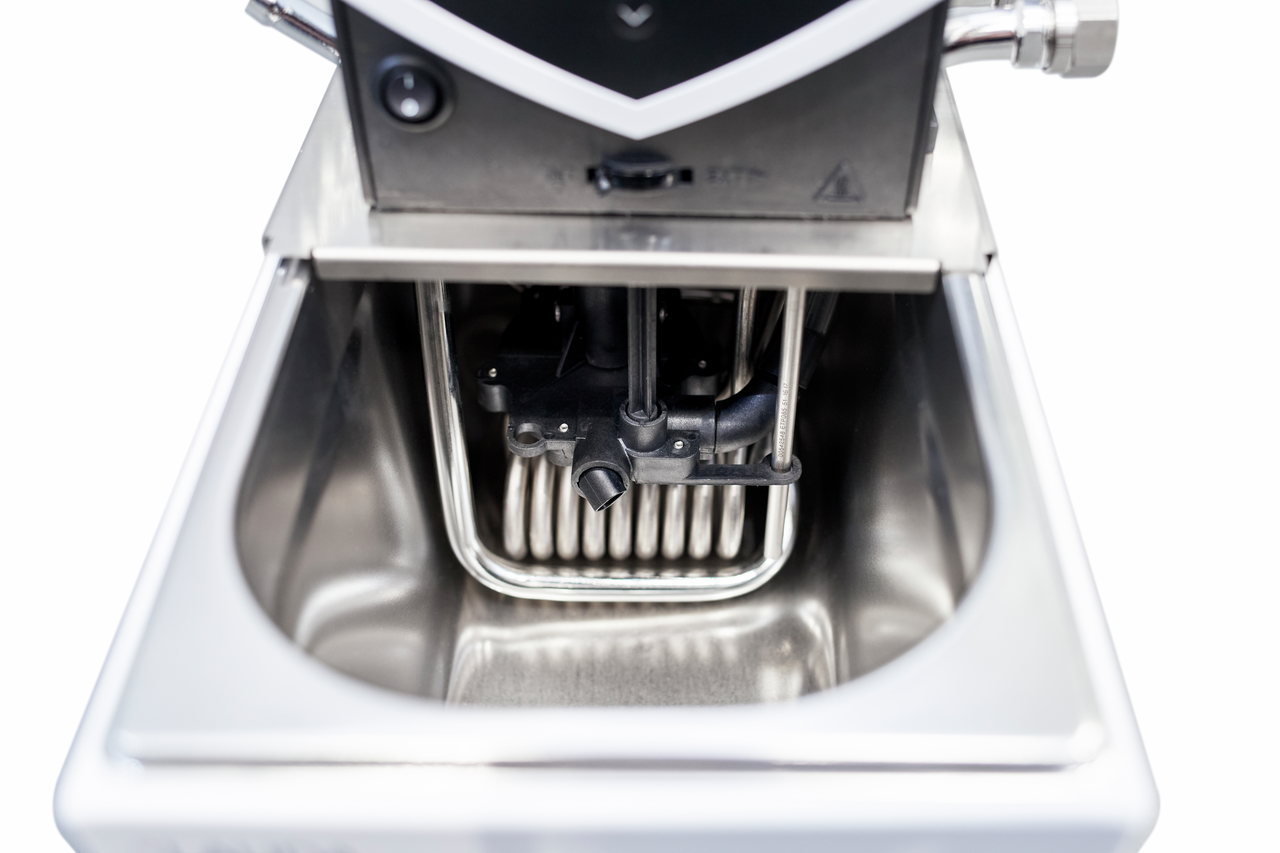

The bath thermostats come equipped with a cooling coil as standard. The E 4 is also equipped with a bath cover and pump connections for external application connections. A drain tap on the back side of the device makes changing the heat transfer liquid in the stainless steel baths easy and safe.

Order no.: L001124
Inquire about product
Back to overview Heating thermostats

Features

Thermostatic bath with latest microprocessor technology
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Bath vessel made from stainless steel with drain valve

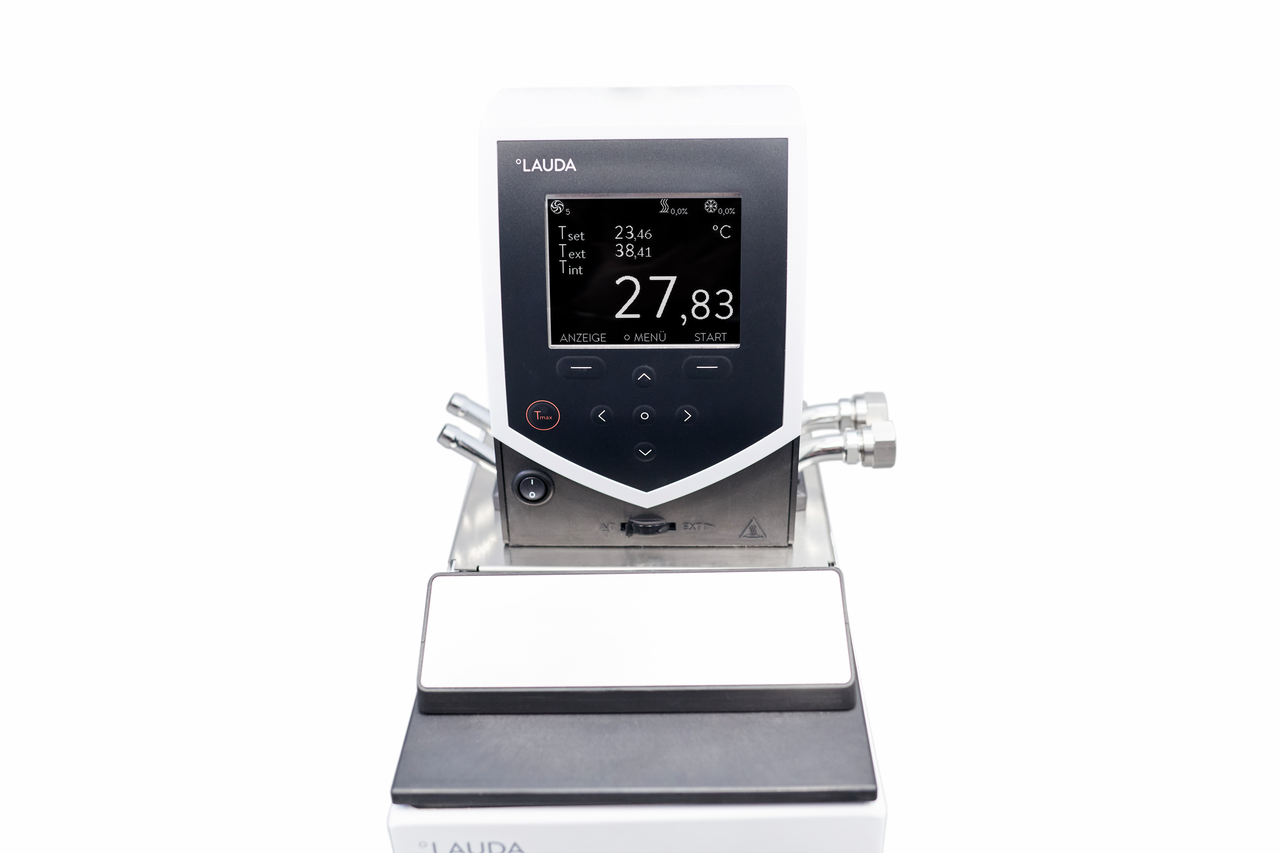

Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Cooling coil as standard
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Programmer with 150 temperature/time segments that can be separated into 5 programs

Working range

Min. working temperature

20 °C

Max. working temperature

200 °C

Temperature stability

0.01 ± K

Technical data (according to DIN 12876)

Working temperature range
20 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Heater power max.
2.6 kW
Max. power consumption
2.7 kW
Current consumption
12 A
Max. discharge pressure
0,6 bar
Max. pump flow pressure
22 L/min
Min. / max. bath volume
32.0 / 40.0 L
Dimensions (WxDxH)
350 x 803 x 428 mm
Weight
20 kg
Power supply
230 V; 50/60 Hz
Power plug
Power cord with angled plug (BS1363)
Download Data sheet ECO E 40 G

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
ECO Silver Immersion thermostats Operating instruction
English
PDF 4,49 MB Download document Download document
ECO Silver Bath thermostats Operating instruction
English
PDF 4,49 MB Download document Download document
ECO Silver
Natural refrigerant 		Bath thermostats Operating instruction
English
PDF 5,08 MB Download document Download document
ECO Gold Immersion thermostats Operating instruction
English
PDF 5,5 MB Download document Download document
ECO Gold Bath thermostats Operating instruction
English
PDF 5,5 MB Download document Download document
ECO Gold
Natural refrigerant 		Bath thermostats Operating instruction
English
PDF 6,38 MB Download document Download document
Chapter Cooling thermostats
Overall brochure 		Bath thermostats Brochure
English
PDF 2,6 MB Download document Download document
Chapter Heating thermostats
Overall brochure 		Bath thermostats Brochure
English
PDF 3,35 MB Download document Download document
Chapter Calibration thermostats
Overall brochure 		Special devices Brochure
English
PDF 1,52 MB Download document Download document

Accessories

Bath cover stainless steel, three pieces w/ handle
Pump connection set ECO
Pump connection set ECO
Pump circulation set ECO
Pump circulation set ECO
